AFL 6 Strand 50/125 Multimode OM3 Indoor Armored Plenum Fiber Optic Cable - Aqua (Per Foot)

Reference#: 68151
Item#: AF-CP006N442C01-AIAP

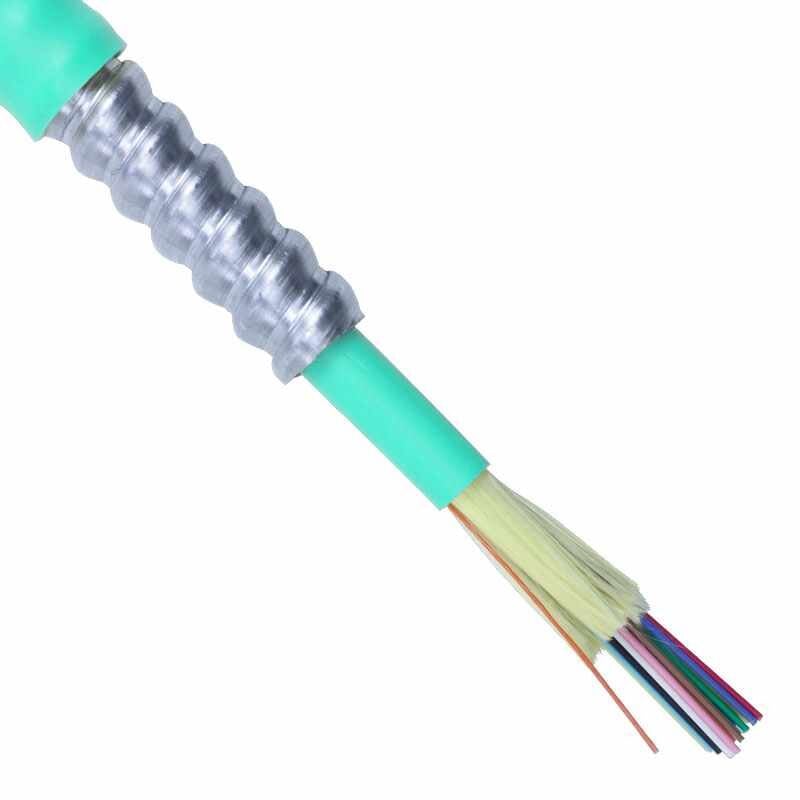

Jacketed aluminum interlocking armor provides the optimal balance of ruggedness, flexibility and low weight. The AFL 6-Strand Indoor Armored Tight-Buffered 10 Gig Plenum Aqua OM3 Fiber Optic Cable from Discount Low Voltage is a good choice inside buildings where toughness is required or where rodents are a problem. These also are ideal for manufacturing plants and harsh industrial environments as well as high-density routings in data centers. Interlocking armor can be used with other types of cable, including indoor/outdoor tight-buffered cables.
We have the tools and products if you want to do your own terminating on this cable, but Discount Low Voltage can also provide you with pre-terminated fiber cables:
·AFL 6-Strand Indoor Armored Tight-Buffered 10 Gig Plenum Aqua OM3 Fiber Optic Cable
This product qualifies for free shipping, which is available for qualified orders of $200 or more and typically takes two to five business days. Quicker shipping is also available.
In addition to taking advantage of the low armored cable prices at Discount Low Voltage, you will save even more because you can buy this cable by the foot. We have invested thousands of dollars in our cable reeling machines that can cut cable to length. If you have questions about this cable or other options, email or call our knowledgeable customer service staff for answers.

Note: CP006N442C01-AIAP replaces old item # CP006L441C01-AIAP


  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required
  • Extra protection for fiber optic cables in harsh industrial environments
  • Manufacturing Plants
  • High-density routings in data center application


Nominal Weight (lb/1000ft)
  • 89 lbs
Nominal Outer Diameter
  • 0.46 in
Minimum Bend Radius
  • Installation: 7.0 in (17.7 cm)
  • Long Term: 5.0 in (12.7 cm)

Maximum Tensile Loads

  • Installation: 440 N (100 lbs)
  • Long Term:  132 N (132 lbs)


  • Storage:  -40°C  to  +75°C
  • Installation:  0°C  to  +70°C
  • Operation:  0°C  to  +70°C
  • Meets or exceed EIA/TIA 568-B3 / Telcordia GR-409-CORE
