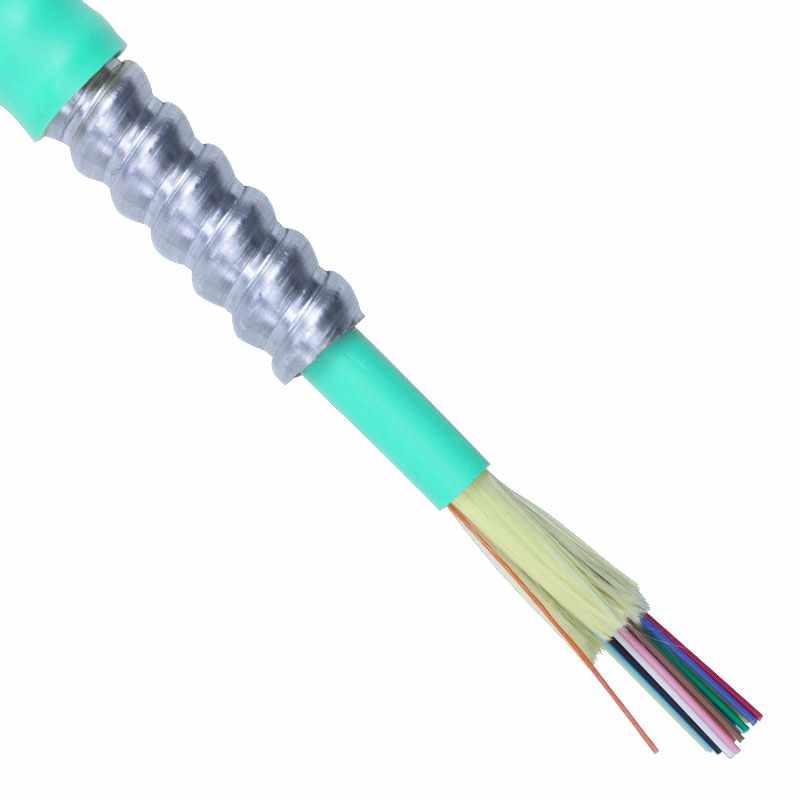

AFL 12 Strand 50/125 Multimode OM3 Indoor Armored Plenum Fiber Optic Cable - Aqua (Per Foot)

Reference#: 68159
Item#: AF-CP012N552C01-AIAP


Light in weight and flexible, but also tough and durable, AFL 12-Strand Indoor Armored Tight-Buffered 10 Gig Plenum Aqua OM3 Fiber Optic Cable is a smart solution for a variety of indoor applications demanding superior performance. Use this UL-listed interlocking armor inside buildings where rodents are an issue or extra ruggedness is needed for any other reason. It also makes sense for manufacturing plants and harsh industrial environments as well as high-density routings in data center applications.
This 12 strand multimode fiber 50 micron cable can be used with other types of trunk cables, including indoor/outdoor distribution, breakout and crevice.
Connectors and tools kits are available at if you want to do your own terminating on this cable. Our assembly house can also provide you with pre-terminated fiber cables that’s made to your specifications:
·AFL 12-Strand Indoor Armored Tight-Buffered 10 Gig Plenum Aqua OM3 Fiber Optic Cable
Get free shipping on qualified orders of $200 or more. Delivery usually takes two to five business days, but other shipping options are also available.
Besides the low armored cable prices at Discount Low Voltage, we can save you even more, thanks to our ability to cut this cable by the foot. That means you can order exactly what you want with no waste. For answers to questions about this cable or our many other options, email or call our expert customer service staff for quick answers.

Note: CP012N552C01-AIAP replaces old item # CP012L551C01-AIAP


  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required
  • Extra protection for fiber optic cables in harsh industrial environments
  • Manufacturing Plants
  • High-density routings in data center application


Nominal Weight (lb/1000ft)
  • 89 lbs
Nominal Outer Diameter
  • 0.46 in
Minimum Bend Radius
  • Installation: 7.0 in (17.7 cm)
  • Long Term: 5.0 in (12.7 cm)

Maximum Tensile Loads

  • Installation: 440 N (100 lbs)
  • Long Term:  132 N (132 lbs)


  • Storage:  -40°C  to  +75°C
  • Installation:  0°C  to  +70°C
  • Operation:  0°C  to  +70°C
  • Meets or exceed EIA/TIA 568-B3 / Telcordia GR-409-CORE
