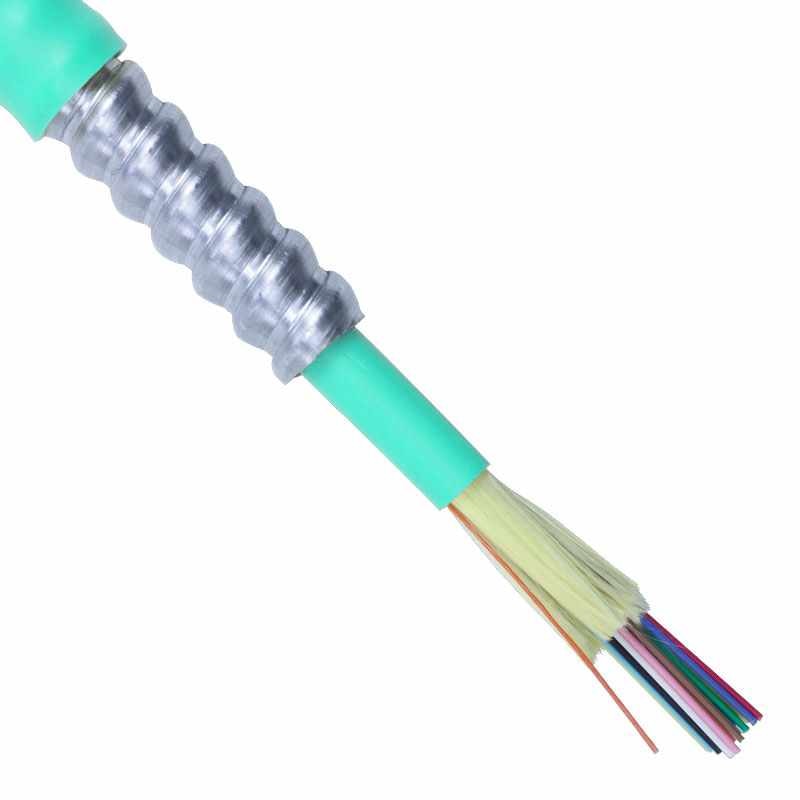

AFL 24 Strand 50/125 Multimode OM3 Indoor Armored Plenum Fiber Optic Cable - Aqua (Per Foot)

$3.10
Reference#: 68162
Item#: AF-CP024L841C01-BIF-AIAP



Description

UTILITY
The AFL 24-Strand 50/125 Multimode OM3 Indoor Armored Plenum Aqua Fiber Optic Cable from Discount Low Voltage offers the best balance of ruggedness, flexibility and low weight, thanks to its jacketed aluminum interlocking armor. This plenum fiber optic cable can be used with other types of trunk cables, including indoor-outdoor distribution, breakout and crevice.
AVAILABILITY
Use this armored fiber optic cable inside buildings for additional ruggedness and rodent resistance. It is ideal for fiber optic applications in harsh industrial environments and manufacturing plants, and is also suitable for high-density routing in data center applications.
·Nominal Outer Diameter: 0.62”
·Installation Minimum Bend Radius: 9.3”
·Long-Term Minimum Bend Radius: 5.3”
Get free shipping with qualified orders of $200 or more. Delivery usually takes two to five business days. Quicker options are also available.
VALUE
Because we have invested thousands of dollars in cable reeling machinery, Discount Low Voltage can cut this cable to the exact length you need. That means no waste and low cost. We can also pre-terminate this fiber optic cable for you in our assembly house. If you prefer to do it yourself, we offer a complete line of connectors and tool kits to do the job right.

Features

  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required
  • Extra protection for fiber optic cables in harsh industrial environments
  • Manufacturing Plants
  • High-density routings in data center application

Specification

Nominal Weight (lb/1000ft)
  • 144 lbs
Nominal Outer Diameter
  • 0.62 in
Minimum Bend Radius
  • Installation: 9.3 in (23.6 cm)
  • Long Term: 5.3 in (13.4 cm)

Maximum Tensile Loads

  • Installation: 660 N (150 lbs)
  • Long Term:  198 N (45 lbs)

Temperatures

  • Storage:  -40°C  to  +75°C
  • Installation:  0°C  to  +70°C
  • Operation:  0°C  to  +70°C
TestedMeets or exceed EIA/TIA 568-B3 / Telcordia GR-409-CORE
