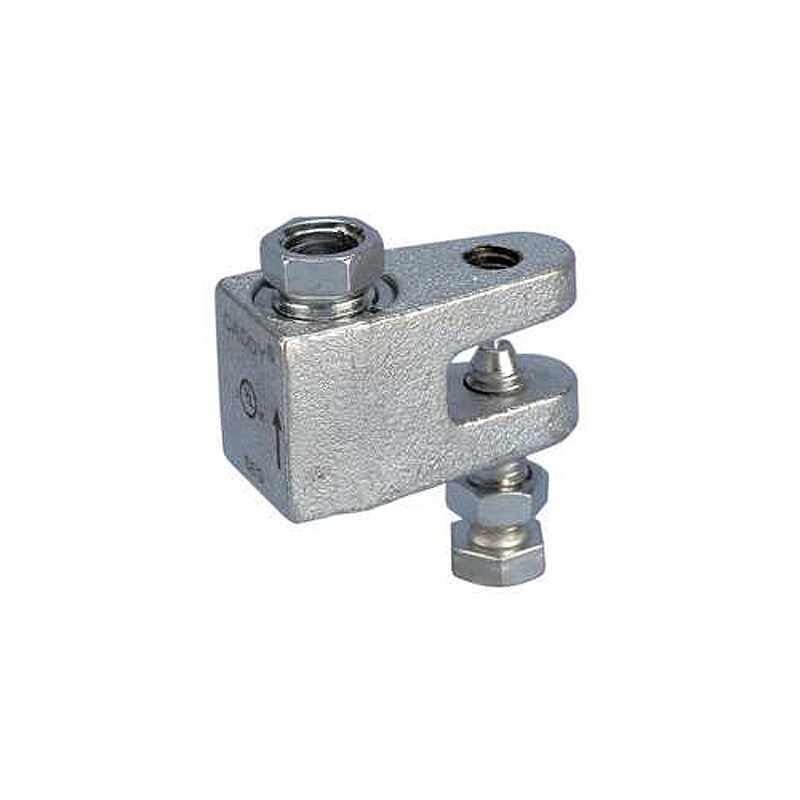

Caddy CRLB37EG Rod Lock Beam Clamp

Reference#: 70377


Caddy CRLB37EG ROD LOCK is an innovative mounting system that simplifies the installation of threaded rod. The system includes the CADDY ROD LOCK beam clamp, channel nut and an anchor screw. The CADDY ROD LOCK system features a breakthrough "push-install" design - simply push the threaded rod through the mounting hole and it instantly locks into position.

The CADDY ROD LOCK beam clamp helps to reduce the installation time of threaded rod by up to 60% when installing electrical and mechanical systems. It can be used on threaded rod with slightly damaged threads and minor burrs, helping to save time by minimizing the amount of deburring that is usually required prior to installation.

The beam clamp has a load capacity up to 500 lbs (3/8" rod) or 2200 N (M10 rod), depending on flange thickness. It is UL® 203 and UL 2239 Listed and is FM® Approved. The beam clamp also features an electro-galvanized finish for superior corrosion protection.


Works with slightly damaged threads and minor burrs on the threaded rod

Reduces installation time up to 60%

Load capacity up to 500 lbs (3/8" rod) or 2200 N (M10 rod) - depending on flange thickness

UL 203 & UL 2239 Approved

FM Approved

Electro-galvanized finish

3:1 Safety Factor
