AFL Mechanical Splices (Bag of 6)

Reference#: 68175
Item#: AF-CS004154

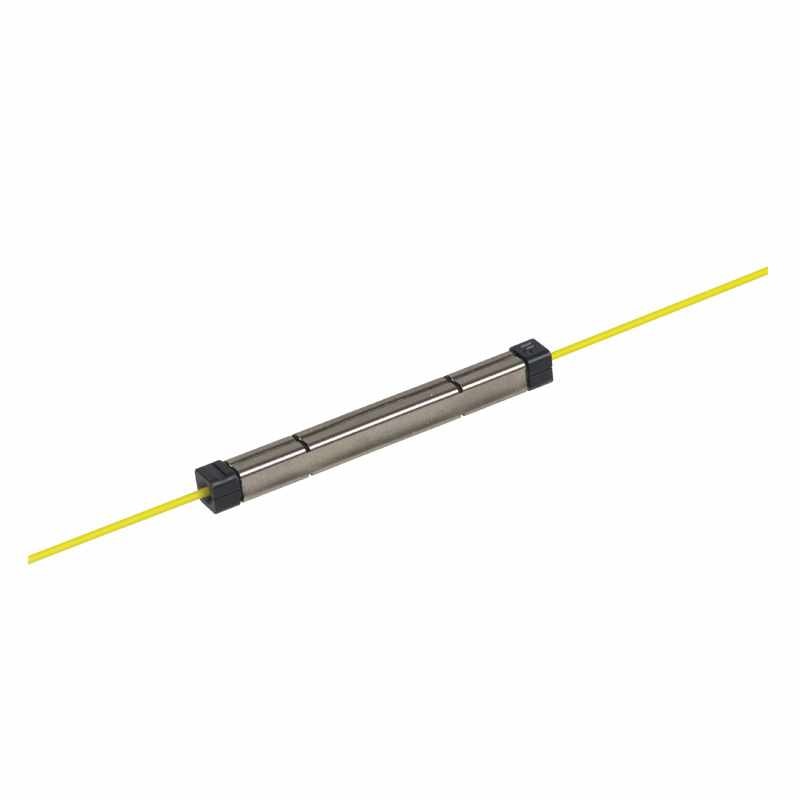

AFL Telecommunications’ CS004154 SpliceConnect is a mechanical splice that provides an in-expensive, quick alternative to mating fibers. Using V-groove technology, this splice maintains physical contact between the fibers. An assembly tool is used to ensure the fibers are mated correctly, resulting in <0.1dB insertion loss (typical for single-mode). The SpliceConnect secures both fiber and coating independently with the U-shaped sleeve, enhancing the strength against fiber twist.


• Quick splicing time
• Minimal tools
• 250µm and/or 900µm fiber capabilities
• Both fiber and coating are secured independently
• Restoration
• Premise environments
• Fiber-to-the-Subscriber (FTTx) applications
