AFL CS010975 FASTConnect Fiber Optic Tool Kit w/ CT08 Cleaver

Reference#: 68196
Item#: AF-CS010975


The AFL Fiber Optic CT08 FAST Termination Tool Kit contains everything you need for fiber preparation of 250μm or 900μm fibers, or 2mm or 3mm cordage for AFL’s pre-polished FAST connectors. The compact, flexible but rugged carrying case includes a CT08 universal multimode/single-mode cleaver with a blade that will provide up to 48,000 cleaves as well as all the industry-standard fiber optic installation and fiber optic repair tools you’ll need for fiber preparation.
Use this handy CS010975 AFL fiber termination kit for a variety of applications, including premise environments, LAN fiber to the desk environments and patch panel/wiring closets. It will also serve FTTx applications and in quick repair/replacement areas. The kit includes:
·CT08 cleaver
·Ripley fiber stripper & Kevlar sheers
·Fiber prep cleaning cloth and lint-free cloth
·FAST SC and LC assembly tools
·2.0mm, 3.0mm and 0.25mm cable clamps
·Strip/Cleave length template
·Sharpie permanent marker
·Instruction manual & tool case
Take advantage of a great price on this complete fiber-optic-cable repair kit. This item qualifies for free shipping, which usually takes two to five business days. Faster shipping methods are also available.
Enjoy Mercy’s unboxing video for more details and views of this complete repair kit. Download the tool kit spec sheet. Call us if you have questions. Order yours today!


- Field installable connectors
- Industry standard fiber preparation tools
- Compact design, flexible but rugged case
- Complete instructions provided
- Can be used in conjunction with a Fault Finder


- Premise environments
- LAN fiber to the desk environments
- Patch panel/wiring closets
- FTTX applications
- Quick repair/replacement areas

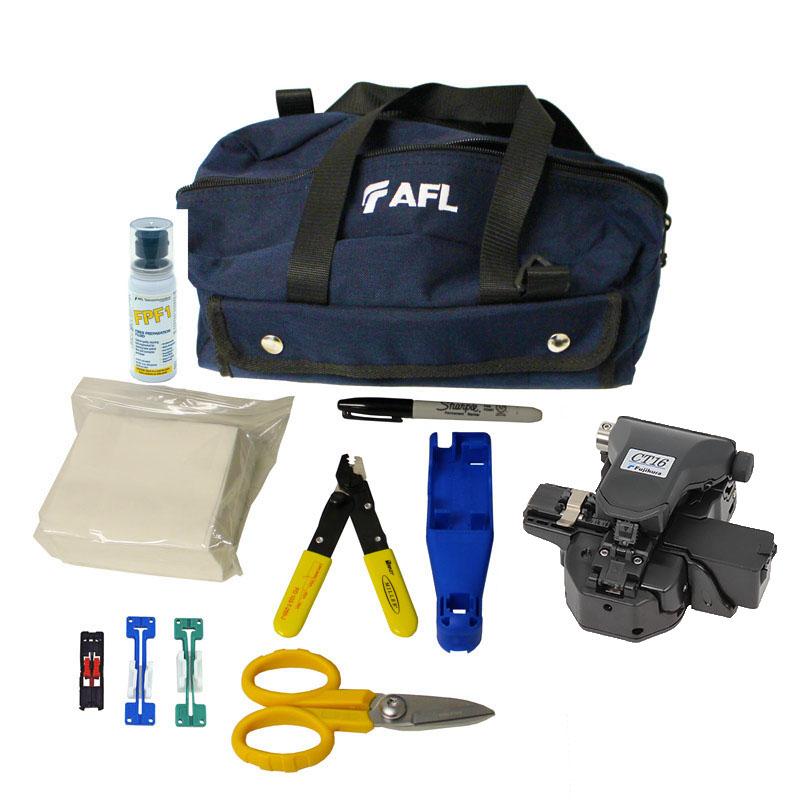

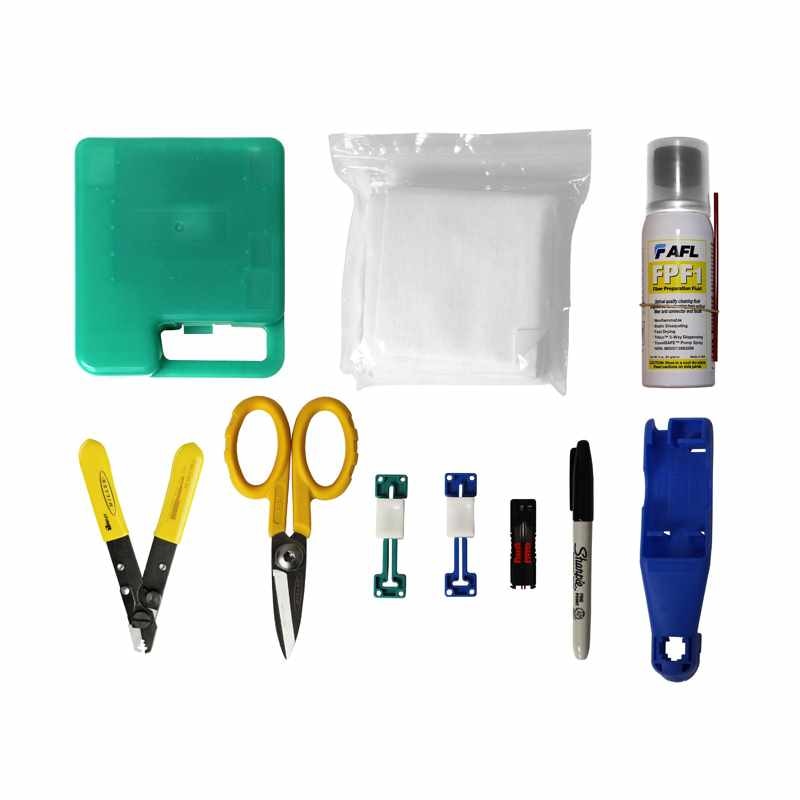

Kit Includes:
- CT08 Cleaver
- Fiber Stripper (Ripley FO103-T-250-J)
- Kevlar Shears (KS-1)
- Fiber Prep Cleaning Fluid (FPF03M)
- Lint Free Cloth (LFC301)
- Sharpie permanent marker
- Fast SC Assembly Tool
- Fast LC Assembly Tool
- Cable Clamp 2.0mm
- Cable Clamp 3.0mm
- Cable Clamp 0.25mm
- Strip/Cleave Length Template
- Installation and Assembly Instruction Manual
- Fast Connector Tool Case

Cleaver Specs:
- Applicable Fiber: Conventional silica optical fiber
- Fiber Count: Single fiber
- Coating Diameter: 0.25 to 0.9 mm
- Cladding Diameter: 125 µm
- Cleave Length: 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders
- Cleave Angle Capability: Typical 0.5˚
- Dimensions: 110(W) x 95(D)x 45(H) mm
- Weight: 185 g (0.41 lbs)
- Blade Lifetime: 48,000 fibers (1,000 fibers x 3 heights x 16 positions)
