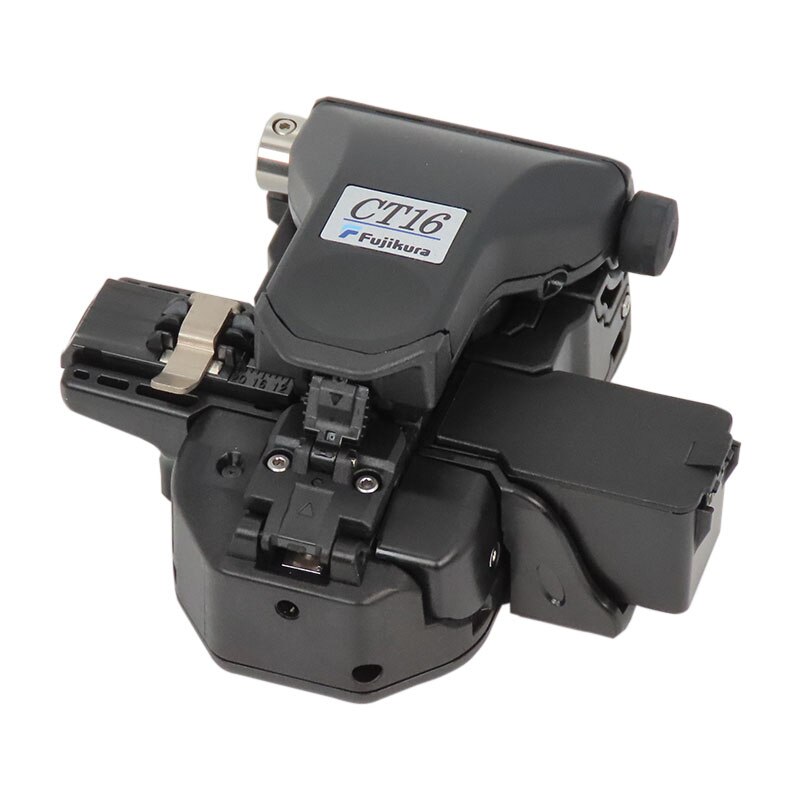

AFL Fujikura CT16 SM/MM Fiber Cleaver w/ Scrap Collector
Item#: AF-CT16
Description

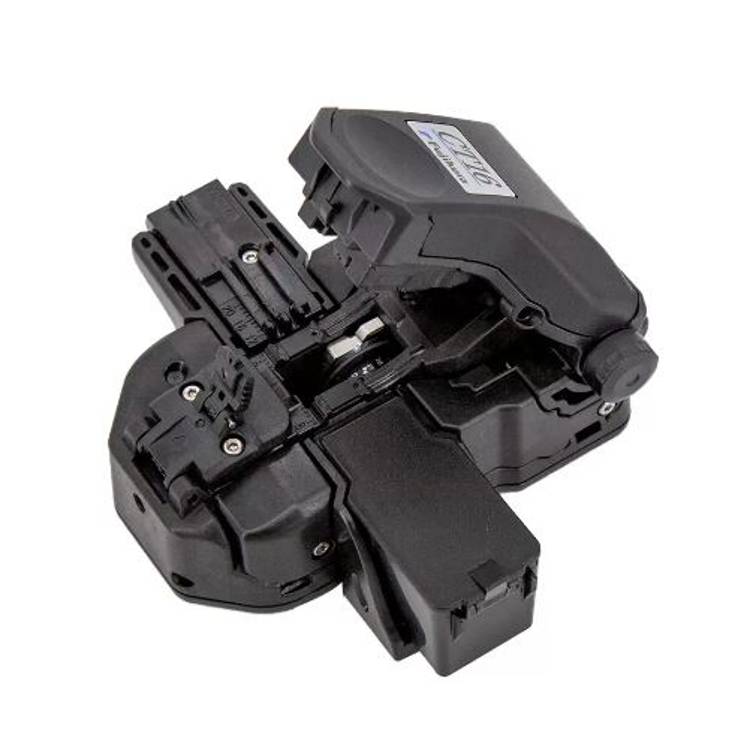

The Fujikura CT16 fiber cleaver was designed for FTTH or other space constrained applications where ergonomics and durability are key. This compact cleaver can be operated ambidextrously, and features a unique fiber adapter, allowing users to cleave two bare fibers simultaneously when paired with the dual fiber stripper, the SS-05. The scrap collector and fiber adapter side can be swapped by the user for left or right-handed preference, or as environmental constraints dictate. Furthermore, the thumbwheel on the bottom of the cleaver is utilized for blade rotations as opposed to previous tedious processes to rotate a cleaver blade. The top lever opens past vertical allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade is retracted when the top lever is opened and the blade activates to score the fiber when it is closed, making this a true one-step cleaver. Like its predecessor, this cleaver can withstand a 30” drop from any of six different orientations and still maintain factory specified cleave angle performance. The cleaver blade and fiber clamping mechanisms are easy to replace in the field, mitigating the need to send this cleaver in for service.
Features
• Dual fiber adapter plate for single or two fiber cleaving
• Ambidextrous operation available
• Field replaceable fiber clamp pads and cleaver blade
• Shock resistant for drops up to 30" in any of six different orientations
• Compact form factor and tool-less blade rotations
Specification
Applicable Fiber:
Fiber type - Single-mode optical fiber / Multimode optical fiber
Fiber count - 2 single fibers
Cladding diameter - Approx. 125 μm
Applicable Coating:
Adapter plate - AD-16A: (With Flap Holder Sold Separately) Max 900 μm coating diameter single fiber or 250 μm coating diameter for two fibers
AD-16B: Max. 3 mm jacket diameter
Fiber holders - FH-60 and FH-70 series – coating diameter dictated by specific fiber holder
Cleave Length:
Adapter plate - AD-16A: 5 – 20 mm *1
AD-16B: Coating diameter – 250 μm or less: 5-20 mm*1 251 μm-900 μm: 10-20 mm 901 μm-3 mm: 14-20 mm
Fiber holder - Approx. 10 mm
Cleave Angle:*2
Single fiber - Avg. 0.3 to 0.9 degrees
Blade Life:*3
Approx. 48,000 fiber cleaves
Environmental Condition:
Temperature - Operate: -10 to 50°C
Storage: -40 to 80°C
Humidity - Operate: 0 to 95%RH non-condensing
Storage: 0 to 95%RH non-condensing
Other Features:
Blade rotation - Manual dial underneath cleaver
Replaceable items - Cleaver blade and fiber clamp pads
Fiber adapter base and scrap collector - Can be swapped position for ambidextrous operation
Cleave count Up to two individual bare fibers
