Corning 24 Strand 50/125 Multimode OM3 Indoor Armored Riser Fiber Optic Cable - Aqua (Per Foot)

$5.20
Reference#: 69141
Item#: COR-024T81-33180-A1



Description

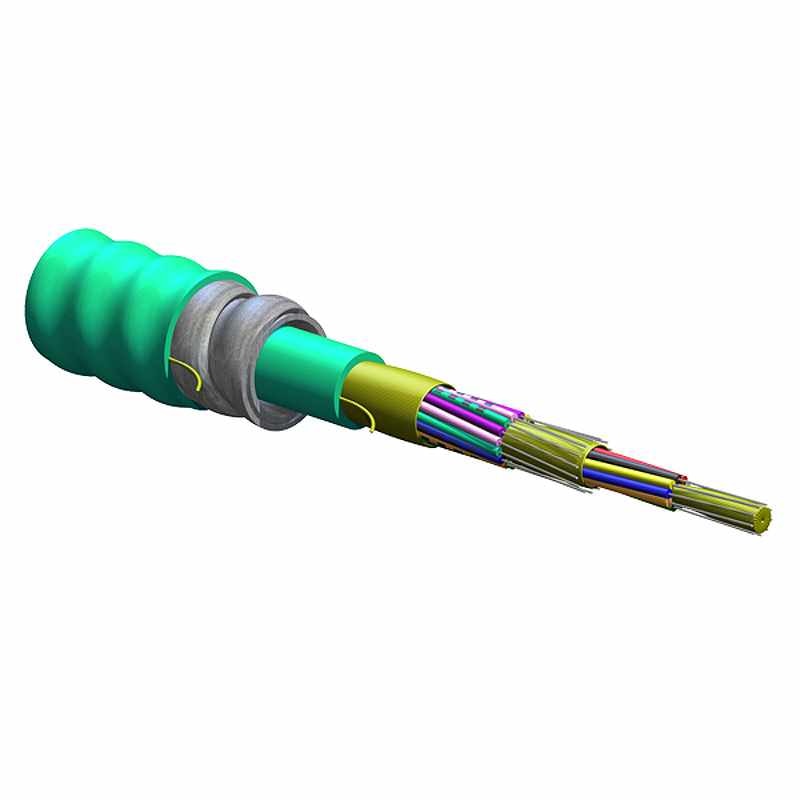

Corning Cable Systems MIC® Interlocking Armored Riser Cables are designed for use in intrabuilding backbone and horizontal installations. They use individually jacketed TBII® Buffered Fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one-step installation and over seven times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.

Features

Flexible, interlocking armor design
  • Seven times crush protection compared to unarmored cables
TBII® Buffered Fibers
  • Easy, consistent stripping
Flame-retardant jacket
  • Rugged and durable

Specification

Environment
  • Indoor
Application
  • General Purpose Horizontal, Vertical Riser
Cable Type
  • Tight-Buffered
Product Type
  • Interlocking armor
Flame Rating
  • Riser (OFCR)
Fiber Category
  • 50 µm MM (OM3)
