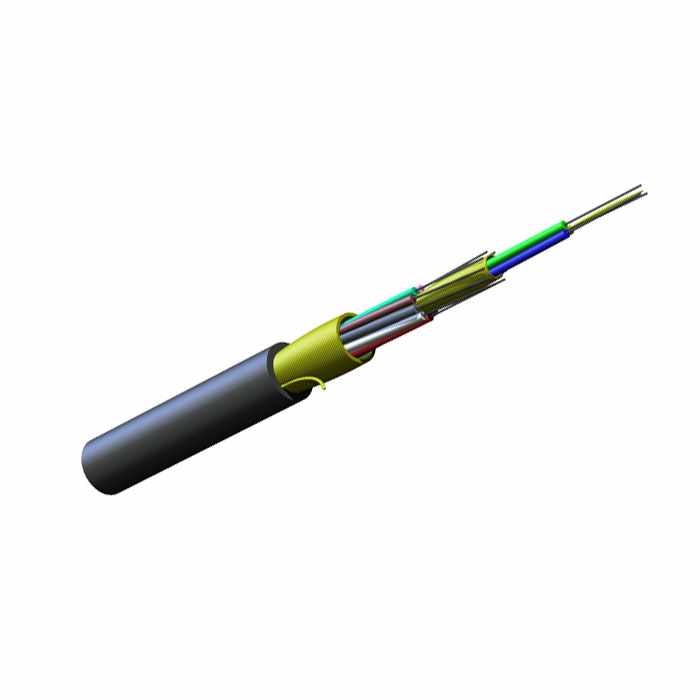

Corning 12 Strand Singlemode Indoor/Outdoor Riser Fiber Optic Cable - Black (Per Foot)

$0.95
Reference#: 69081
Item#: COR-012E8F-31131-29



Description

UTILITY
Corning Cable Systems FREEDM® One Riser Cables are flame-retardant, UV-resistant indoor/outdoor cables designed for aerial, duct and direct-buried applications. It works in both vertical riser and general horizontal applications, from running up buildings and poles to along office walls. Because the cable meets indoor requirements as well as outdoor, there is no need for a transition splice when entering the building. The tight-buffered construction of the 12-fiber optical cable facilitates easier termination for low-fiber-count applications in the local area network (LAN) and eliminates the need for fan-out kits.
The design of this 12-strand singlemode black cable features TIA-598 color-coded 900 µm TBII Buffered Fibers for easy identification, consistent stripping and direct termination. The cable design meets ICEA S-104-696 test criteria and is also OFNR and FT-4 listed for riser and general purpose use. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative water-blocking technology is ideal for OSP applications. It has a jacket that is built to outdoor UV and indoor flame resistance specifications. Each of the fibers are color-coded so you can easily identify them when terminating your cable.
AVAILABILITY
Order Corning Singlemode 9/125 Indoor/Outdoor Fiber Cable if you are installing a broadband network that has small- mid-size traffic numbers, but covers a large distance. This cable typically ships within two days with a two to five business day transit. Their cables are available from Discount Low Voltage in 50 µm, 62.5 µm and hybrid versions as well as singlemode, which can be viewed on our Fiber Optic Cable page. For more all-around cables for networks of all sizes, visit the Indoor/Outdoor Singlemode Fiber page.
VALUE
With its premium construction, fast data speeds and versatile usage options, FREEDM One 12-Strand Riser Fiber Optic Cable offers some of the best performance and value. We sell Corning cables per-foot, using our advanced cable machinery to cut the length you request so there’s no waste.
RESOURCES
We confidently stand behind each purchase with a 100 percent satisfaction guarantee and free expert service via toll-free phone, email and numerous videos and articles that are always available on the DLV blog. Below, the manufacturer datasheet and our Product Quick View video tell you what you most need to know about this 12-strand cable.

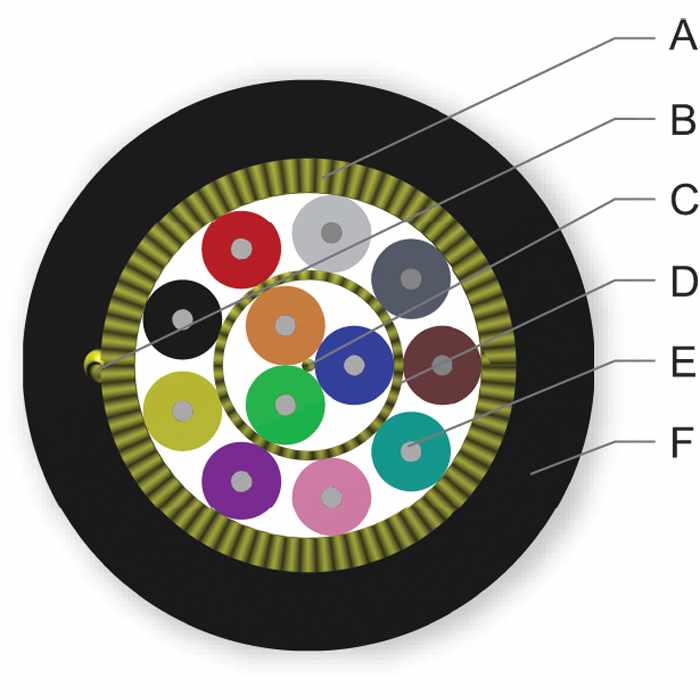

(Picture 2) Legend:
A: Dielectric Strength Yarns
B: Ripcord
C: Dielectric Strength Yarns
D: Dielectric Strength Yarns
E: Tight-Buffered Fiber
F: FR / UV-Resistant Outer Jacket

Features

Waterblocking Technology
  • OSP (Outdoor) Applications
Small Diameter and Bend Radius
  • Easy Installation in space-constrained areas
Color-Coded Fibers
  • Quick and Easy Identification

UV-Resistant, Flame retardant jacket

  • Rugged, Durable and easy to strip

Specification

Nominal Weight (lb/1000 ft)
  • 24
Nominal Outer Diameter
  • 0.26 in
Minimum Bend Radius
  • Installation:  98 mm (3.8 in)
  • Operation:  33 mm (1.3 in)
Maximum Tensile Loads
  • Short-Term:  675 N (150 lbf)
  • Long-Term:  200 N (45 lbf)
Application
  • Aerial, Direct Burial, Duct, General Purpose Horizontal, (Vertical Riser)
Flame Rating
  • Riser (OFNR)
Temperatures:
  • Storage: -40° to +70°C (-40° to +158°F)
  • Installation: -10° to +60°C (+14° to +140°F)
  • Operation: -40° to +70°C (-40° to +158°F)
