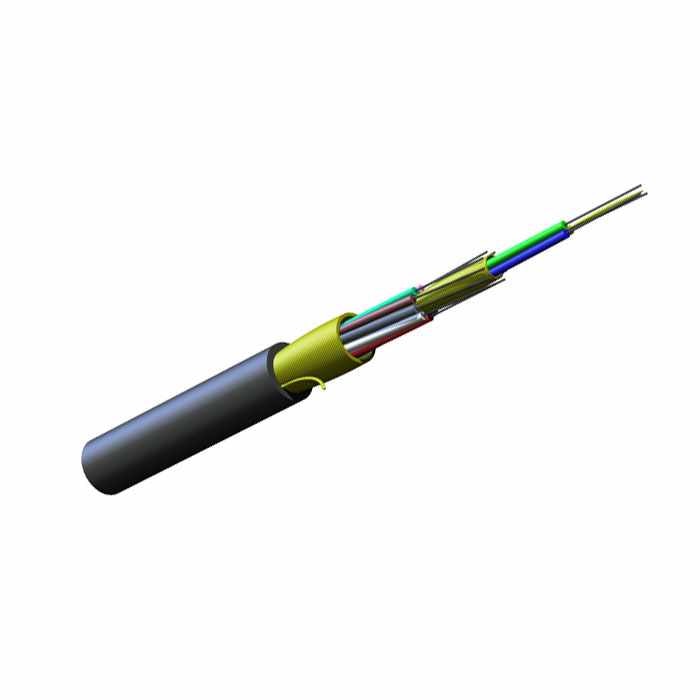

Corning 24 Strand Singlemode Indoor/Outdoor Riser Fiber Optic Cable - Black (Per Foot)

$1.98
Reference#: 69121
Item#: COR-024E8F-31131-29



Description

Corning Cable Systems FREEDOM One Riser Cables are flame-retardant, UV-resistant, indoor/outdoor cables designed for aerial, duct and direct-buried applications with no need for a transition splice when entering the building. Available in fiber counts of six, 12, 18 and 24 fibers, the tight-buffered construction facilitates easier termination for low-fiber-count applications in the local area network (LAN) and eliminates need for fan-out kits.

The design features TIA-598 color-coded 900 µm TBII Buffered Fibers for easy identification, consistent stripping and direct termination. Available in 50 µm, 62.5 µm, single-mode and hybrid versions, the cable design meets ICEA S-104-696 test criteria and is also OFNR and FT-4 listed for riser and general purpose use. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative water-blocking technology is ideal for OSP applications.

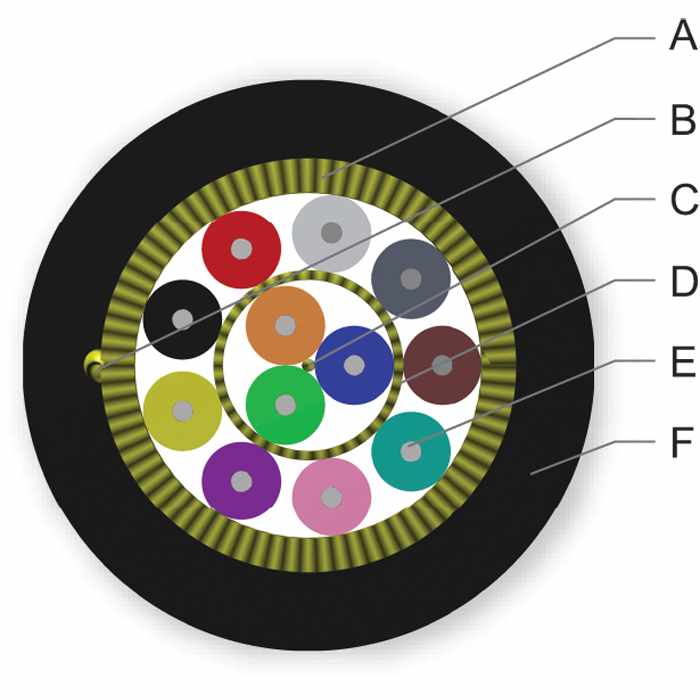

(Picture 2) Legend:
A: Dielectric Strength Yarns
B: Ripcord
C: Dielectric Strength Yarns
D: Dielectric Strength Yarns
E: Tight-Buffered Fiber
F: FR / UV-Resistant Outer Jacket

Features

Water-blocking technology for outside plant applications

Small diameter and bend radius for easy installation in space constrained areas

Color coded for easy identification and consistent stripping

UV resistant, flame-retardant jacket – rugged, durable and easy to strip

This cable is PVC rated and sold per foot

Specification

Nominal Weight (lb/1000 ft)

  • 40

Nominal Outer Diameter

  • 0.31 in

Minimum Bend Radius

  • Installation: 120 mm (4.7 in)
  • Operation:  40mm (1.6 in)

Maximum Tensile Loads

  • Short-Term:  1350 N (300 lbf)
  • Long-Term: 400 N (90 lbf)

Temperatures

  • Storage:  -40 °C to 70 °C  (-40 °F to 158 °F)
  • Installation:  -10 °C to 60 °C  (14 °F to 140 °F)
  • Operation:  -40 °C to 70 °C  (-40 °F to 158 °F)

Approval and Listings

  • National Electrical Code® (NEC®) OFNR, FT-4

Applications

  • Aerial, Direct Buried, Duct, General Purpose Horizontal (Vertical Riser)

Design and Test Criteria

  • ICEA S-104-696
