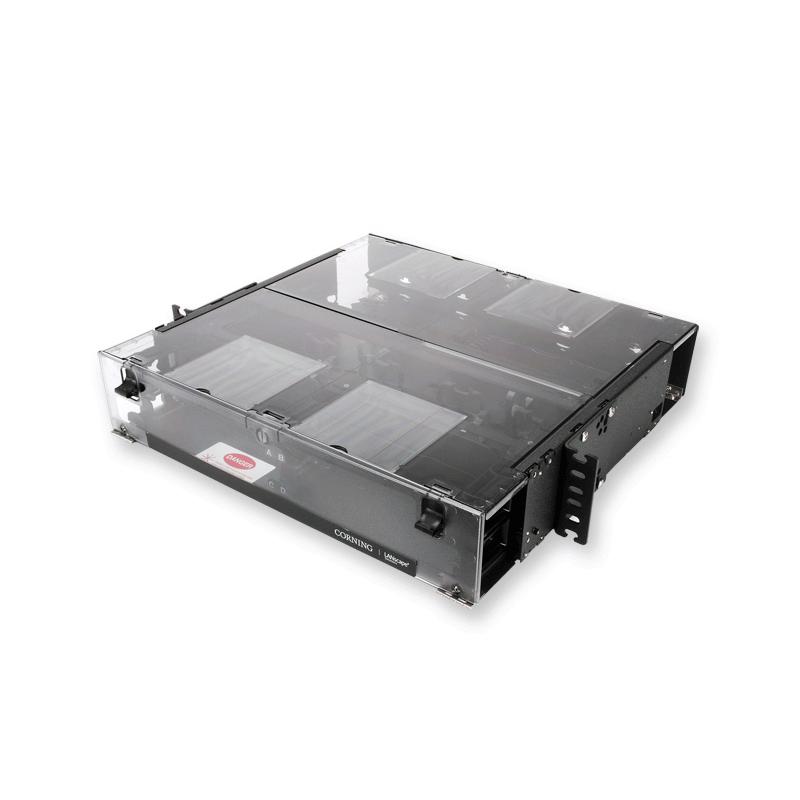

Corning 2U Closet Connector Housing accepts up to 4 CCH panels
$318.00
Reference#: 69188
Item#: COR-CCH-02U
Item#: COR-CCH-02U
Description
Corning Cable Systems Closet Connector Housings (CCHs) provide interconnect or cross-connect capabilities between the outside plant, riser or distribution cables and the opto-electronics. The housings accept CCH connector panels. The units are designed for rack mounting in 19 in (48 cm) racks or optional 23-in (58 cm) equipment racks (1.75-in EIA hole spacing).
Closet Connector Housings can be ordered with connector panels for multimode and single-mode applications. Documentation labels are provided and components can be added as needed to construct a fiber distribution frame for any application. The units include multiple locations for jumper egress and come with the universal cable clamp for cable strain-relief.
Closet Connector Housings can be ordered with connector panels for multimode and single-mode applications. Documentation labels are provided and components can be added as needed to construct a fiber distribution frame for any application. The units include multiple locations for jumper egress and come with the universal cable clamp for cable strain-relief.
Features
Interconnect and cross-connect capability Ideal for field connectorization
Field-installed lock kit for security
Quality tested - Meets ANSI/TIA/EIA-568A and 606
Mounting provisions for buffer tube fan-out kits - Ideal for field connectorization
Housings have sliding tray (01U and 02U) or open top at front (03U and 04U)
Field-installed lock kit for security
Quality tested - Meets ANSI/TIA/EIA-568A and 606
Mounting provisions for buffer tube fan-out kits - Ideal for field connectorization
Housings have sliding tray (01U and 02U) or open top at front (03U and 04U)
