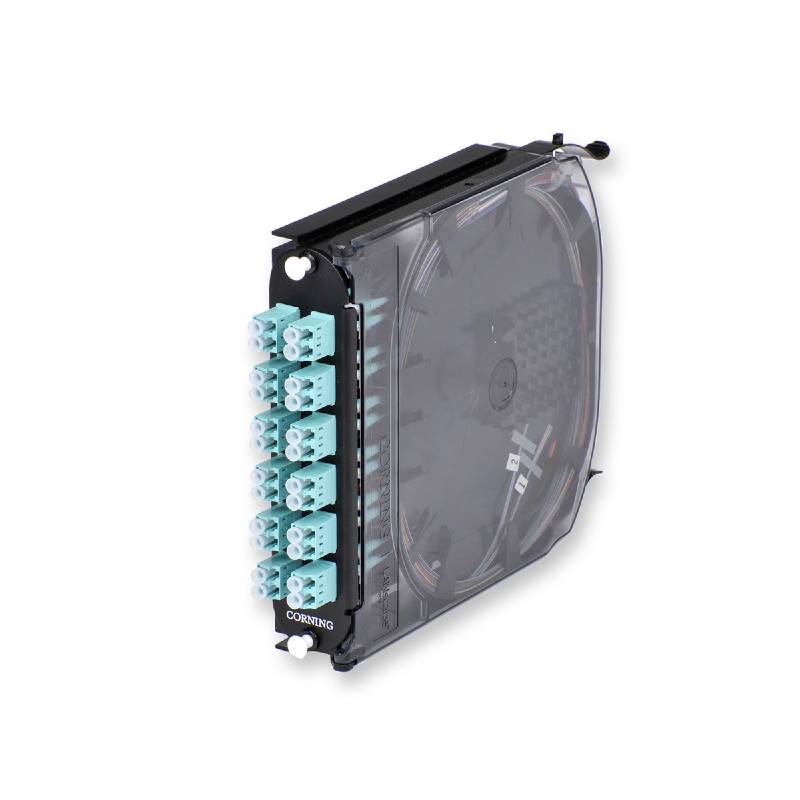

Corning 24 Fiber CCH Pigtail Splice Cassette, LC, PC, Duplex, 50 µm (OM3), Single-Fiber (250 µm)

$781.27
Reference#: 69212
Item#: COR-CCH-CS24-E4-P00TE



Description

CCH Pigtail Splice Cassettes enable faster field splicing and easy modular management of connectorization within the housing.

The CCH Pigtail Splice Cassettes are pre-loaded and pre -routed for quick fusion splicing of either individual or ribbon fiber pigtails, utilizing the same space-saving platform as the standard CCH Splice Cassette.

The pre-routed Pigtail Cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 3m pigtail assembly with all pre-existing CCH Panel connector options. The Pigtail Cassettes have 900 µm at the connector panel for added durability
and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.

With the Pigtail Cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as need-ed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other
fibers in the housing.


Each cassette is shipped the pigtail CCH Panel of choice, 1 rail for use with CCH -01U/2U/3U housings, and 2 rails used with CCH -04U housings. Grommets and cable ties for additional strain relief, and protective braided tubing for incoming cable are also included. Splicing cassettes ship with 12 single fiber heat -shrink splice protectors.

Features

Manage cable slack for a CCH Panel in a modular footprint
  • Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
Includes everything needed to convert a CCH hous-ing for modular routing and/or splicing
  • Easy ordering and field installation
Modular splice capability
  • Manage all splices inside the housing
900um jacket at the connector panel
  • Added fiber protection at the connector
Colored 250um at splice point
  • Easy to identify and prep colored 250um for fast and easy splicing
Pre-prepped Splice Cassette
  • Saves time in the field with a ready to splice product

Specification

Application

  • Enterprise Networks, Data Center

Product Type

  • Rack-Mountable Hardware

Mounting Type

  • CCH Housings, Wall-Mountable

Cable Type

  • Single fiber (250 µm)

Fiber Category

  • 50 µm MM (OM3)

Technology

  • Fusion Splice
