12 port RJ45 5e Wall-Mount Patch Panel

Reference#: 69432
Item#: DLV-PP-512M-BK

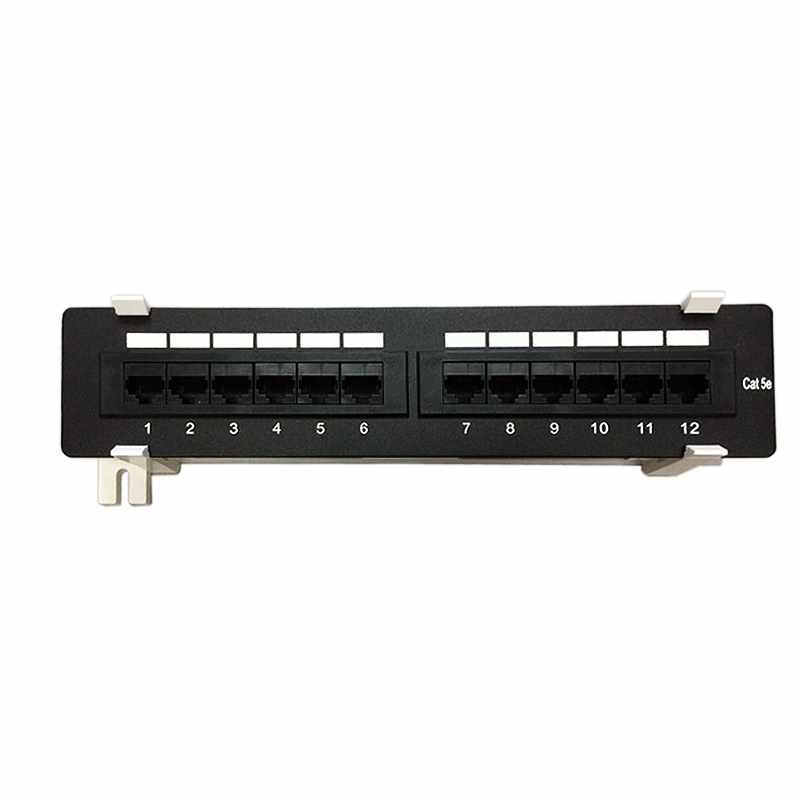

12 Port Cat5e Wall Mount Patch Panel

This Cat5e 12 port patch panel is designed for small voice and data installations. Includes two 6 port Cat5e non-keyed jack modules mounted on a GB89D mounting bracket. Color Coded for 568A or 568B. See "Related Items" below for our contractor preferred patch panel.


12 port Wall mounted Cat5e component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.

Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals on the 12 port panel

Exceeds ANSI/TIA/EIA-568-B.2 Cat5e connecting hardware requirements

Engineering to provide 110 IDC termination reducing installation time

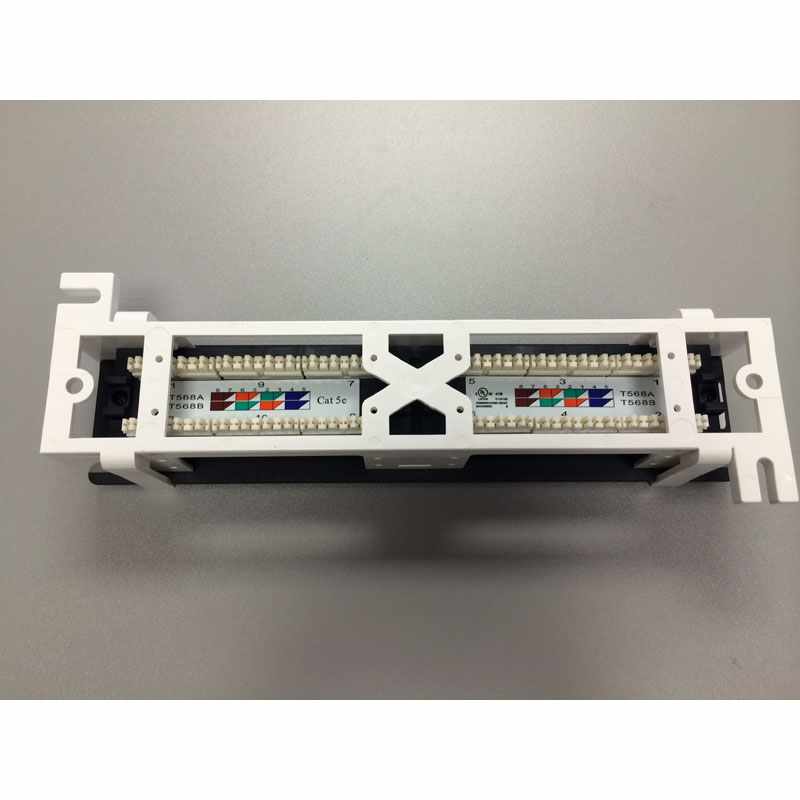

Includes both TIA-568A and TIA-568B color wiring diagrams on the back of this 12 port Cat5e patch panel

Backwards compatible to all lower rated category components

12 port 5e panel installation instructions included

Exceeds TIA/EIA Cat5e standards. Panel includes mounting screws. Flexible solution suitable for use as a consolidation point.


- 3.32" W x 10" H x 2.35" D
- Comes with removable 89U universal mounting bracket
- Includes mounting screws
