CADDY 0.215" Smooth Rod with Shot-Fire Bracket, 48" Length

$6.28
Reference#: 76673
Item#: ERICO-DR4SF48



Description

CADDY DR4SF48 Smooth rod with shot-fire brackets are great for quick and easy attachments to concrete, steel or composite metal decking. The DR4SF48 integrated pin installs easily using powder-actuated or single-shot gas-actuated tools. The DR4SF48 is 0.215" in diameter and 48" in length. They come ready to use, right out of the box and are sold individually (full box quantity is 25 pieces).

Features

  • Quickly and easily attaches to concrete, steel or composite metal decking
  • Integrated pin installs easily using powder-actuated or single-shot gas-actuated tools
  • Works with most standard CADDY spring steel fasteners designed for rod attachments
  • Rod is rigid and does not require secondary attachment to ceiling grid per NEC 300.11
  • Stocked inventory - available when you need it
  • Includes pre-assembled end-cap
  • Specialized packaging simplifies material handling and minimizes sorting
  • Rods are ready to install out of the box

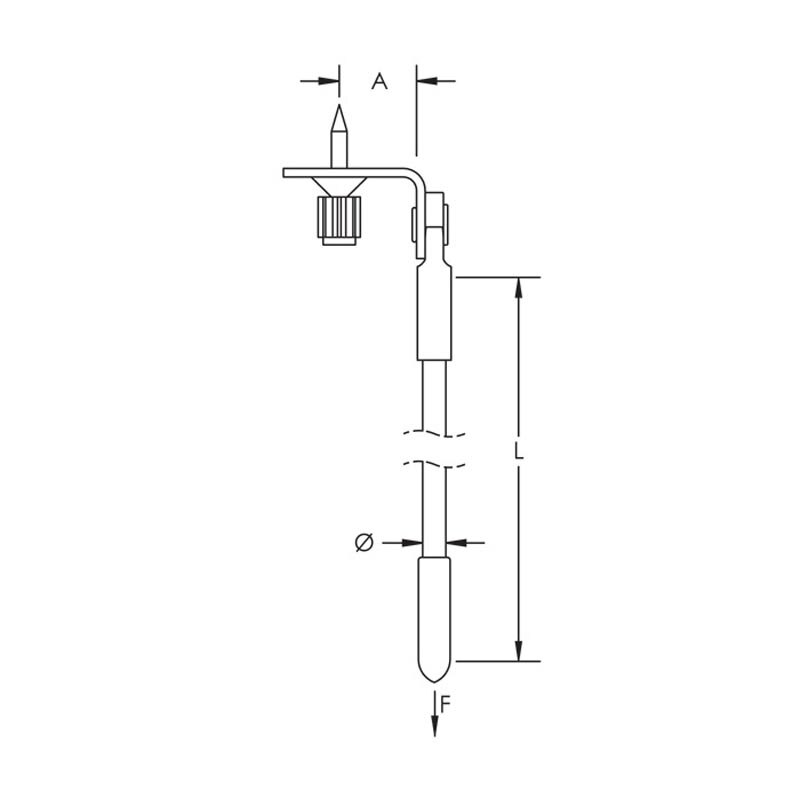

Specification

Material
  • Steel

Finish
  • Electrogalvanized

Length (L)
  • 48"

Diameter (Ø)
  • 0.215"

A
  • 3/4"

Static Load (F)
  • 95 lb

Certifications
  • cULus

Standard Packaging Quantity
  • 25 pc

UPC
  • 78285690924
