OCC 6 Strand 50/125 Multimode OM4 Indoor/Outdoor Riser Fiber Optic Cable - Aqua

$1.30
Reference#: 77941
Item#: OCC-DX006DALE9QR



Description

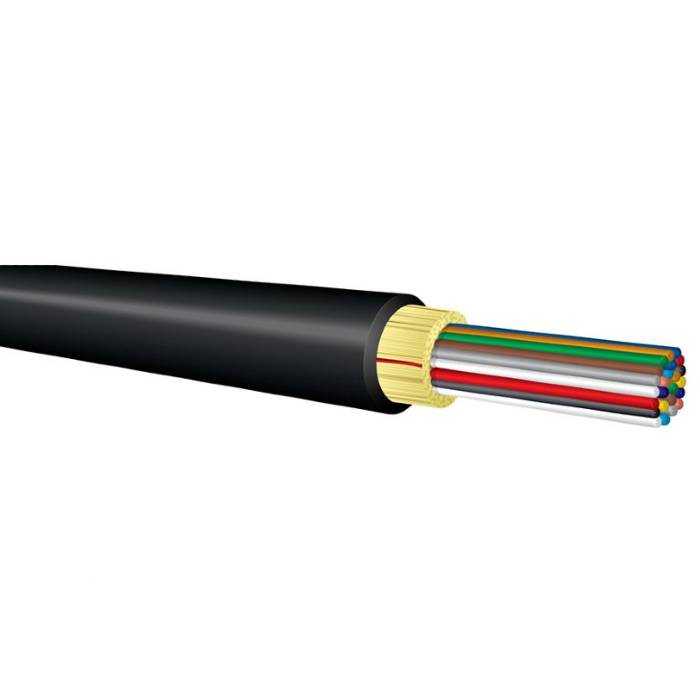

The DX006DALE9QR is a high-performance 6-strand, 50/125 multimode OM4 fiber optic cable designed for indoor/outdoor applications where space, durability, and ease of installation are critical. Its tight-buffered design and advanced materials make it a reliable solution for intra-building backbone and inter-building campus fiber optic connections. This cable is ideal for applications that require a single termination point with multiple fibers, such as data centers, enterprise networks, and campus-wide communications.

Features

  • High-performance components and construction
  • Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus-resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor

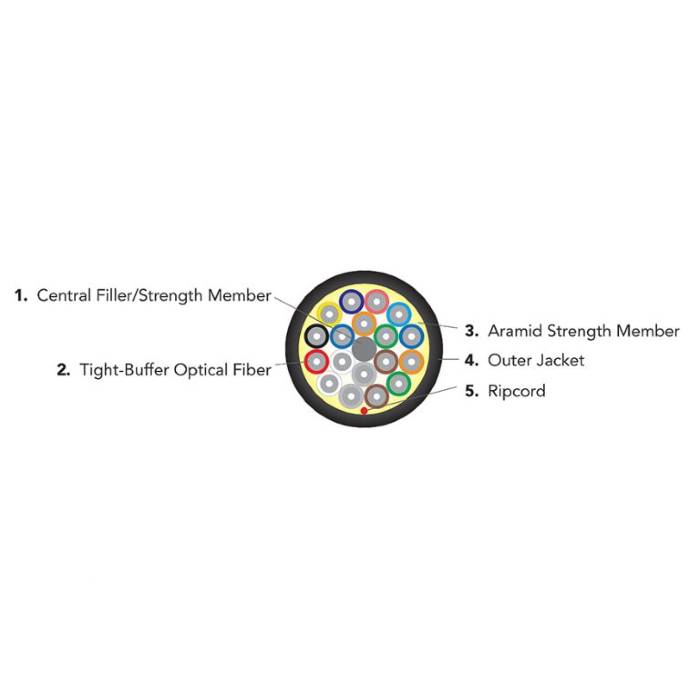

  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
  • High strength-to-weight ratio
  • Fiber configuration is smaller and lighter than comparable sub-grouped cables made by others: ideal for installation in areas with limited space or tight bends
  • Can be armored for additional protection in direct burial and aerial installations

    • Specification

    Operating Temperature: -40°C to +85°C
    Storage Temperature: -55°C to +85°C
    Install Temperature: -10°C to +60°C
    Flame Retardancy: UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
    Crush Resist: 1800 N/cm
    Impact Resist: 1500 impacts
    Flex Resist: 2000 cycles
    Jacket Type: D
