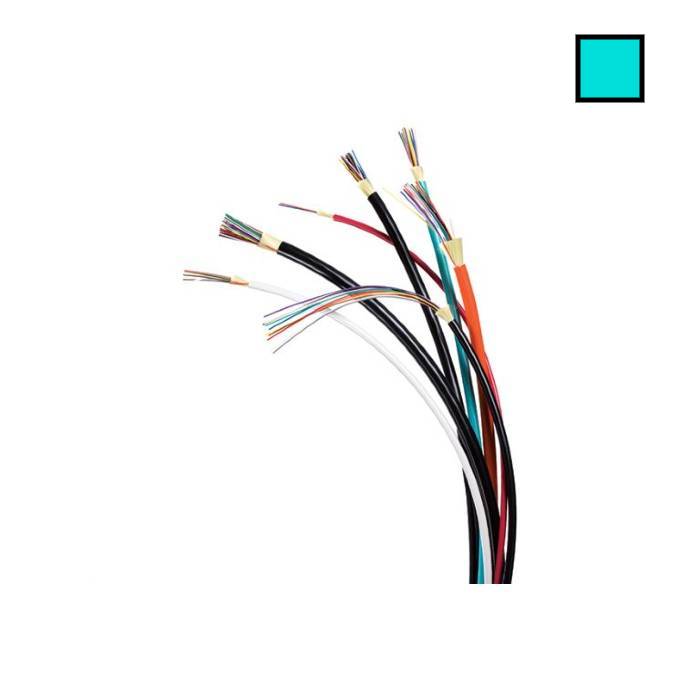

OCC 12 Strand Multimode 50/125 OM4 Indoor/Outdoor Riser Fiber Optic Cable - Aqua

$2.27
Reference#: 77943
Item#: OCC-DX012DALE9QR



Description

The DX012DALE9QR is a high-performance, 12-fiber, 50/125 OM4 multimode fiber optic cable designed for both indoor and outdoor use. This cable features a tight-buffered construction, which makes it suitable for a wide range of network and communications applications, from intra-building backbones to inter-building campus networks. The OM3 fiber supports high-bandwidth transmission, making it ideal for high-speed data transmission in Ethernet, 10G Ethernet, and other fiber-optic networks. Its unique combination of indoor/outdoor design, durability, and cost-effective installation makes it an excellent choice for a variety of commercial, industrial, and data center environments.

Features

  • High-performance components and construction
  • Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus-resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor

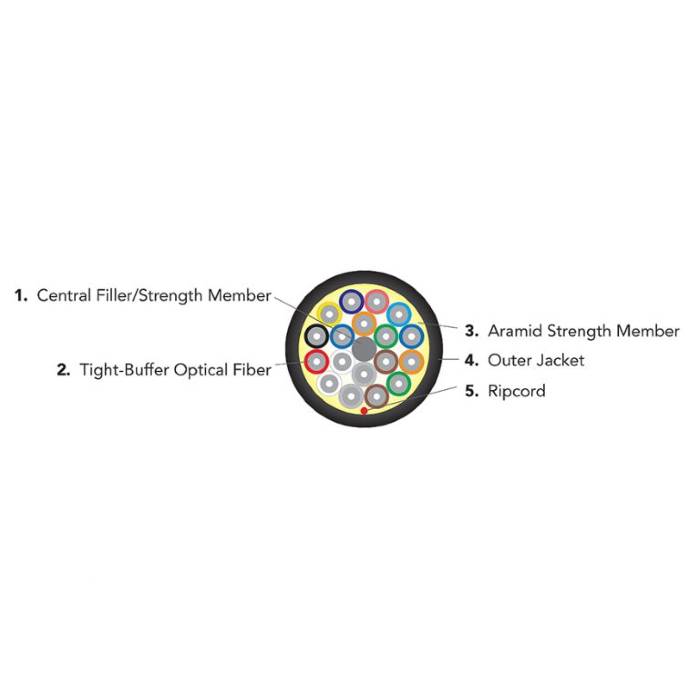

  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
  • High strength-to-weight ratio
  • Fiber configuration is smaller and lighter than comparable sub-grouped cables made by others: ideal for installation in areas with limited space or tight bends
  • Can be armored for additional protection in direct burial and aerial installations

    • Specification

    Operating Temperature: -40°C to +85°C
    Storage Temperature: -55°C to +85°C
    Install Temperature: -10°C to +60°C
    Flame Retardancy: UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
    Crush Resist: 1800 N/cm
    Impact Resist: 1500 impacts
    Flex Resist: 2000 cycles
    Jacket: Type D
