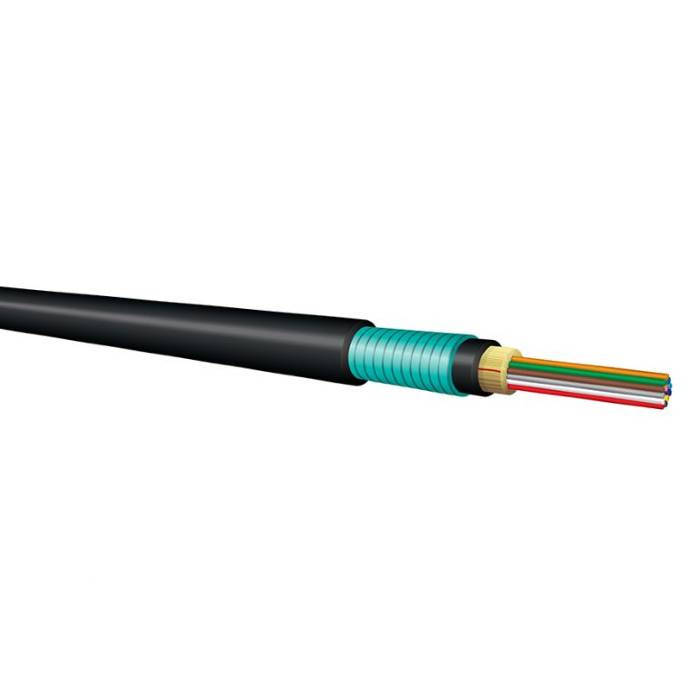

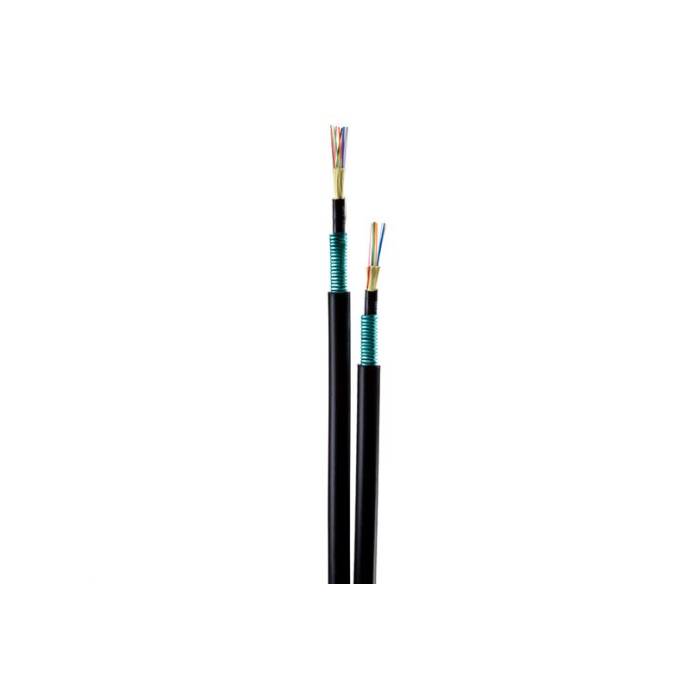

OCC 12 Strand 50/125 Multimode OM3 Outdoor Armored Tight-Buffered Fiber Optic Cable - Black

$2.75
Reference#: 77953
Item#: OCC-DX012DALT9KAA2



Description

The DX012DALT9KAA2 is a high-performance, rugged optical fiber distribution cable designed for demanding outdoor and direct burial installations. Featuring a unique combination of durability, flexibility, and high mechanical protection, this cable is ideal for point-to-point runs between buildings and applications requiring protection against rodents and harsh environmental conditions. With a UV, water, and fungus-resistant construction, it is well-suited for installations where long-term reliability and performance in challenging outdoor environments are essential.

Features

  • High-performance components and construction
  • Inner cable materials are Indoor/Outdoor: UV, water and fungus-resistant
  • Polyethylene (A) outer jacket is UV, water and fungus resistant: ideal for outdoor installations
  • High-performance 900µm tight-buffered coating on each optical fiber for environmental and mechanical protection 2 to 144 fibers
  • 900µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber

    • Specification

    Operating Temperature: -40°C to +85°C
    Storage Temperature: -55°C to +85°C
    Install Temperature: -10°C to +60°C
    Crush Resist: 440 N/cm (EIA-TIA-455-25A)
    Impact Resist: 20 impacts (EIA-TIA-455-25A)
    Flex Resist: 25 cycles
    Jacket Type: D Inner, A Outer
