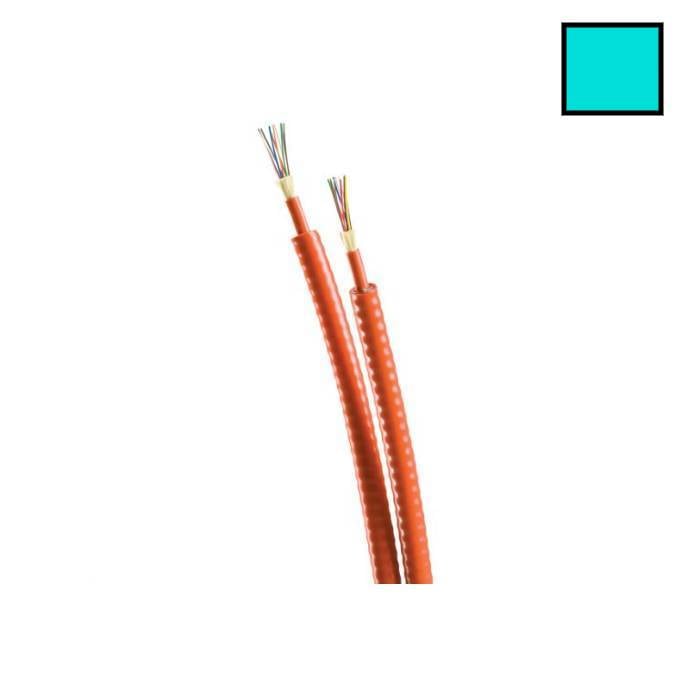

OCC 12 Strand Multimode OM3 Indoor/Outdoor Armored DX-Series Riser Fiber Optic Cable - Aqua

$2.69
Reference#: 77959
Item#: OCC-DX012DALT9QRI2



Description

The DX012DALT9QRI2 is a high-performance, durable indoor/outdoor cable designed to provide superior protection and flexibility for a variety of industrial, commercial, and outdoor applications. Featuring a UL-listed OFCR (Optical Fiber Cable, Riser) construction, this cable complies with the National Electrical Code (NEC) Section 770.179(b), which allows it to be used in vertical building risers or for floor-to-floor installations. Its design offers excellent mechanical protection and environmental resistance, making it ideal for installations where conduit protection is necessary.

Features

  • Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water, and fungus-resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
  • Aluminum interlocking armor with PVC overjacket
  • Interlocking armor can be easily removed leaving an intact inner cable
  • Greater flexibility than standard corrugated steel armored (CST) cables
  • Ideal for locations that require conduit for cable protection

    • Specification

    Operating Temperature: -40°C to +85°C
    Storage Temperature: -55°C to +85°C
    Install Temperature: 0°C to +60°C
    Flame Retardancy: UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
    Crush Resist: 650 N/cm
    Impact Resist: 20 impacts
    Flex Resist: 25 cycles
    Jacket Type: D
