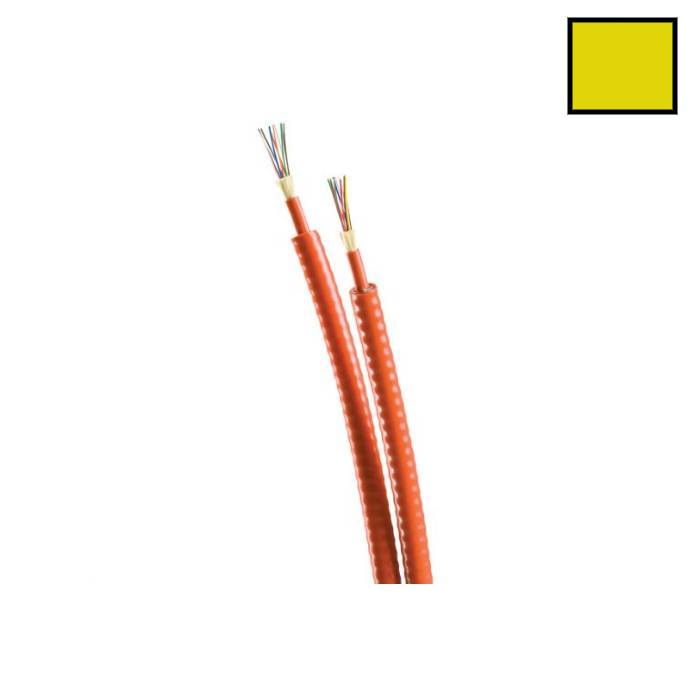

OCC 48 Strand Singlemode Indoor/Outdoor Armored Riser Fiber Optic Cable - Yellow

$4.87
Reference#: 77955
Item#: OCC-DX048DSLA9YRI2



Description

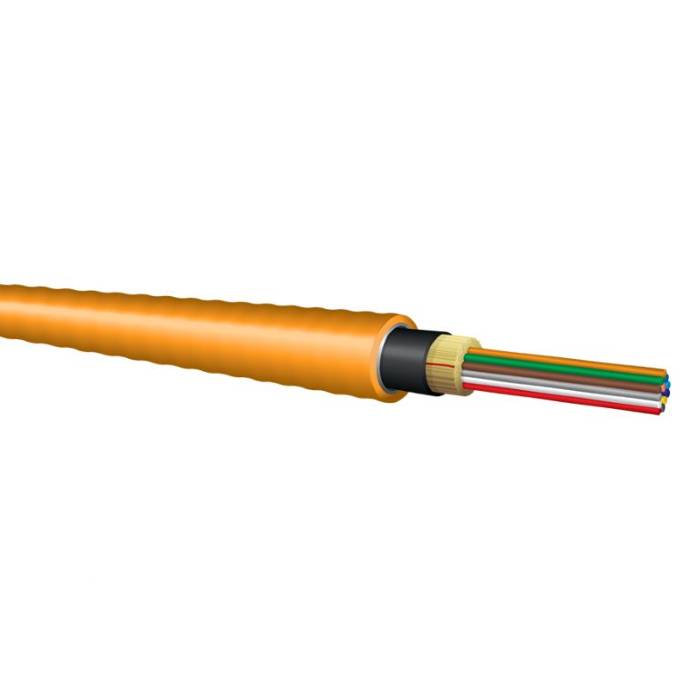

The DX048DSLA9YRI2 is a high-performance, Indoor/Outdoor optical fiber cable designed to meet the demands of industrial, commercial, and building infrastructure installations. This cable combines mechanical protection, flexibility, and ease of installation, making it ideal for vertical runs in riser applications, as well as outdoor settings. It features interlocking aluminum armor with a PVC overjacket that offers additional protection against physical stress and environmental factors.

Features

  • Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water and fungus resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor

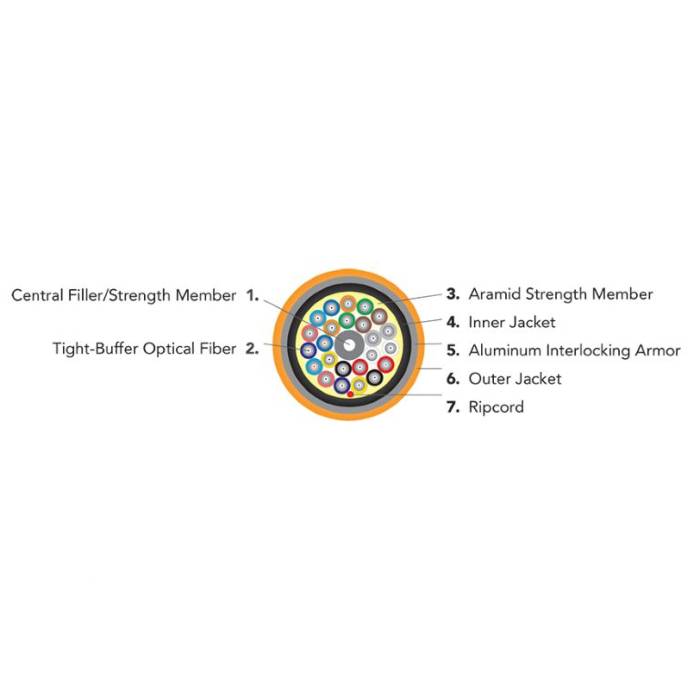

  • Aluminum interlocking armor with PVC overjacket
  • Interlocking armor can be easily removed leaving an intact inner cable
  • Greater flexibility than standard corrugated steel armored (CST) cables
  • Ideal for locations that require conduit for cable protection

    • Specification

    Operating Temperature: -40°C to +85°C
    Storage Temperature: -55°C to +85°C
    Install Temperature: 0°C to +60°C
    Flame Retardancy: UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
    Crush Resist: 650 N/cm
    Impact Resist: 20 impacts
    Flex Resist: 25 cycles
    Jacket Type: D
