Dynacom Category 6 Kwik Jack - GRAY

Reference#: 69629
Item#: DY-10606K-GRY


If you're paying people by the hour to do installations, YOU NEED THIS JACK.

The Kwik-Jack, when used with the Kwik-Tool, will help you lower your labor costs better than any other jack on the market.

The Kwik-Jack is also compatible with standard 110 tools when a Kwik-Tool is not available.

Contractor Testimonial:
Check out the Discount Low Voltage blog for a contractor video testimonial on the Kwik Jack System.

Learning Center:
Click the Video tab to watch the Kwik Jack video, or visit the Discount Low Voltage Blog for step by step instructions on Terminating Cat5e/Cat6 Keystone Kwik Jacks.


- High-Density Design

- `SureLock Retention Technology' Eases Wire Dressing

- KwikTool Compatible for Easy Termination

- Component Compliant Performance

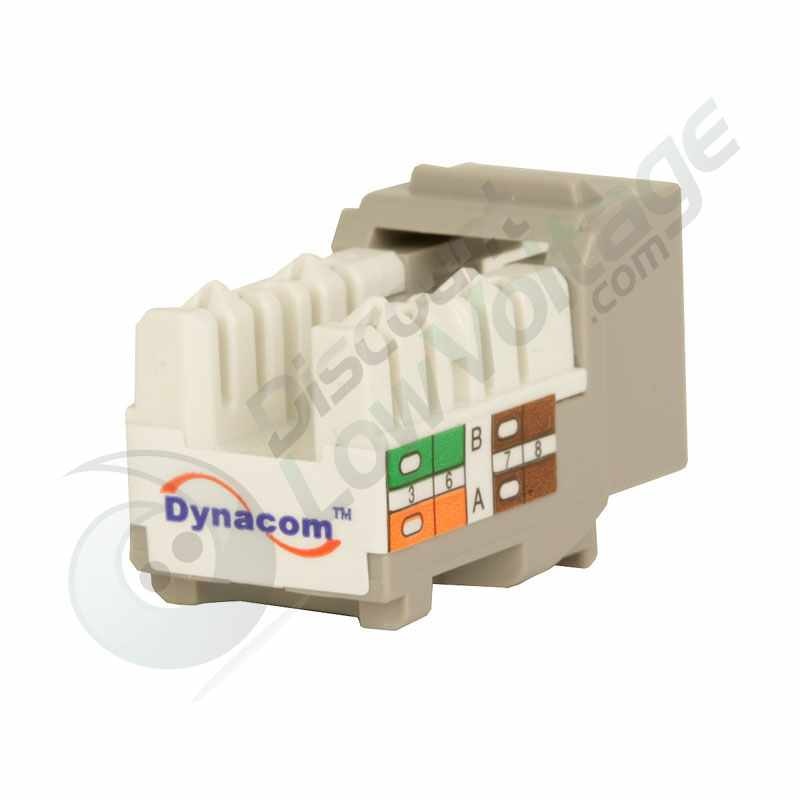

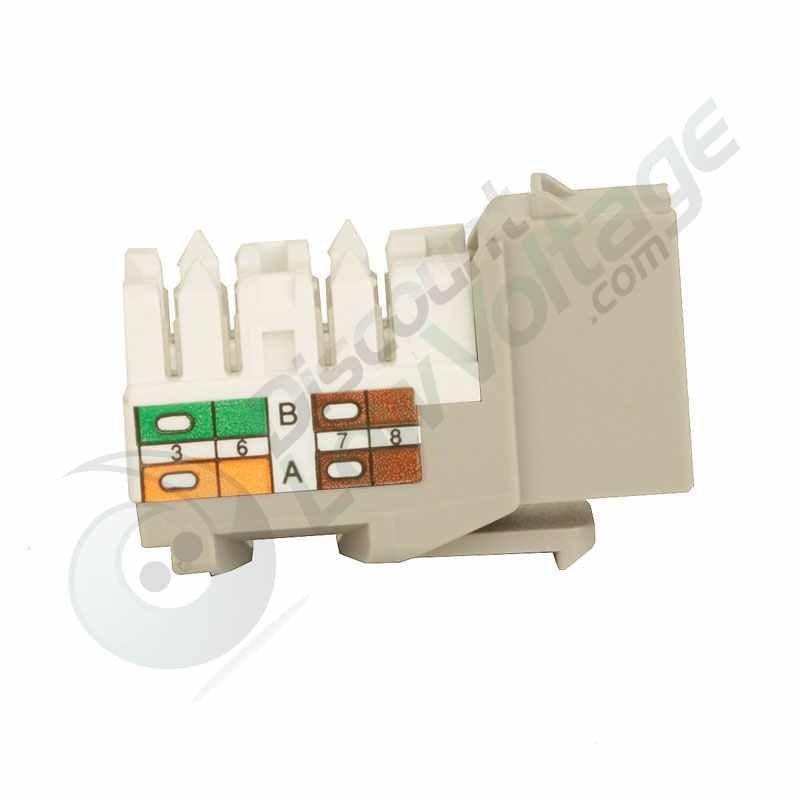

- Color Coded for T568A or B

- Available in 10 Colors


Transmission Performance
Meets TIA/EIA-568-B.2-1 Cat.6 15M Short Link requirements.

Environmental Conditions
Temperature Range
Storage -40 to +70 C
Operation -10 to +60 C
Relative Humidity (Operational): Maximum Noncondensing 93%

Insertion/Extraction Life: 750 Cycles Minimum
IDC Wire Gauge: 22~24 AWG

Housing: High-Impact, Flame-Retardant Plastic, UL 94V-0
Spring Wire: Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel
IDC: Phosphor bronze alloy with 100 micro-inch 100% Sn alloy
