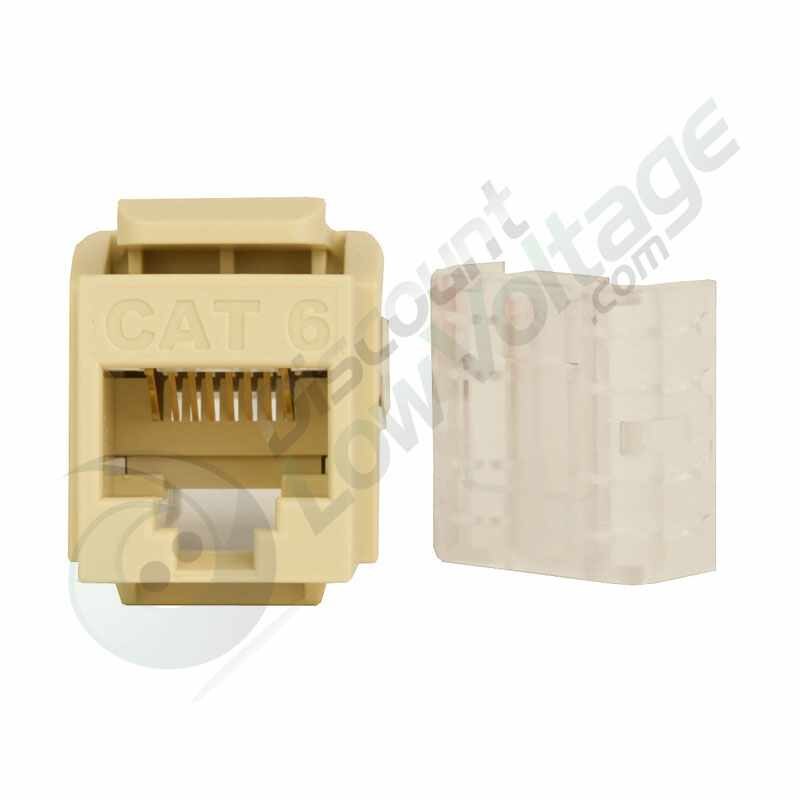

Dynacom Category 6 Kwik Jack - IVORY
Item#: DY-10606K-IVY
Description
If you're paying people by the hour to do installations, YOU NEED THIS JACK.
The Kwik-Jack, when used with the Kwik-Tool, will help you lower your labor costs better than any other jack on the market.
The Kwik-Jack is also compatible with standard 110 tools when a Kwik-Tool is not available.
Contractor Testimonial:
Check out the Discount Low Voltage blog for a contractor video testimonial on the Kwik Jack System.
Learning Center:
Click the Video tab to watch the Kwik Jack video, or visit the Discount Low Voltage Blog for step by step instructions on Terminating Cat5e/Cat6 Keystone Kwik Jacks.
Features
- `SureLock Retention Technology' Eases Wire Dressing
- KwikTool Compatible for Easy Termination
- Component Compliant Performance

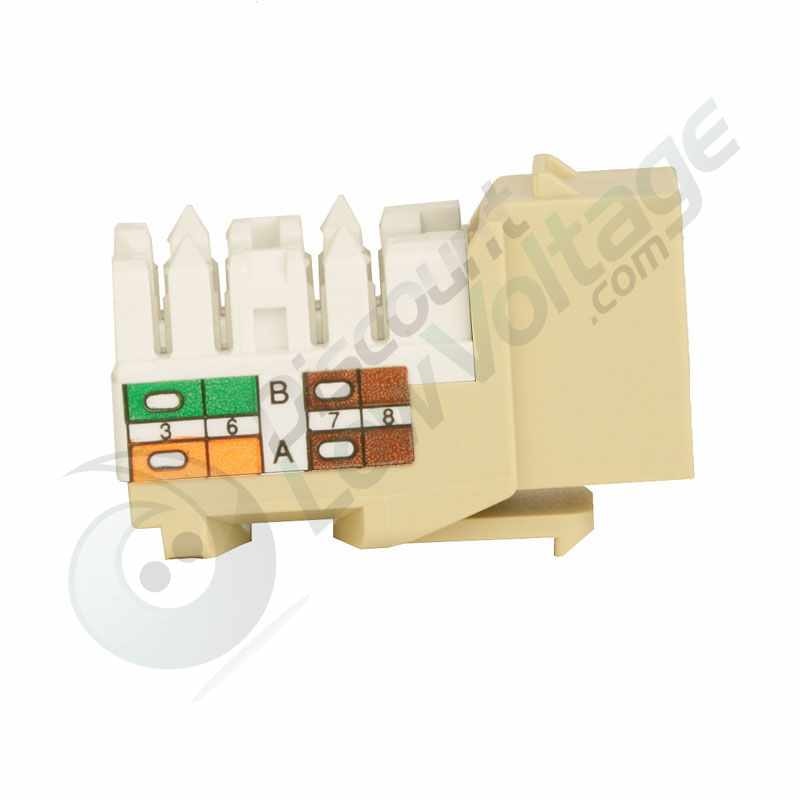

- Color Coded for T568A or B
- Available in 10 Colors
Specification
Meets TIA/EIA-568-B.2-1 Cat.6 15M Short Link requirements.
Environmental Conditions
Temperature Range
Storage -40 to +70 C
Operation -10 to +60 C
Relative Humidity (Operational): Maximum Noncondensing 93%
Mechanical
Insertion/Extraction Life: 750 Cycles Minimum
IDC Wire Gauge: 22~24 AWG
Physical
Housing: High-Impact, Flame-Retardant Plastic, UL 94V-0
Spring Wire: Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel
IDC: Phosphor bronze alloy with 100 micro-inch 100% Sn alloy
