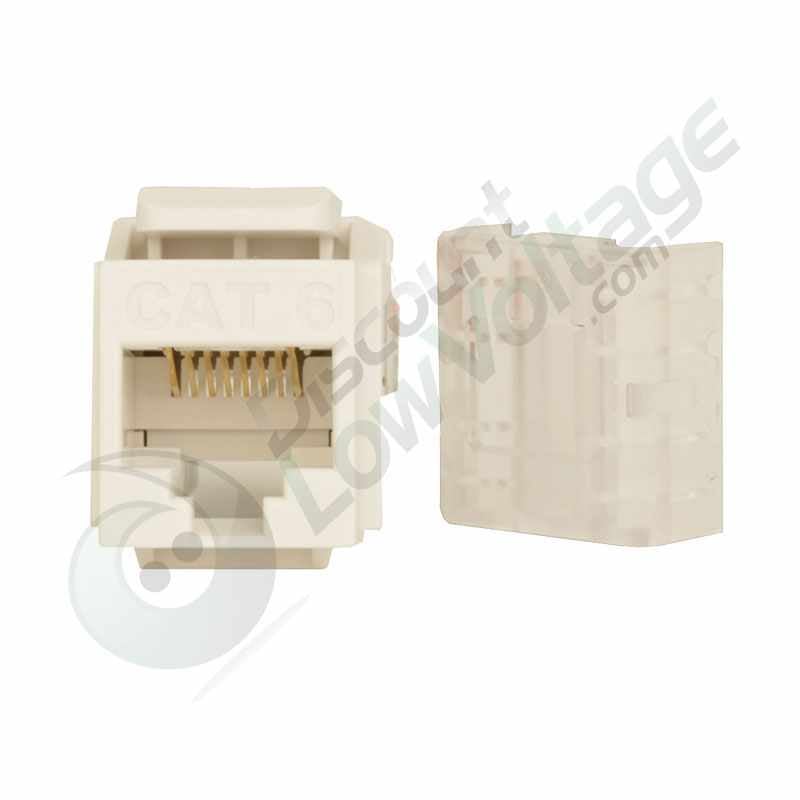

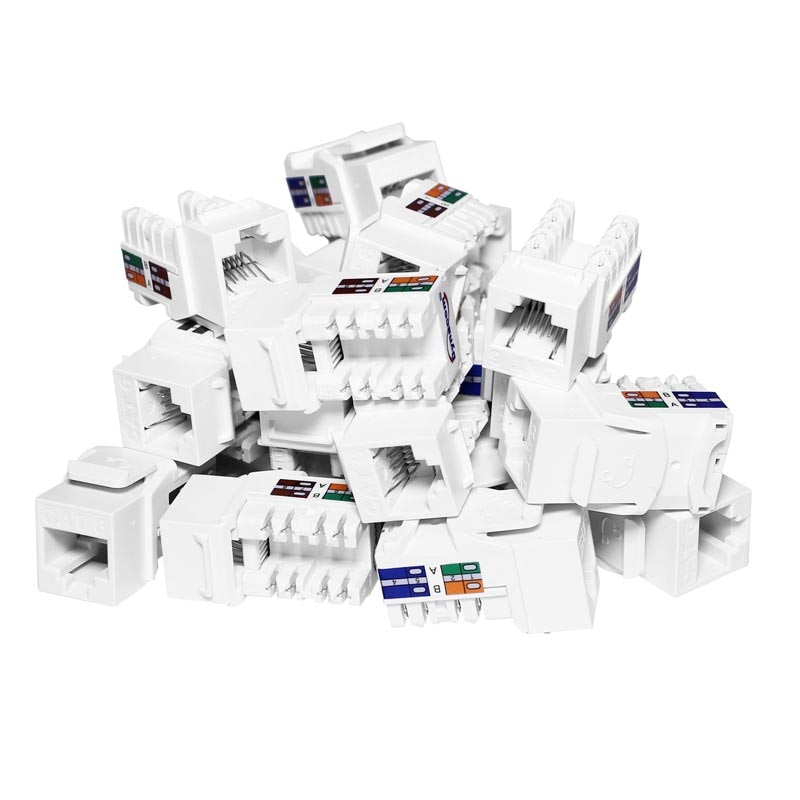

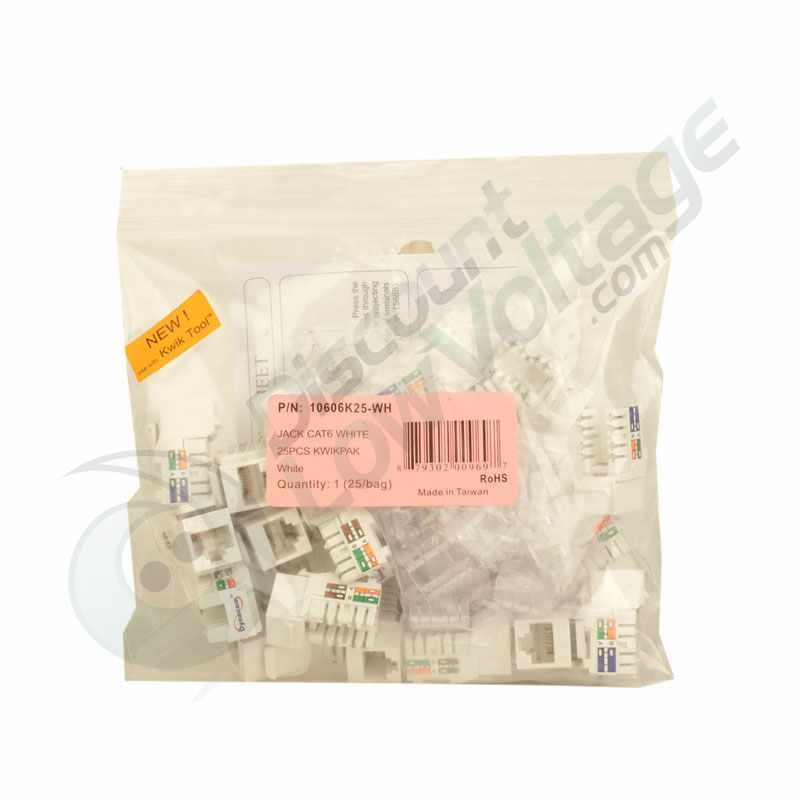

Dynacom Category 6 Kwik Jack 25 pc. Contractor Pack - WHITE

Reference#: 69636
Item#: DY-10606K25-WHT



Cut even the biggest jobs down to size with the Dynacom Category 6 Kwik Jack 25 Pc. White Contractor Pack from Discount Low Voltage. Used with a Kwik-Tool, these jacks can save you up to 30 percent of the installation time and help control those high labor costs. This smart system makes terminations fast and easy by terminating and cutting all four pairs at the same time. Peaks on top of the jacks allow you to separate conductors faster and easier, saving even more time. These jacks can also be used with standard 110 tools when a Kwik-Tool is not available.


Work smarter with the Dynacom Category 6 Kwik Jack 25 Pc. White Contractor Pack. Used with a Kwik-Tool, this system will save you more in time and labor costs than any other product on the market.

·Reduce waste and time spent unpacking individual jacks

·High-density design

·SureLock retention technology eases wire dressing

Take advantage of free shipping when your qualified order equals $200 or more, with delivery typically taking two to five business days. Faster shipping options are also available.


We make it easy for you to start saving time and money. Orders of 100 or more Kwik Jacks qualify for a free Kwik-Tool. Questions about Kwik Jacks and Kwik-Tools? Call us toll-free for Kwik answers.

Contractor Testimonial:

Check out the Discount Low Voltage blog for a contractor video testimonial on the Kwik Jack System.

Learning Center:
Click the Video tab to watch the Kwik Jack video, or visit the Discount Low Voltage Blog for step by step instructions on Terminating Cat5e/Cat6 Keystone Kwik Jacks.


- Buy in bulk and Save!

- Reduce waste and time spent unpacking individual jacks

- High-Density Design

- `SureLock Retention Technology' Eases Wire Dressing

- KwikTool Compatible for Easy Termination

- Component Compliant Performance

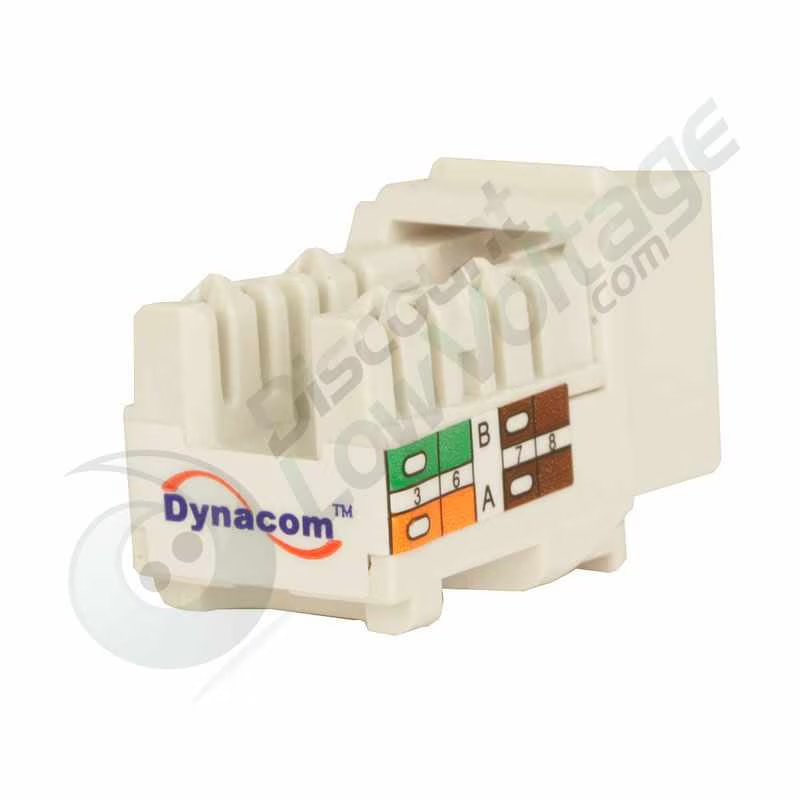

- Color Coded for T568A or B

- Contractor Pack Kwik Jacks available in 2 Colors (Blue, White)


Transmission Performance
Meets TIA/EIA-568-B.2-1 Cat.6 15M Short Link requirements.

Environmental Conditions
Temperature Range
Storage -40 to +70 C
Operation -10 to +60 C
Relative Humidity (Operational): Maximum Noncondensing 93%

Insertion/Extraction Life: 750 Cycles Minimum
IDC Wire Gauge: 22~24 AWG

Housing: High-Impact, Flame-Retardant Plastic, UL 94V-0
Spring Wire: Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel
IDC: Phosphor bronze alloy with 100 micro-inch 100% Sn alloy
