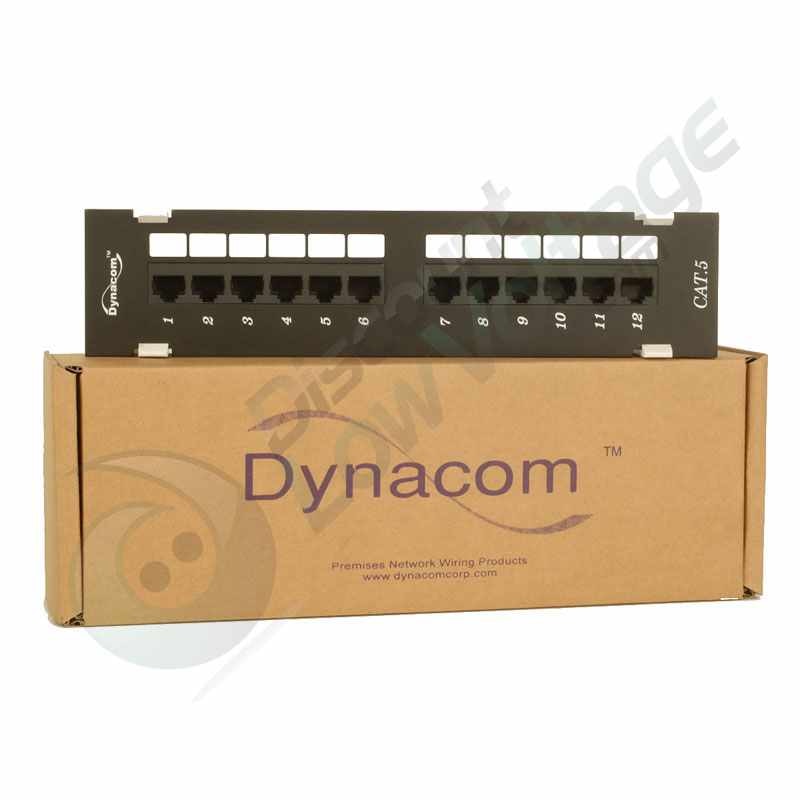

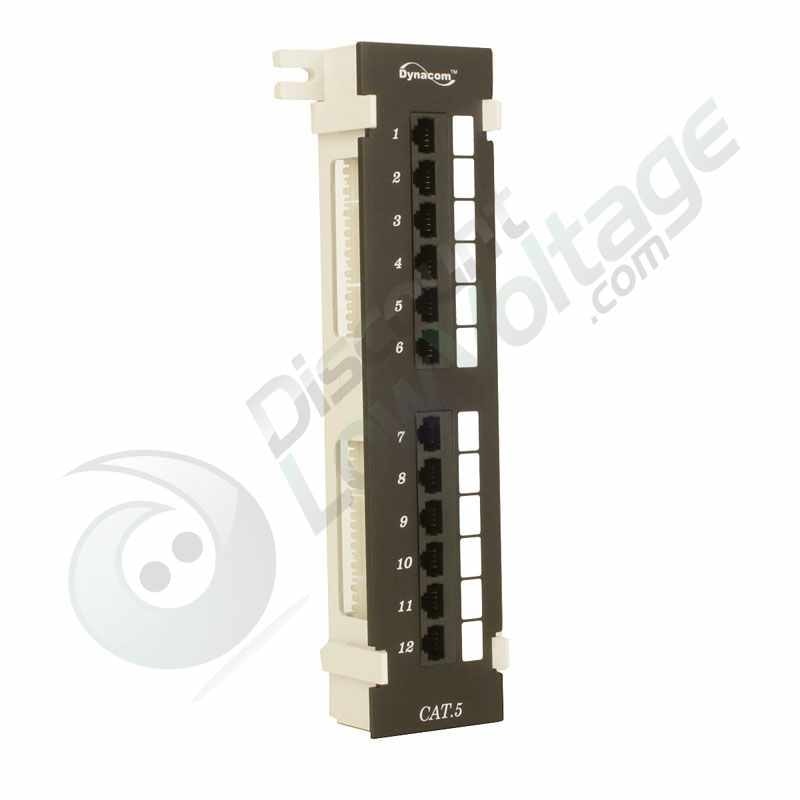

Dynacom 12 Port Cat5e Patch Panel - Wall Mount

Reference#: 69680
Item#: DY-2013-12DC5E

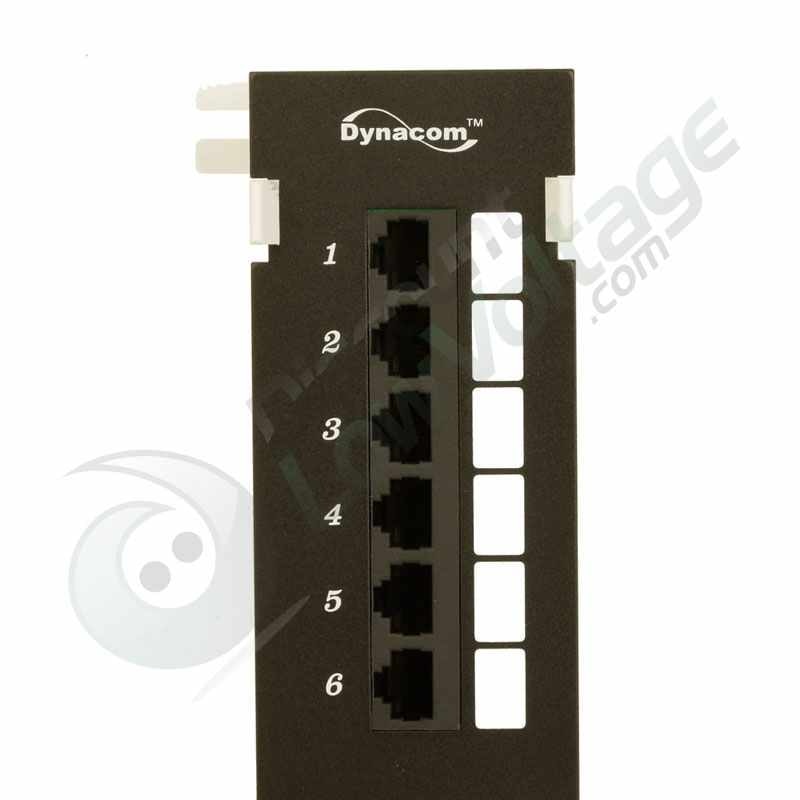

This Cat5e 12 port patch panel is designed for small voice and data installations. Includes two 6 port Cat5e non-keyed jack modules mounted on a wall-mounting bracket. Color Coded for 568A or 568B. Contractor preferred patch panel.

Manufactured by Dynacom. Dynacom has provided data and telecom cable installers trusted connectivity solutions since 1984. Our commitment to quality products has made us a leader in supplying copper and fiber optic structural cabling products that exceed performance demands while maintaining exceptional value.


12 port Wall mounted Cat5e component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.

Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals on the 12 port panel

Exceeds ANSI/TIA/EIA-568-B.2 Cat5e connecting hardware requirements

Engineering to provide 110 IDC termination reducing installation time

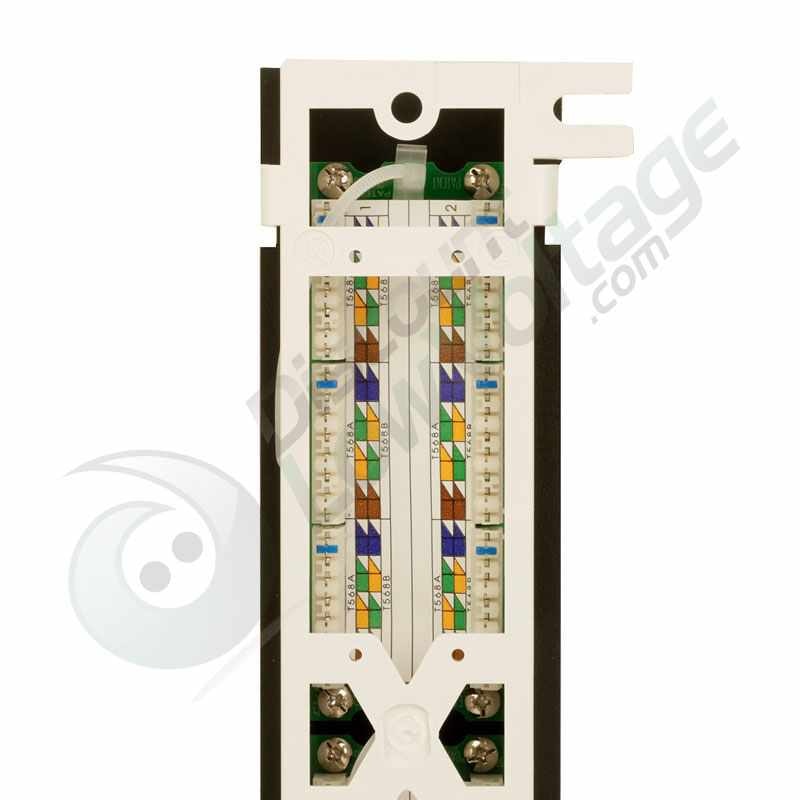

Includes both TIA-568A and TIA-568B color wiring diagrams on the back of this 12 port Cat5e patch panel

Backwards compatible to all lower rated category components

12 port 5e panel installation instructions included

UL listed

Panel includes mounting screws. Flexible solution suitable for use as a consolidation point.

3.32" W x 10" H x 2.35" D Comes with removable 89U universal mounting bracket

Includes mounting screws.


Warranty Information:

Dynacom products are built under rigid documented procedures. We are confident in their uniformity and conformity to the highest industry standards and warranties all of it's TIA, 568-A compliant Premises Network Wiring Products for 25 years. For all the details, download the Dynacom Warranty Form under the "Downloads" tab.
