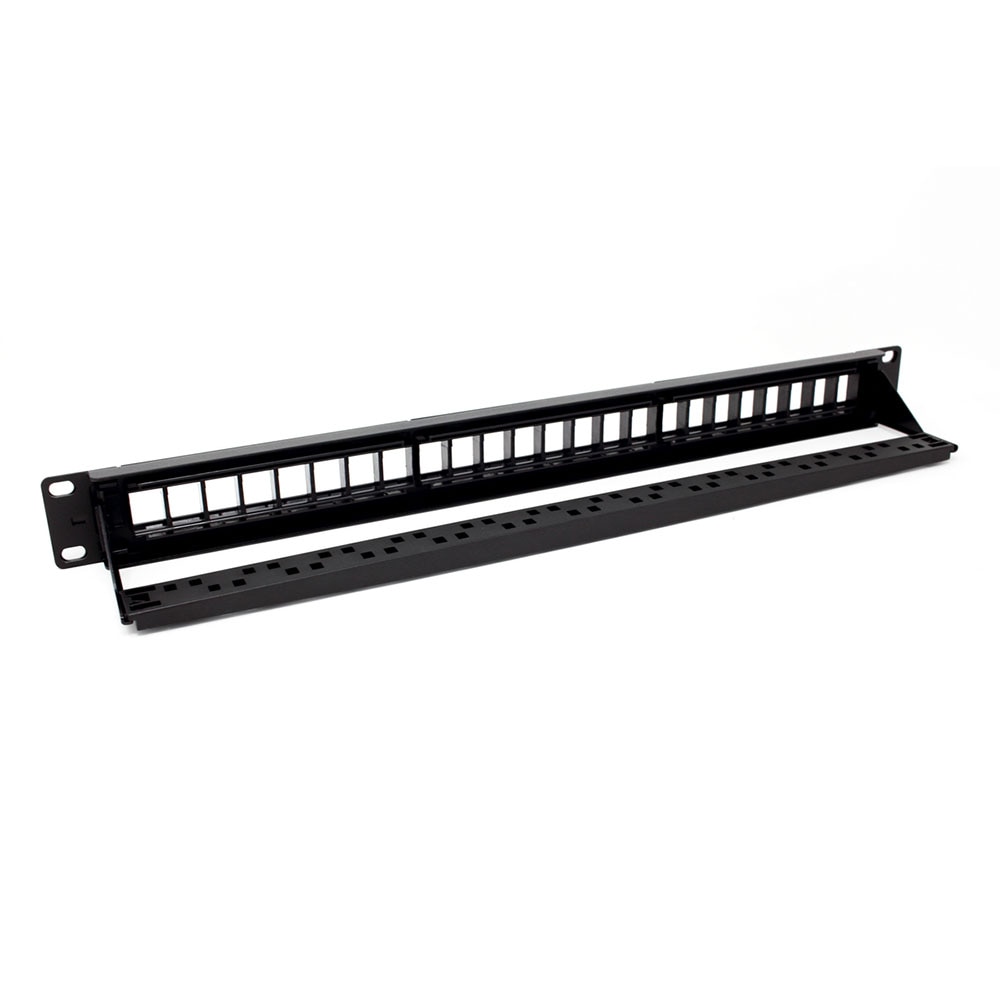

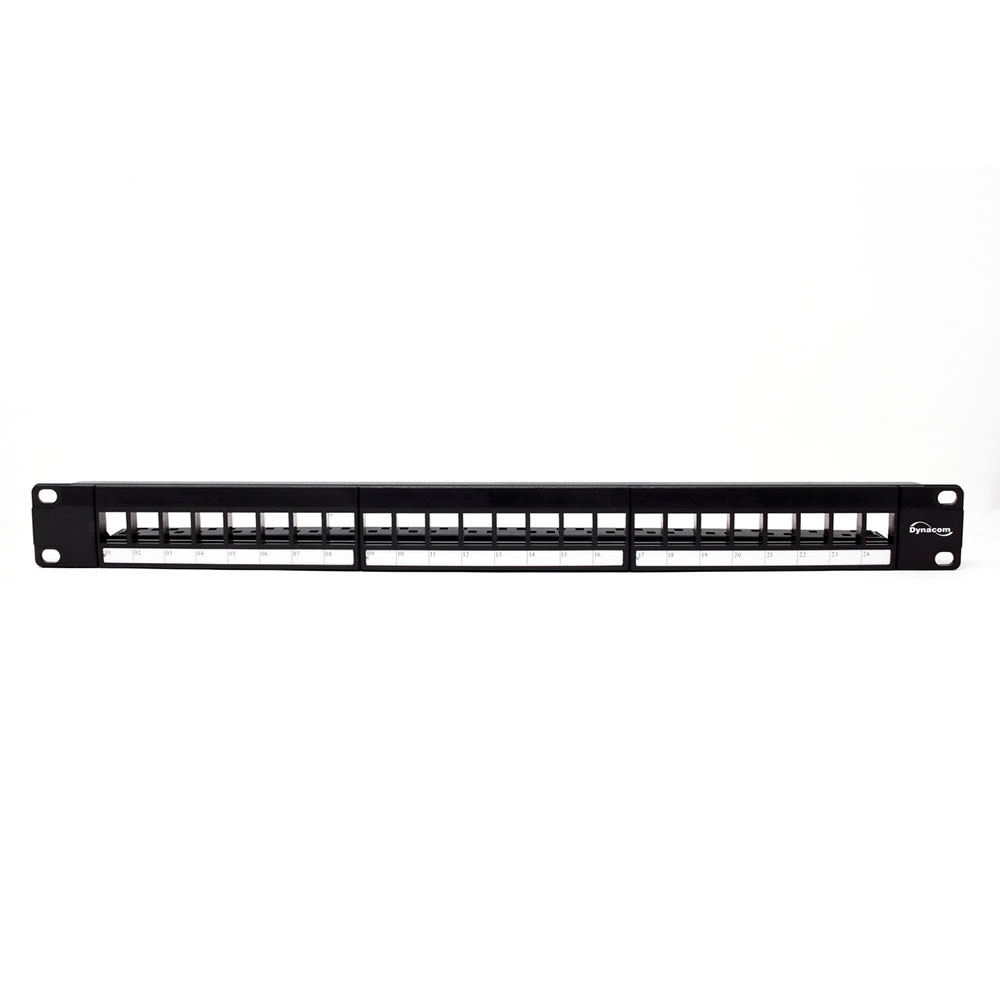

Dynacom High Density 1U Blank Keystone Patch Panel - 24 Port

Reference#: 69686
Item#: DY-2013-24FP


This 24 Port 1U High Density style blank patch panel provides the ability to field configure your panel using a variety of connector modules, including; category 5e, category 6 and even category 6A jacks. Other popular keystone inserts that will fit are cat5e and cat6 inline couplers, a wide range of multimedia modules and any "high density' style keystone insert.

This blank 24 port patch panel is designed to accommodate both unscreened and screened twisted-pair keystone jacks, which makes it a universal solution. The panel features front labeling areas and comes with a rear cable management bar that mounts easily to the back of the panel.

* Must use high-density style jacks. The Dynacom Kwik Jacks are recommended with this Dynacom patch panel.


• Field configurable – a variety of connector modules can be installed in any combinations

• Can be used as a feed-thru interconnect when used with twisted-pair inline couplers

• Maximum strength and durability construction

• Accommodates both unscreened and screened twisted pair keystone jacks

• Snap-in rear cable management bar (included)


• Construction:
Panel: steel/Ni plated steel
Cable management bar: steel/plastic

• Dimensions:
19” rack mountable, 1.75” (1 RMU)

• Operating Temperature:
-14°F – 140°F (-10°C – +60°C)

• Compliance:
UL 94V-0
