Dynacom 2013-48C6E Cat 6 panel 48 port

Reference#: 69689
Item#: DY-2013-48C6E

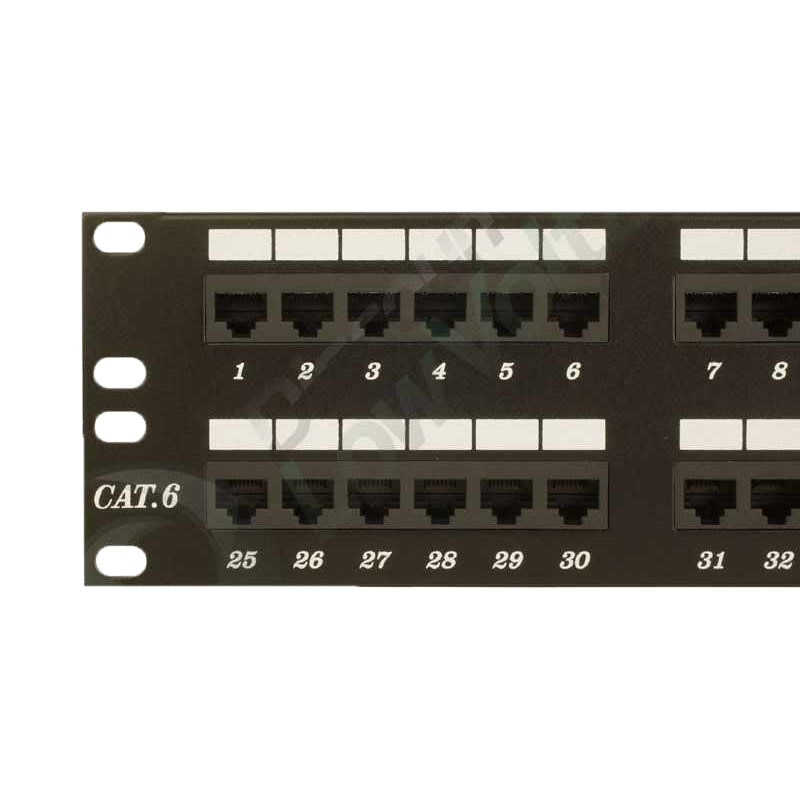

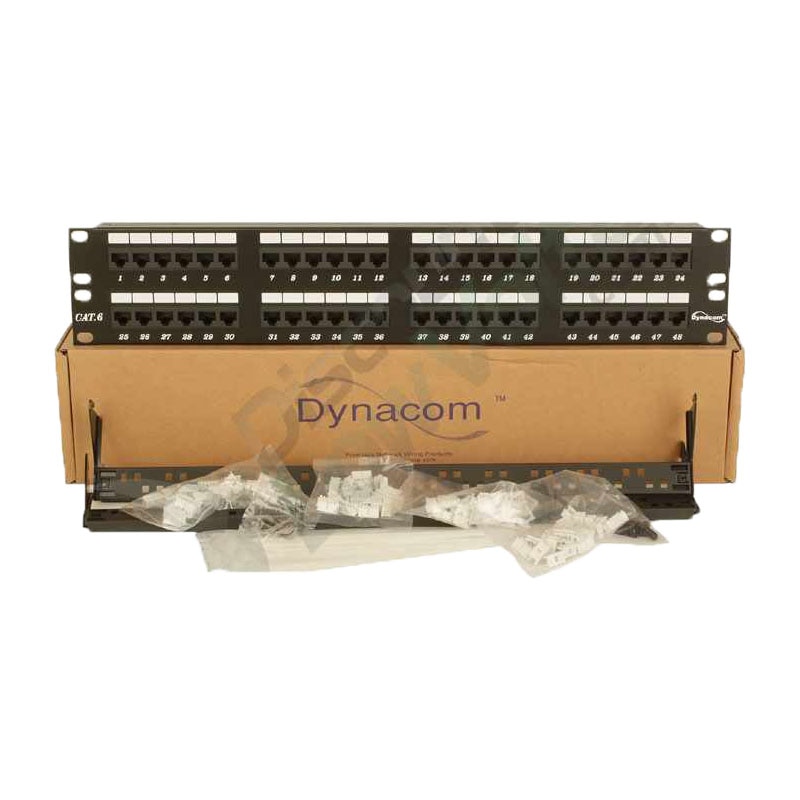

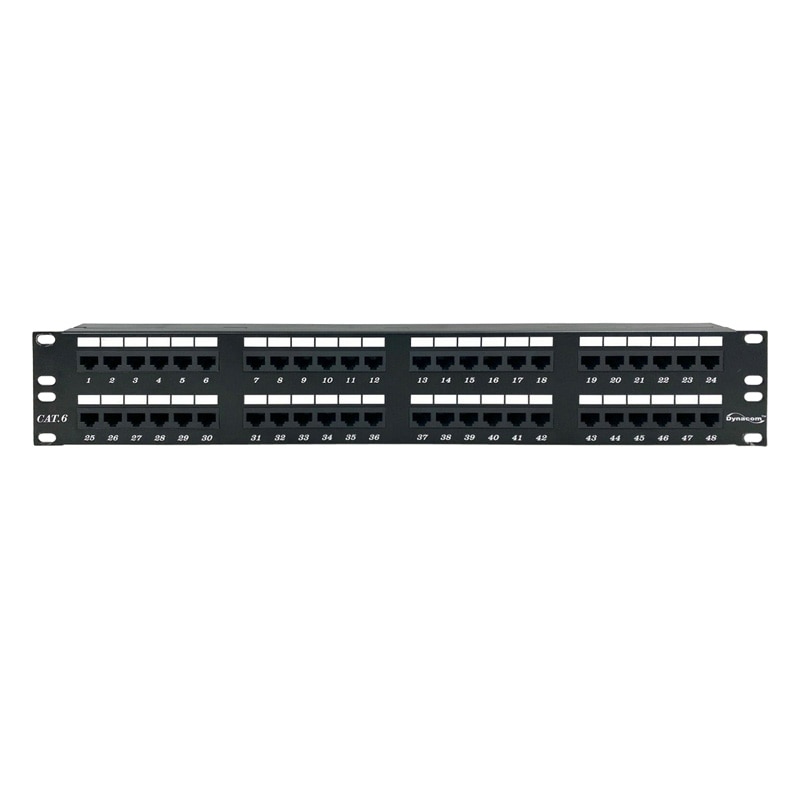

Dynacom 48 Port Cat6 Rack Mount Patch Panel

48-Port, CAT 6, 2 rack mount space Designed with rear 110 IDC for fast termination. Includes #12 rack screws.

Category 6, commonly referred to as Cat 6, is a cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5e and Category 3 standards. Compared with Cat-5 and Cat-5e, Cat-6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).


Rack mounted CAT 6 component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.

Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals

Exceeds ANSI/TIA/EIA-568-B.2 Category 6 connecting hardware requirements

Engineering to provide 110 IDC termination reducing installation time

Includes both TIA-568A and TIA-568B color wiring diagrams

Backwards compatible to all lower rated category components

Designed to fit all standard 19" racks and cabinets

Installation instructions included

UL listed

Contractor Rated Grade A


Warranty Information:
Dynacom products are built under rigid documented procedures. We are confident in their uniformity and conformity to the highest industry standards. Dynacom warranties all of it's TIA, 568-A compliant Premises Network Wiring Products for 25 years.
