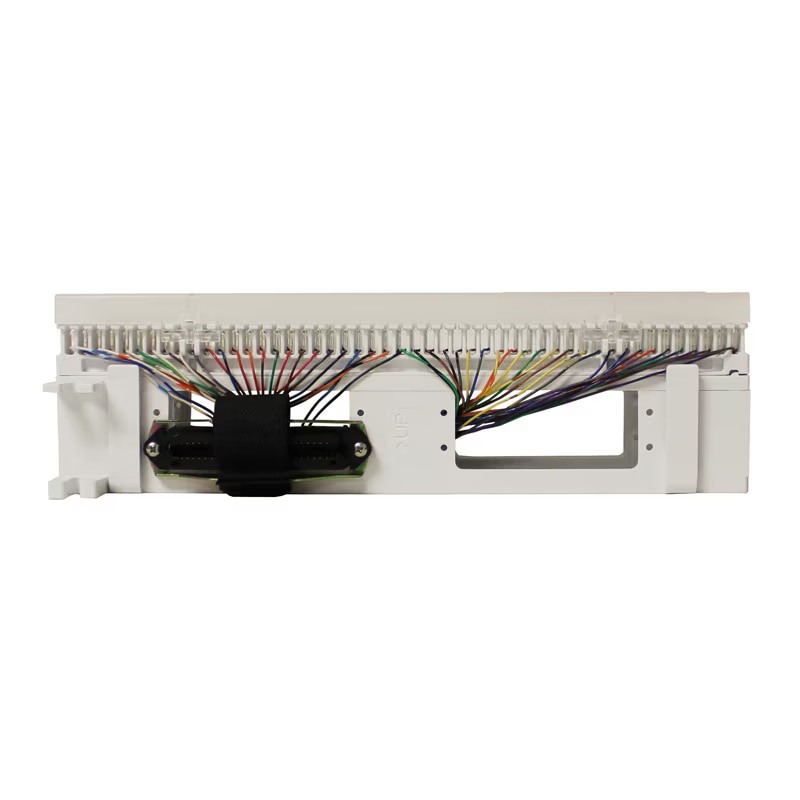

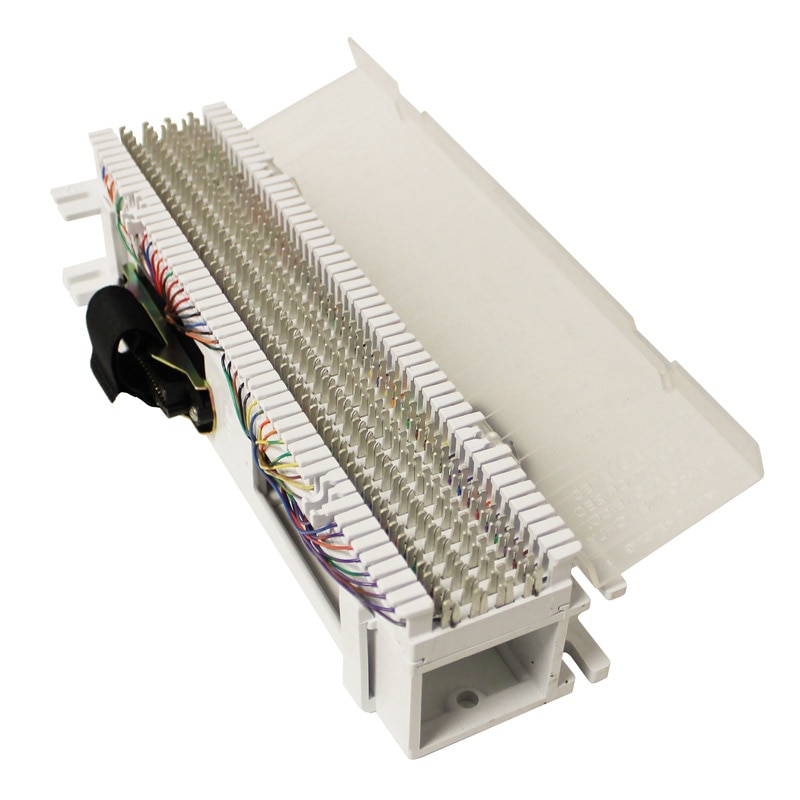

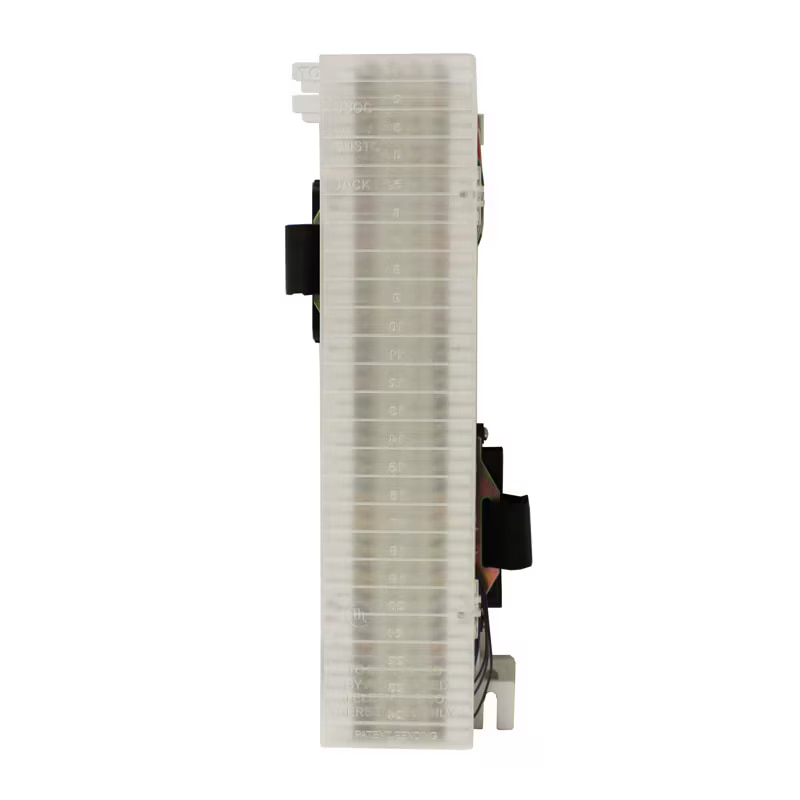

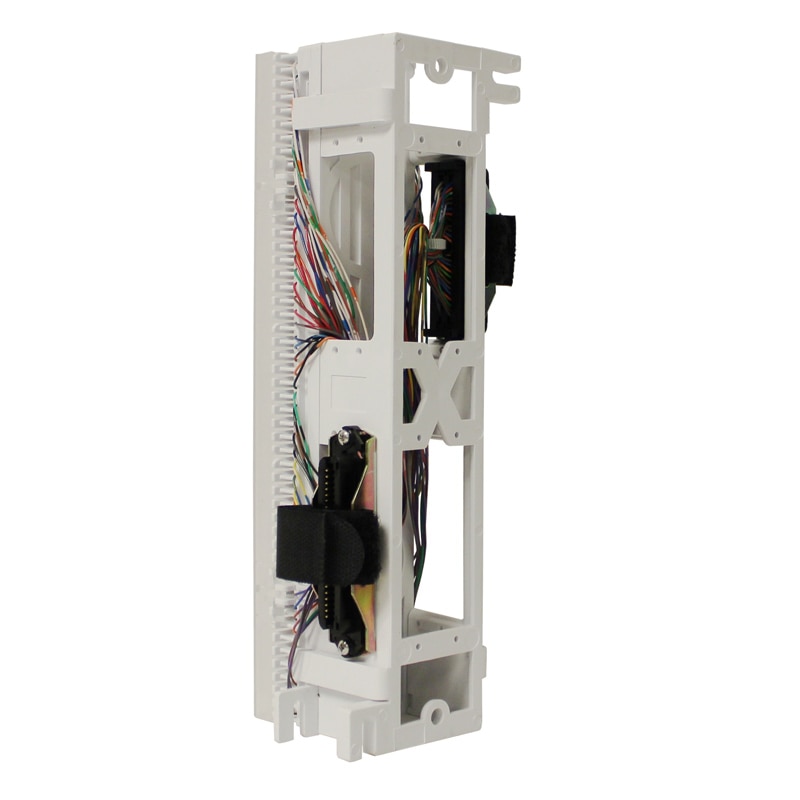

Pre Wired 66Block W/2 Female Telco Connectors
$59.95
Reference#: 68074
Item#: 66B2F
Item#: 66B2F
Description
Pre Wired 66 Block w/2 Female Amphenol Connectors
UTILITY
Designed with fast installation of Amphenol 25-pair telco cable in mind, the Pre-Wired 66 Block with 2 Female Telco Connectors from Discount Low Voltage is pre-tested. That translates into time and labor savings.
AVAILABILITY
These 66 blocks serve as excellent demarcation points for end users’ equipment and the phone company. Use them for PBX, telephone systems and other low-voltage termination equipment.
·Voice grade
·Amphenol-style telco connectors
·USOC wired
This product is eligible for free shipping, which usually take two to five business days. Other shipping options are available if you need it quicker.
VALUE
Take advantage of our quantity discounts to save even more on these 66 blocks. If you have any questions, call our staff toll-free or shoot us an email.
RESOURCES
Get a great look at this pre-wired 66 block by watching the DLV Product Quick View video. If you have questions, call our knowledgeable staff, toll-free, or send us an email.
Features
- Hinged Cover Sold Separately
- Voice Grade
- 50-Pair
- `Amphenol-style' Telco Connectors
- USOC Wired
Ordering Options:
- 66B1F = w/ One Female Connector
- 66B2F = w/ Two Female Connectors
- 66B1M = w/ One Male Connector
- 66B2M = w/ Two Male Connectors
- Voice Grade
- 50-Pair
- `Amphenol-style' Telco Connectors
- USOC Wired
Ordering Options:
- 66B1F = w/ One Female Connector
- 66B2F = w/ Two Female Connectors
- 66B1M = w/ One Male Connector
- 66B2M = w/ Two Male Connectors
Specification
Temperature
1. Storage of the Prewired 66 blocks -40 to +70 Celsius
2. The operating temperature is from -10 to +60 Celsius
3. 93% Non condensing
Electrical
1. Insulation electrical resistance is -500 mohm min @ 100V DC
2. Withstanding dielectric low voltage -1000 RMS @ 60hz for 60 seconds
3. The resistance of the contacts is 2.5 MOHMS MAX
Mechanical
1. The minimum extraction force for 24 AWG is 5N
2. Life for insertion and extraction is 200 cycles minimum
3. Wire gauge used for these blocks is 22 to 26AWG
1. Storage of the Prewired 66 blocks -40 to +70 Celsius
2. The operating temperature is from -10 to +60 Celsius
3. 93% Non condensing
Electrical
1. Insulation electrical resistance is -500 mohm min @ 100V DC
2. Withstanding dielectric low voltage -1000 RMS @ 60hz for 60 seconds
3. The resistance of the contacts is 2.5 MOHMS MAX
Mechanical
1. The minimum extraction force for 24 AWG is 5N
2. Life for insertion and extraction is 200 cycles minimum
3. Wire gauge used for these blocks is 22 to 26AWG
