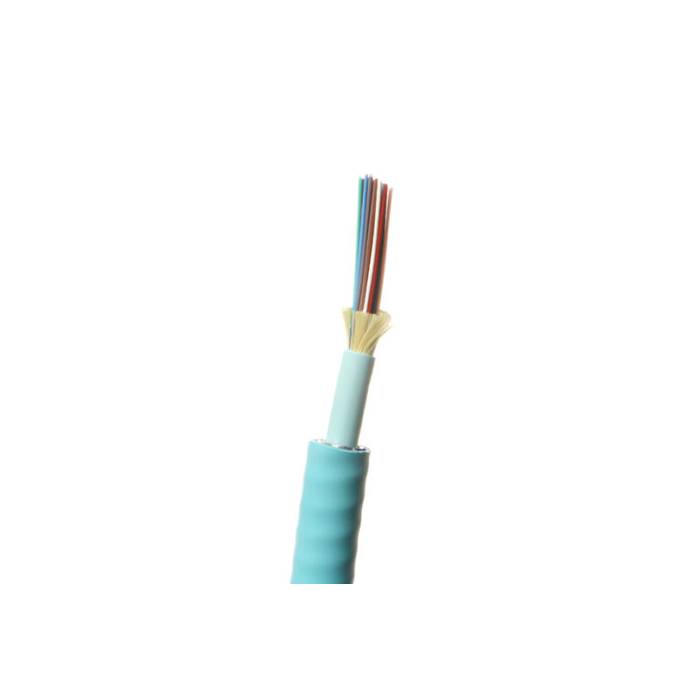

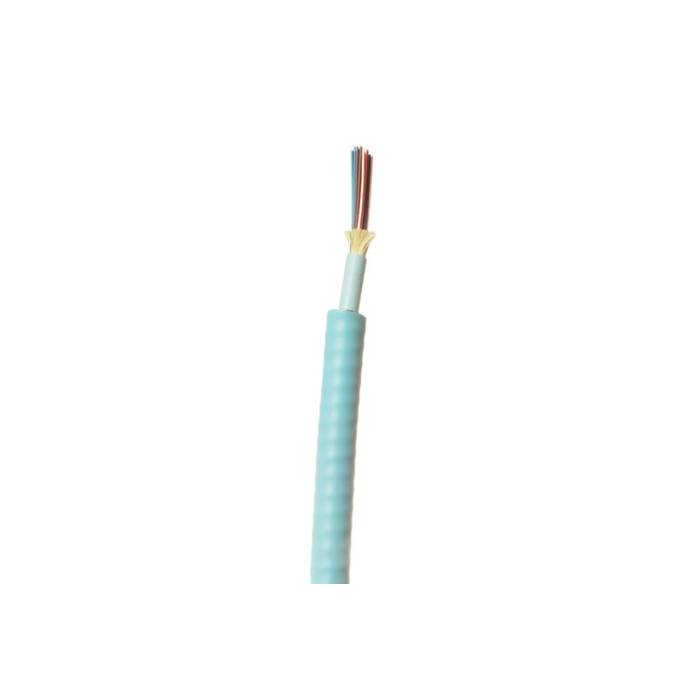

OCC 12 Strand 50/125 Multimode OM4 Indoor/Outdoor Armored Plenum Fiber Optic Cable - Aqua

$3.59
Reference#: 77948
Item#: OCC-DZ012TALE9QPI8



Description

The DZ012TALE9QPI8 is a versatile, high-performance fiber optic cable designed for trunking, LAN, and distribution applications. It is specifically engineered for installations where compact size, lightweight design, and flexible installation capabilities are essential. The cable is ideal for use in demanding environments such as ducts, plenums, and air-handling spaces, making it a highly efficient solution for commercial applications.

Features

  • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums, and air-handling spaces
  • Low-smoke PVC inner and outer jackets
  • Cable materials are Indoor/Outdoor UL-Listed OFCP and also UV, water, and fungus-resistant
  • High-performance tight-buffered coating on each fiber for environmental and mechanical protection
  • 900 µm buffer works well with both Xpress Ultra mechanical connectors and fusion splice pigtails
  • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments

    • Specification

    Operating Temperature: -40°C to +70°C
    Storage Temperature: -40°C to +70°C
    Install Temperature: 0°C to +60°C
    Flame Retardancy: UL Listed Type OFCP NFPA262 and FT6 (CSA C22.2 No. 232)
