Caddy Beam Clamp 1/8"-5/8" Flange

$3.14
Reference#: 70345
Item#: ERICO-BC200



Description

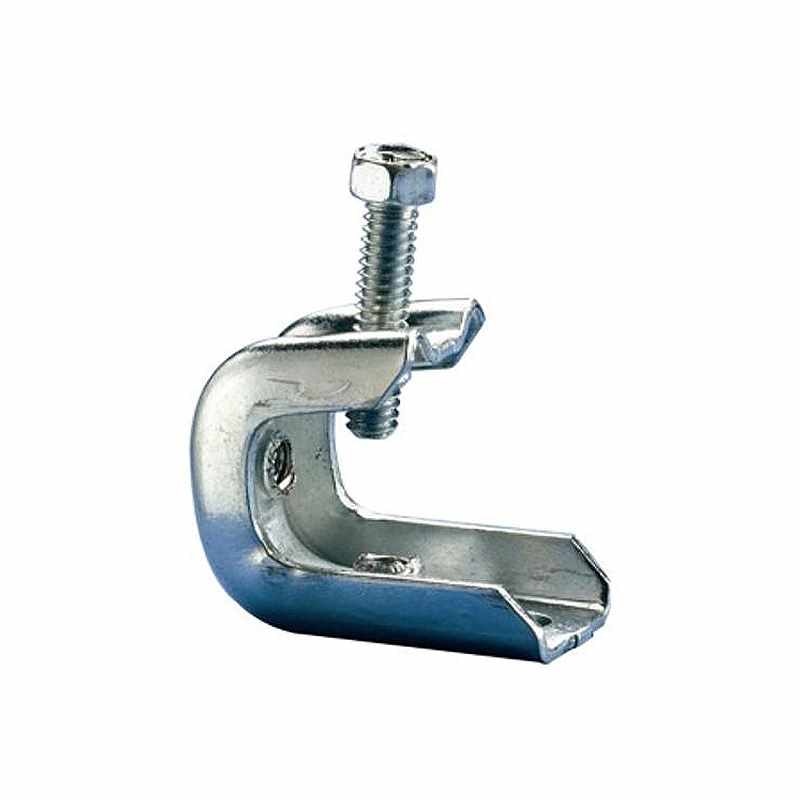

The Erico CADDY BC200 beam clamp is great for hanging threaded rod or conduit from steel beams. Easily installs with just a screw driver, this beam clamp supports static loads up to 100 lbs. Electro-zinc plated finish to ensure this beam clamp won't corrode and will last for years.

Features

  • Available riveted to conduit clips 1/2" thru 2" (call for availability)
  • Easy installation for beam flanges 1/8" to 5/8"
  • Threaded hole on back and bottom (fits 1/4"-20 threaded rod and bridle rings)
  • Can be used in locations where EMT or rigid conduit is used

Specification

Item Weight:
  • 0.12 lbs
Rod Size:
  • 1/4-20
Standard Packaging Qty:
  • 50 (sold individually)
Static Load:
  • 100 lbs
