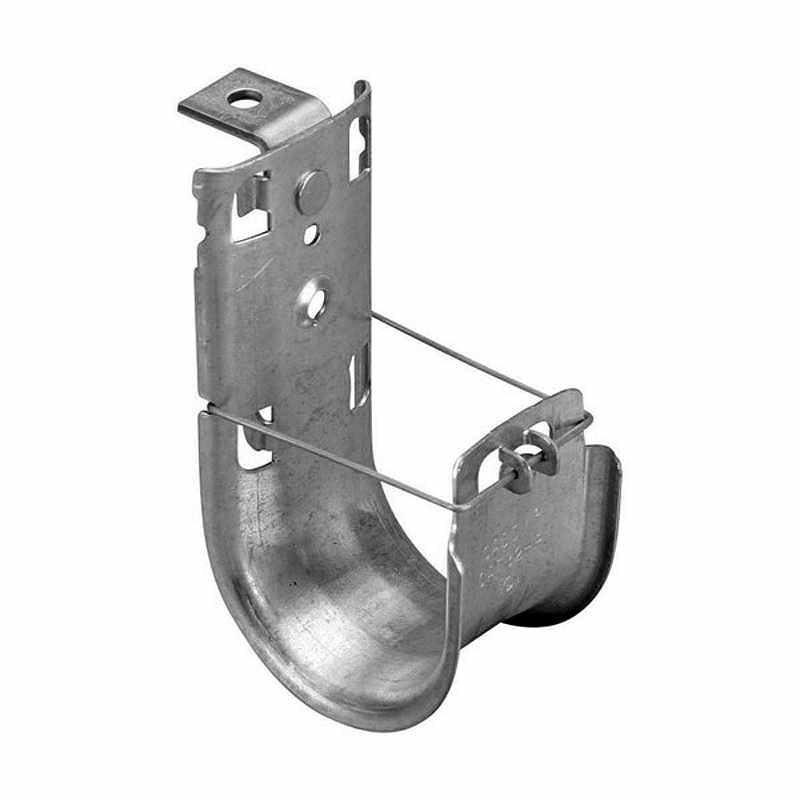

Caddy CAT32HP 2" J-Hook w/ Angle Bracket, CAT6a Compliant

Reference#: 67682


CADDY CAT32HPAB J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables, fiber optic cables, innerduct and coax cables. Individual CADDY CAT32HPAB J-Hooks can be fastened directly to the building structure or can be used to expand existing CADDY CAT HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation. The attached angle bracket is pre-installed, making installation fast and easy.

The CAT32HPAB 2" j-hooks can hold approximately 90 Cat5e cables, 60 Cat6 cables or 35 Cat6a cables.

You may also consider the Cable Tech Solutions CH-200 2" J-Hook, or the smaller CAT21HPAB J Hooks.

CAT32HPAB j-hooks are sold individually at Discount Low Voltage. Full box quantity is 50 pieces.


  • Ideal for attaching to concrete, steel or wood surfaces
  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
  • Cost effective alternative to expensive cable tray
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, TIA 568-C and TIA 569-C


Part Number: CAT32HPAB
Material: Steel
Finish: Pregalvanized
Diameter (Ø): 2"
Area: 3.97 in²
Cable Capacity, Cat 5e: 90
Cable Capacity, Cat 6: 60
Cable Capacity, Cat 6A: 35
Hole Size (HS): 1/4"
Static Load (F): 60 lb
Certifications: cULus
Standard Packaging Quantity: 50 pc (sold individually)
