Caddy CAT64HP 4" J-Hook w/ 3/16" Angle Bracket, CAT6a Compliant

$15.14
Reference#: 70363
Item#: CAT64HPAFAB3



Description

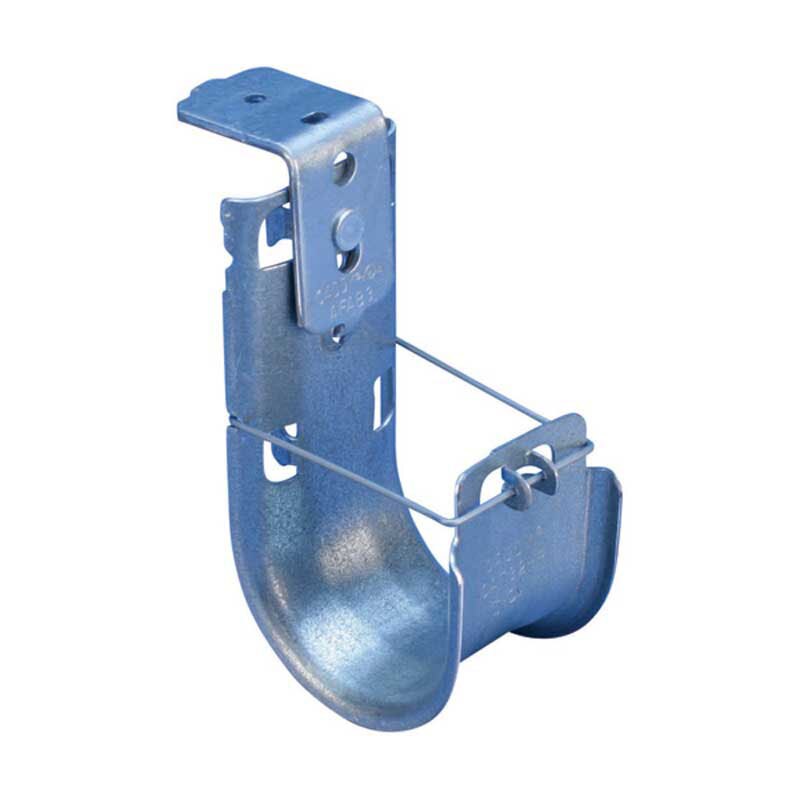

CADDY CAT64HPAFAB3 J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables, fiber optic cables, innerduct and coax cables. Individual CADDY CAT64HPAFAB3 J-Hooks can be fastened directly to the building structure or can be used to expand existing CADDY CAT HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation. The attached angle bracket is pre-installed, making installation fast and easy.

The large CAT64HPAFAB3 4" j-hooks can hold approximately 330 Cat5e cables, 220 Cat6 cables or 140 Cat6a cables.

You may also consider the Winnie Industries 4" J-Hook with Angle Bracket, or the CAT48HPSF 4" J-Hook with Angle Shot-Fire Bracket.

CAT64HP j-hooks are sold individually at Discount Low Voltage. Full box quantity is 25 pieces.

Features

  • Longer leg angle bracket for tool clearance
  • Designed to fit a variety of pin drivers
  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
  • Cost effective alternative to expensive cable tray
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569

    • Specification

    Part Number: CAT64HPAFAB3
    Material: Steel
    Finish: Pregalvanized
    Diameter (Ø): 4"
    Area: 15.48 in²
    Cable Capacity, Cat 5e: 330
    Cable Capacity, Cat 6: 220
    Cable Capacity, Cat 6A: 140
    Hole Size (HS): 3/16"
    Static Load (F): 60 lb
    Certifications: cULus, DIN 4102-12 abP P-3117/339/14-MPA BS (Germany)
    Standard Packaging Quantity: 25 pieces (sold individually)
    UPC: 78285671659
    EAN-13: 8711893125832
