Erico Caddy MP1S Single-Gang Drywall Ring for New Construction (Sold Individually)

$2.39
Reference#: 70381
Item#: ERICO-MP1S



Description

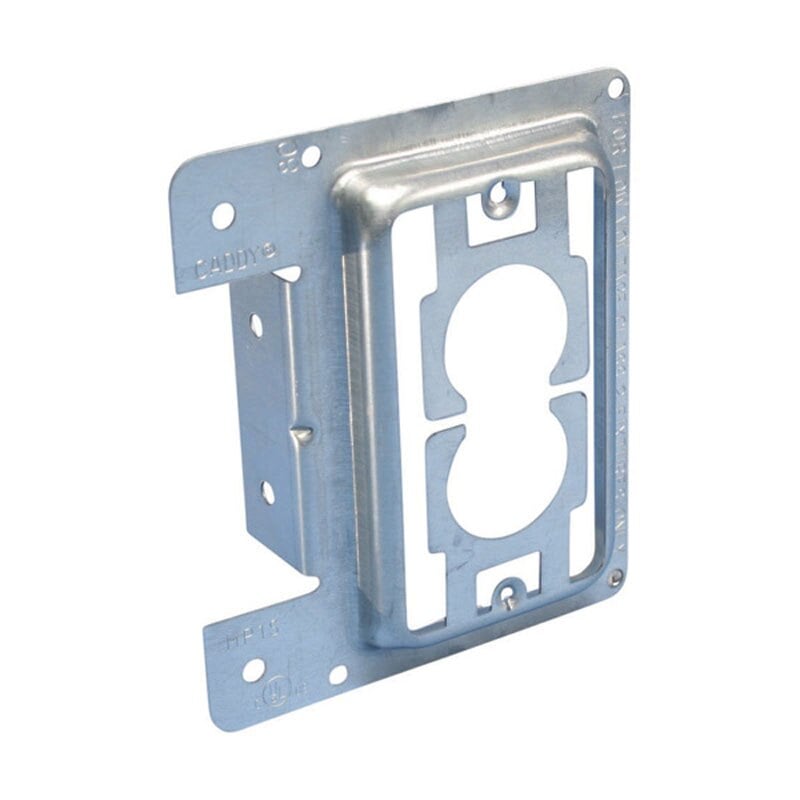

Erico Caddy MP1S Single-Gang Drywall Ring

Erico Caddy MP1S Drywall ring is designed for new construction in commercial or residential applications. Used for mounting low voltage Class 2 communication outlets.

Applications: - Provides a bracket for mounting low voltage Class 2 communication outlets

Features

• Installs easily with self-tapping screws or nails
• Side support provides for a rigid installation
• May be installed to the front or the side of the metal or wood stud
• Reduces bulges in the dry wall caused by plaster rings
• Works with 12.7 mm (1/2") and 15.9 mm (5/8") dry wall
• Also available in double-gang (MP2S Double-Gang Drywall Ring)
• Provides a bracket for mounting low voltage Class 2 communication outlets

Specification

See "Downloads" tab for Technical Drawing Specs

Part Number: MP1S
Material: Steel
Finish: Pregalvanized
Gang: 1
Drywall Thickness: 1/2" – 5/8"
Certifications: cULus
Standard Packaging Quantity: Sold Individually (25 pieces per box)
UPC: 78285648660
