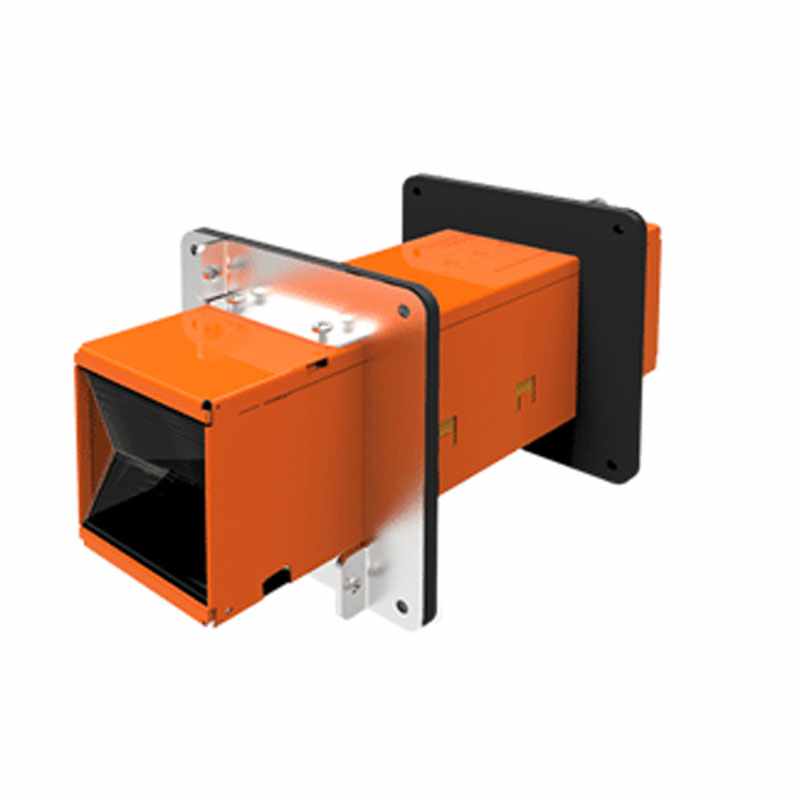

Specified Technologies Series 44 Split Wall Plate Kit (with device & wall plates)

The Split Wall Plate is engineered to facilitate the installation of the EZ-Path® Series 44+ pathway in fire-rated walls. The pathway is designed to be installed in up to a 6 in. (152 mm) diameter round opening. The plate is comprised of two halves that are secured together using screws and nuts and can be pre assembled or assembled around the pathway. The two-piece plates and split intumescent gaskets are designed to make possible installations around existing cable bundles or to replace non self sealing sleeves. Suitable drywall or concrete anchors (purchased separately) may be required to fasten the assembled pathway/plate to the wall. Check appropriate UL Classified design for additional information.

Before installing, using split gasket as a template, confirm that the assembled plates will overlap the wall openings on both sides by a minimum of 1” (25 mm) at the four corners and by 1/4” (6 mm) everywhere else. When required, verify that fasteners will attach solidly to undamaged, structurally intact wall surfaces.

Self Sealing design provides exceptional fire and smoke leakage ratings

Allows for easy Moves, Adds, and Changes

Designed for New and Existing conditions

Variety of accessories available for any field condition

Modular grid system for riser applications

Greatest achievable cable density of any solution on the market

• Easy to install
• No firestopping required
• Firestopped at all stages of use
• UL Tested - Low Leakage!
• Acoustically Tested
• UL Classified for the complete range of its capacity
• Interlocking design for easy gang installations
• Permits cable segregation by use, type, vendor
• More than TWICE the capacity of Standard EZ-Path 33

All data, video, and communications cable bundles shall utilize an enclosed fire-rated pathway device wherever said cables penetrate rated walls. The fire-rated pathway shall contain a built-in fire sealing system sufficient to maintain the hourly fire rating of the barrier being penetrated. The self contained sealing system shall automatically adjust to the installed cable loading and shall permit cables to be installed, removed, or retrofitted without the need to remove or reinstall firestop materials. The pathway shall be UL Classified and tested to the requirements of ASTM E814 (UL1479).

No maintenance of the pathway is normally required. The interior of the device should be inspected before and after any modifications to the cable bundle. If any damage to the intumescent pads lining the top and bottom of the pathway is found, contact the factory to obtain replacements.

The use of this device is subject to local, regional and national codes. Consult the local Building Code Official or Authority Having Jurisdiction regarding any regional or local requirements that might influence the selection or use of this product.
