Specified Technologies EZ-Path Series 33 Fire-Rated Pathway Retro-Fit Kit - Device w/ Retro-Fit Wall Mounting Plates and Labels

$240.97
Reference#: 73372
Item#: EZDP33WR



Description

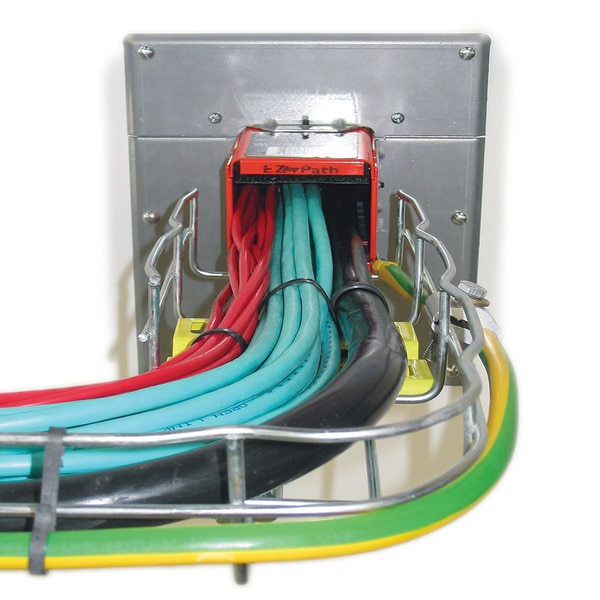

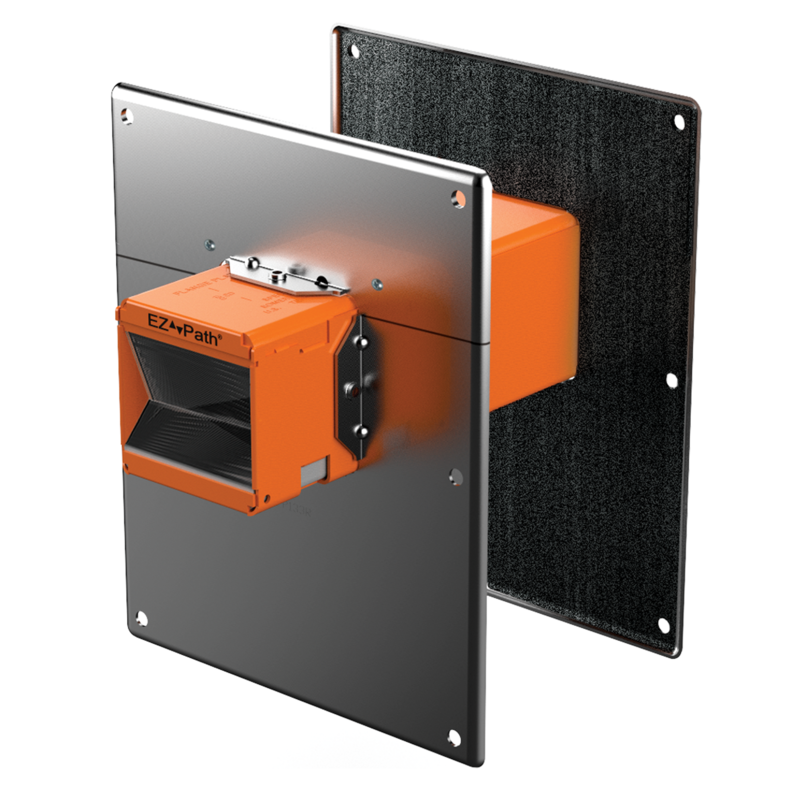

EZ-Path Series 33 Wall Kit is a multi-purpose split mounting plate designed to facilitate EZ-Path® installations around previously installed cables or in new or existing cabling applications where a large opening or opposing offset openings have been created in either gypsum board or masonry block walls.
Plates are designed to overlap the wall openings on both sides by 1 in. (25 mm) in all directions, permitting fasteners to be attached solidly to undamaged, structurally intact wall surfaces.

Features

  • Oversized to accommodate for misshapen openings
  • Sized to address 8 in. x 10 in. (203 mm x 254 mm) openings
  • Split design for new or existing penetrations
  • Tested in Concrete Walls and Gypsum Walls
  • Can be rotated in independently of each other in 90° increments to cover irregular or offset openings

    • Specification

    Shell Composition: 0.059” Gal. Steel (1.5 mm)
    Cable Loading Area: 6 sq. in. (nom.) 39 cm2
    Allowable Cable Fill: 100% Visual
    Fire Resistance Ratings: 1,2 3, and 4 Hour
    Expansion Begins: 350F (177C)
    Volume Expansion: 15X
    Sample Cable Volume Cat 6 (0.236" OD): 88 (nom.)
    In-Service Temp.: -10F (-23C) - 120F (49C)
    Storage Temp.: Less than 120F (49C)
    Shelf Life: No Limit
