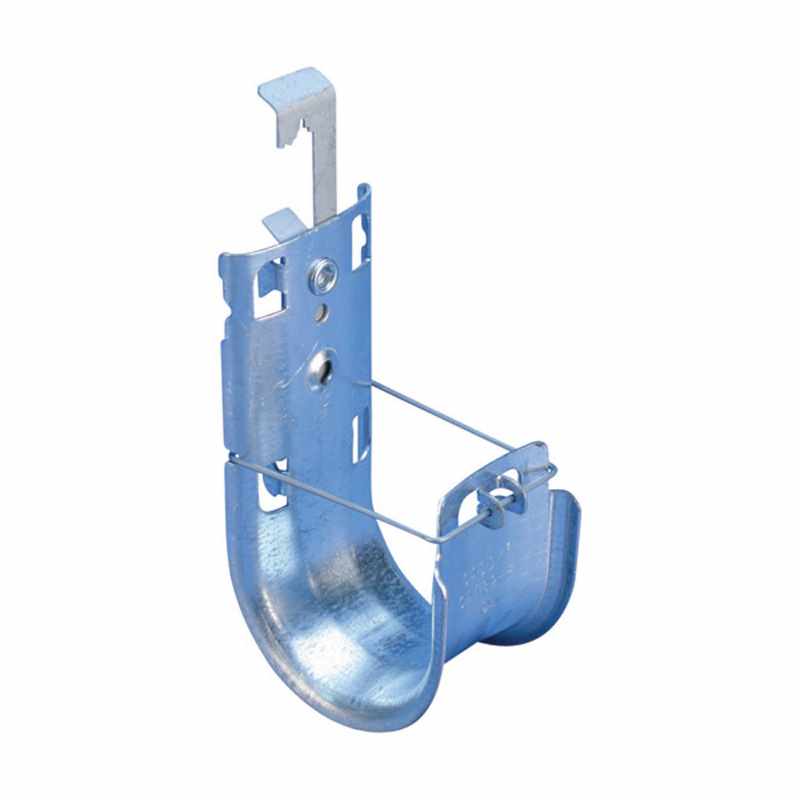

Caddy CAT32HP 2" J-Hook w/ 4Z34 Clip, CAT6a Compliant

$7.84
Reference#: 67685
Item#: ERICO-CAT32HP4Z34



Description

CADDY CAT32HP4Z34 J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables, fiber optic cables, innerduct and coax cables. Individual CADDY CAT32HP4Z34 J-Hooks can be fastened directly to the building structure or can be used to expand existing CADDY CAT HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation. The attached drop wire clip (4Z34) is pre-installed, making installation fast and easy on #12 thru 1/4" wire, plain or threaded rod and 1/8" thru 3/8" flange.

The CAT32HP4Z34 2" j-hooks can hold approximately 90 Cat5e cables, 60 Cat6 cables or 35 Cat6a cables.

You may also consider the Cable Tech Solutions CH-200 2" J-Hooks, or the smaller CAT21HP4Z34 J Hooks.

CAT32HP4Z34 j-hooks are sold individually at Discount Low Voltage. Full box quantity is 50 pieces.

Features

  • Quick attachment to threaded rod or wire
  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic cable
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
  • Cost effective alternative to expensive cable tray
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, TIA 568-C and TIA 569-C

Specification

Part Number: CAT32HP4Z34
Material: Steel Spring Steel
Finish: Pregalvanized CADDY ARMOUR
Diameter (Ø): 2"
Area: 3.97 in²
Cable Capacity: Cat 5e (90)
Cable Capacity: Cat 6 (60)
Cable Capacity: Cat 6A (35)

Rod Size (RS): 1/4"
Wire Size: #12 – #8
Static Load (F): 30 lb
Certifications: cULus
Standard Packaging Quantity: 50 pc (sold individually)
UPC: 78285671654
