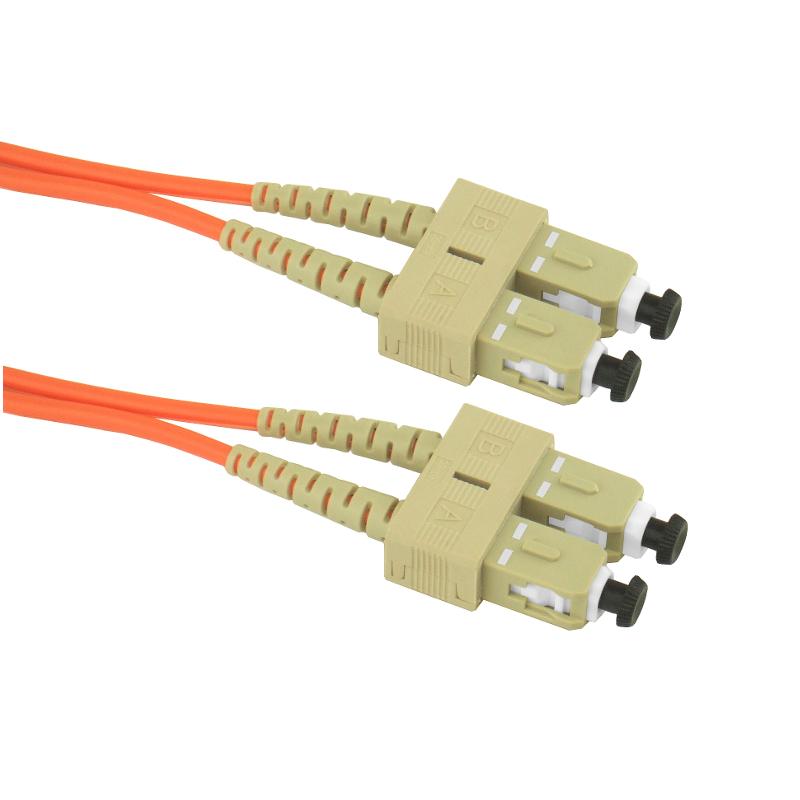

4 Meter SC-SC Duplex Multimode 62.5/125 OM1 Orange Fiber Patch Cable (13.12ft)
$7.95
Reference#: 73195
Item#: FJ224MDM
Item#: FJ224MDM
Description
Multimode is an optical fiber with a core (25-200 microns) that supports several modes. The core commonly 62.5/125 or 50/125 is stamped on the cable jacket. Always check equipment requirements or the cable jacket to determine which core Size you need. Multimode is most commonly used for lower speed, short distance applications.
Features
Assemblies are made right here in Southern California in a US ISO 9001:2000 certified factory
Full tested to Telcordia standards, for insertion loss & back reflection Single mode cables are also tested for APEX, radius and undercut
Packaged in a sealed plastic bag with cleaning instructions
Protocols include: Ethernet, Fibre Channel, Infiniband, ATM, & Internet
Core is stamped on cable jacket
Corning Fiber
Durability / 500 Mattings
Operating Temperature / -40°C ~ +75°C
Insertion Loss Typical / <0.3dB
Insertion Loss Maximum / <0.5dB
Return Loss / PC ≥ 45dB UPC ≥ 55dB APC ≥ 60dB
Full tested to Telcordia standards, for insertion loss & back reflection Single mode cables are also tested for APEX, radius and undercut
Packaged in a sealed plastic bag with cleaning instructions
Protocols include: Ethernet, Fibre Channel, Infiniband, ATM, & Internet
Core is stamped on cable jacket
Corning Fiber
Durability / 500 Mattings
Operating Temperature / -40°C ~ +75°C
Insertion Loss Typical / <0.3dB
Insertion Loss Maximum / <0.5dB
Return Loss / PC ≥ 45dB UPC ≥ 55dB APC ≥ 60dB
