Tempo (Greenlee) NC-500 Structured Wiring Troubleshooter

Reference#: 70813
Item#: GR-NC-500

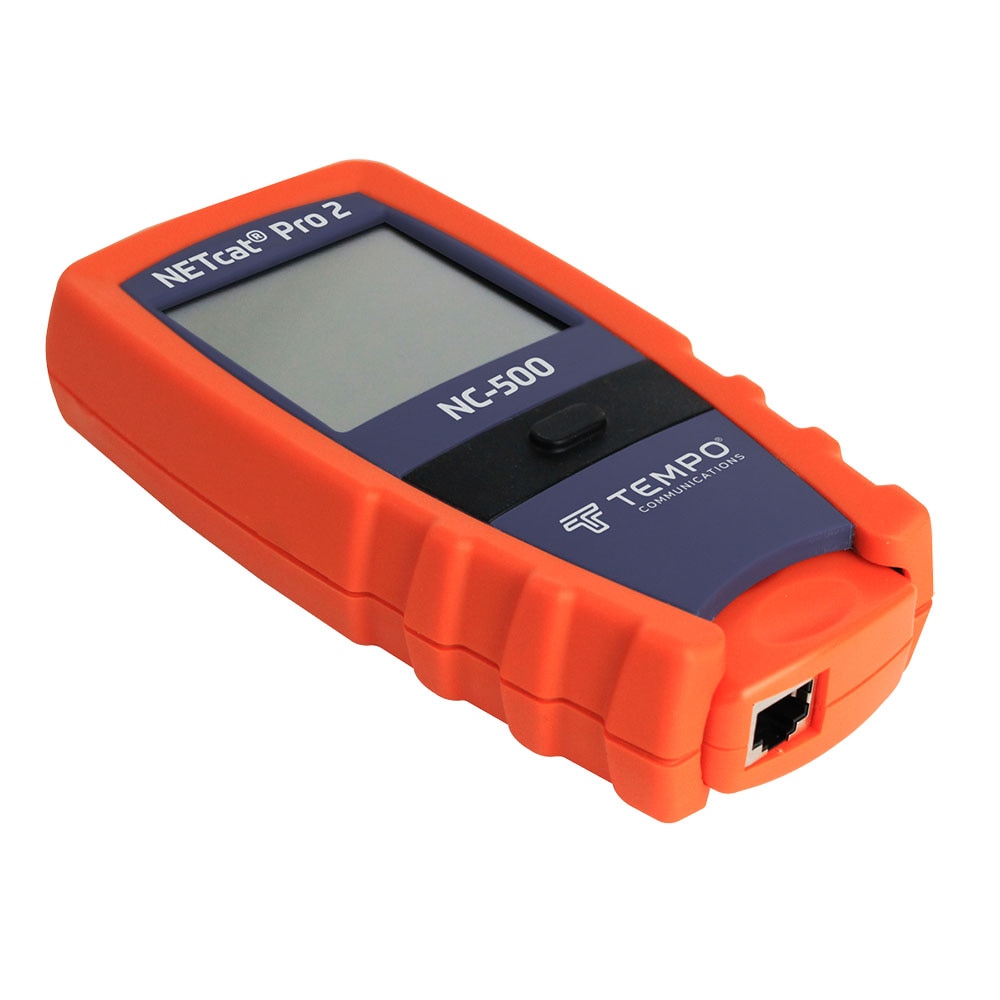

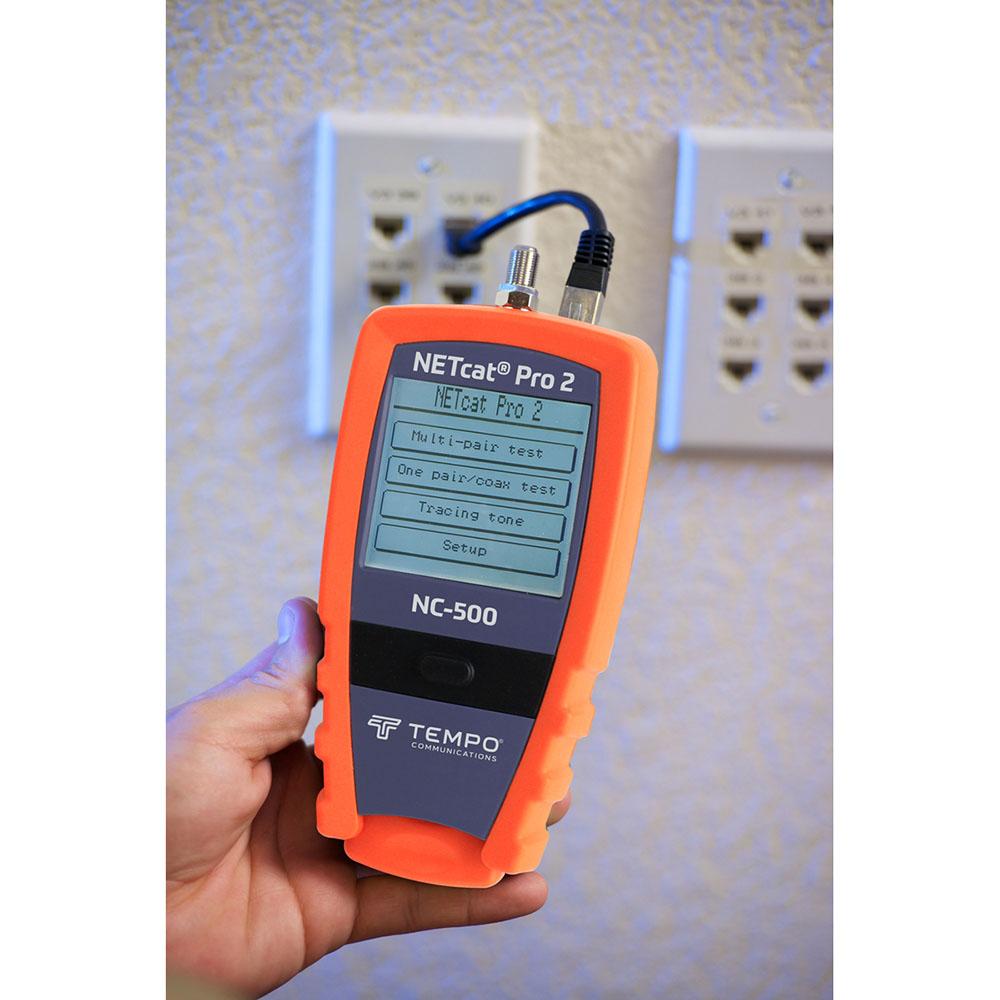

NETcat® Pro2 NC-500 Structured Wiring Troubleshooter


  • Touch screen display with contrast adjustment and back light.
  • Tests shielded twisted pair (STP) unshielded twisted pair (UTP) and coaxial cables.
  • 0-2000 foot cable length via TDR
  • Generate four distinct, precision tones for tracing low-loss cables like Cat 5.
  • Identifies active network devices (PC or Hub) on 10/100 Base-T networks.
  • Displays network device capabilities.
  • Patch cable and remote jack wire-map.
  • Detects shorts, opens, reversed, crossed and split pairs.
  • Office identification using remote ID units.
  • Troubleshoots and verifies a wide range of networks.
  • Graphical touch-screen display.
  • Remote jack ID and verification.
  • Operates on a single 9V battery, with low battery indicator. Pulsed time domain reflectometer (TDR) shows length of all pairs.
  • Compatible with Greenlee precision digital probes.


Dimensions: 3.3in. x 1.4in. x 6.7in
Weight: 0.45 lb. (200 g)
Power Requirements: 9V Alkaline battery (PP3)
