Hyperline Cat5e 4 pair Outdoor Cable, 24awg Unshielded, (1000 foot)<br>* CURRENTLY UNAVAILABLE *

$222.00
Reference#: 70854
Item#: HL-UTP4-C5E-SOLID-OUTDOOR-40



Description

Due to manufacturer material shortages, this cable is currently unavailable. Please take a look at this alternative option currently available: Condumex Outdoor Direct Burial Cat5e Cable

UTILITY

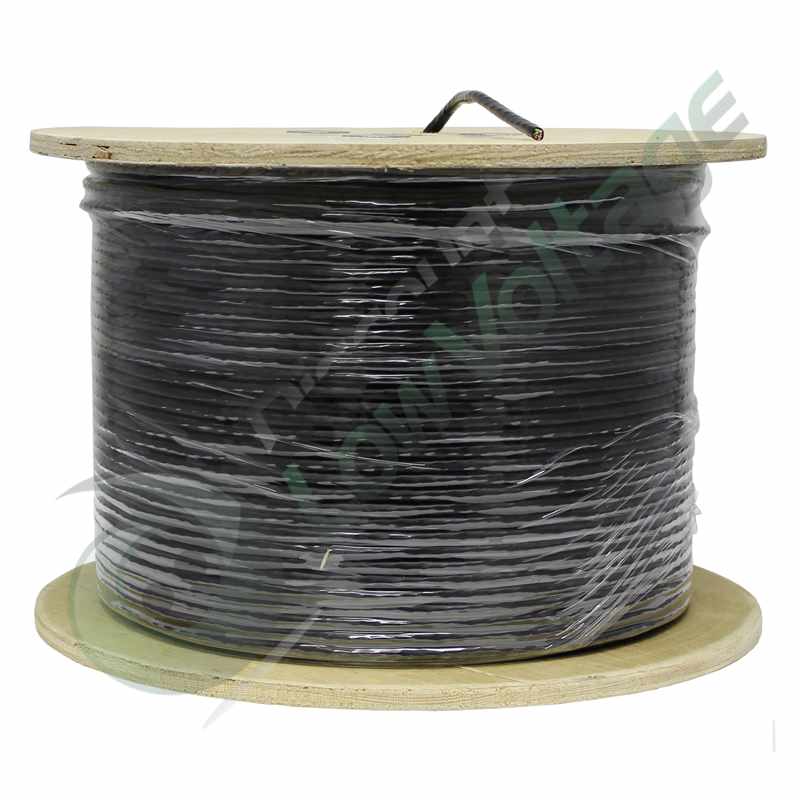

Our Hyperline Cat 5e 4 Pair 24 AWG Unshielded Outdoor Cable is made of 100 percent pure bare copper wire, rather than inexpensive copper-clad aluminum, or CCA wire. That means it fully complies with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards. We sell it on economical 1,000’ wooden spools.
AVAILABILITY
Featuring a UV-rated jacket, this Cat 5e 4 Pair 24 AWG unshielded outdoor cable is recommended for aerial applications when support cables are present. It is not recommended for direct burial applications.
·Bright, easily visible colors
·Footage markings on cable
·No messy gel
Free shipping is available on qualified orders totaling $200 or more, with delivery typically taking two to five business days. Quicker methods are also available.
VALUE
Save even more on this quality cable when you take advantage of our quantity discounts on orders of four or more 1,000-foot spools. If you have questions, call us toll-free for expert advice.

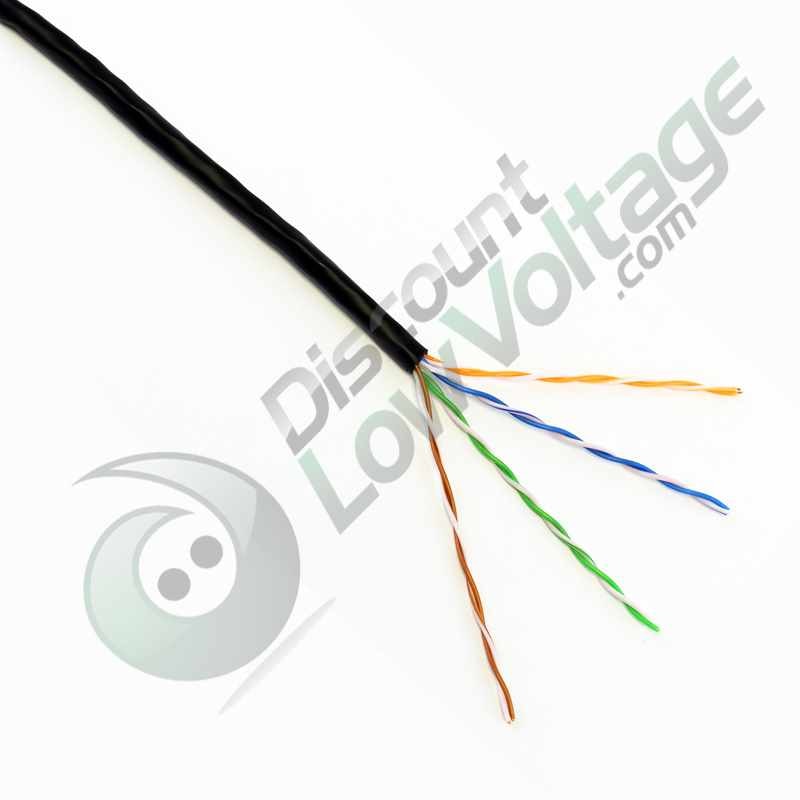

Hyperline Cat5e cable has 4 pairs of solid copper conductors, a PE outdoor rated jacket, and is suitable for aerial applications (if support cables are present). Unshielded twisted pair, 24awg construction. Sold per 1,000ft on wood spools. This cable is not recommended for direct burial applications.

All Category 5e cables sold at Discount-Low-Voltage.com are made of 100% pure bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.

Features

- Solid copper conductors
- Footage markings on cable
- UV rated jacket for aerial applications
- No messy gel to deal with
- Bright, easy to see colors on the cable

Specification

  • Meets ANSI/EIA/TIA 568-B.2 requirements
  • Fire protection – CMX
  • The cable meets UL 444 UL 1581 fire safety standard
  • Conductor diameter: 0.51 mm (0.02") (24 AWG)
  • Insulated conductor diameter: 0.036" ± 0.001" (0.92 ± 0.02 mm)
  • Outer cable diameter: 5.3 ± 0.2 mm (0.2" ± 0.008")
  • Jacket thickness: 0.024" (0.6 mm)
  • Minimum bend radius: 4 outer cable diameters
  • Conductor elongation: 14% minimum
  • Pulling strength: 1500 N
  • Breaking strength: 2000 N
  • Installation temperature: -10°C – +50°C (+14°F – +122°F)
  • Operating temperature: -40°C – +60°C (-40°F – +140°F)
  • Weight per 1000 ft (304.8 m): 8.5 kg (18.8 lbs)
  • Rip cord has a breaking strength of 22 lbs (98 N)
