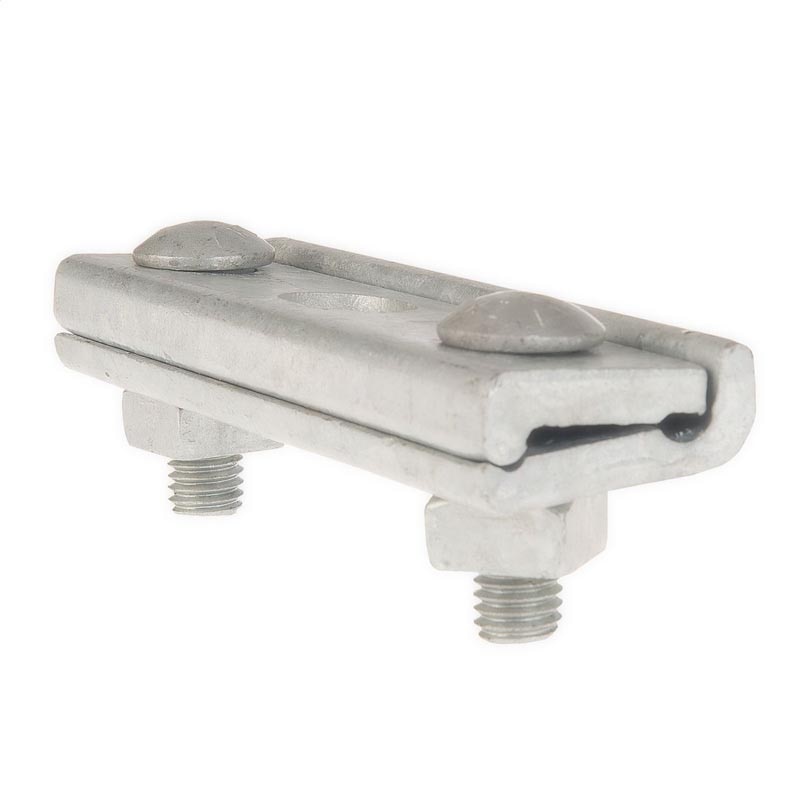

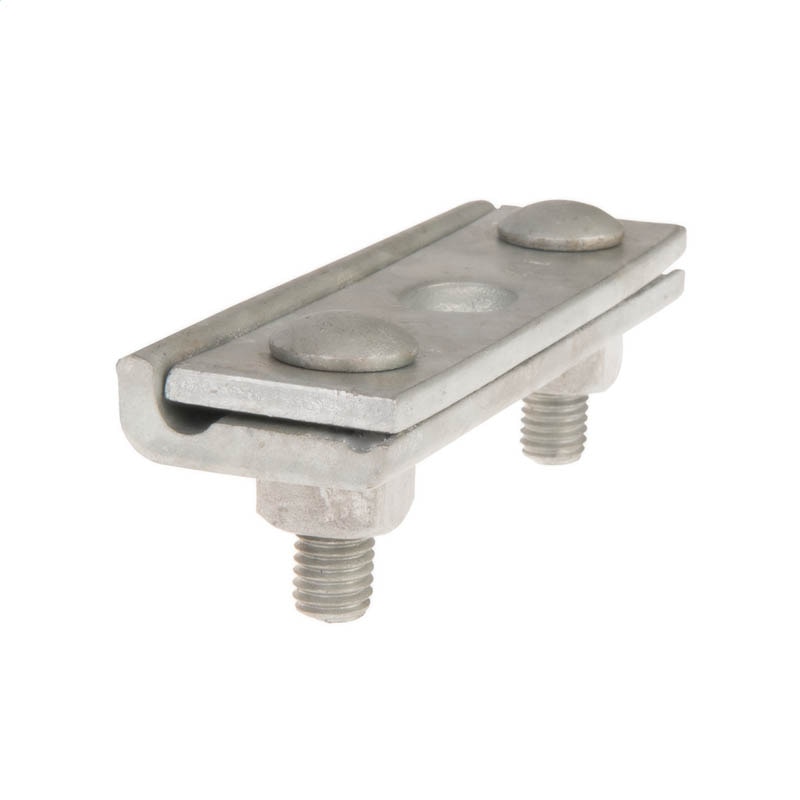

Hubbell Power Systems Two-Bolt, Flat Keeper Plate Straight Line Clamp

$21.95
Reference#: 70878
Item#: HPS-7903L



Description

Clamps are used with through bolts to support cable at poles. Through bolt also serves as clamping member. One or more nuts and/or washers are used between the pole and clamp for required spacing.

Specification

Mounting Bolt Hole Dia.
  • 11/16" x 15/16"
Messenger Cable Dia.
  • 1/4" to 7/16"
Clamp Length
  • 5 3/4"
Clamp Bolt Dia.
  • 1/2" x 1-5/8"
Approx. Ship Wt. per Each
  • 1.77 lbs.

* 4" Between the 2 mounting bolt holes
