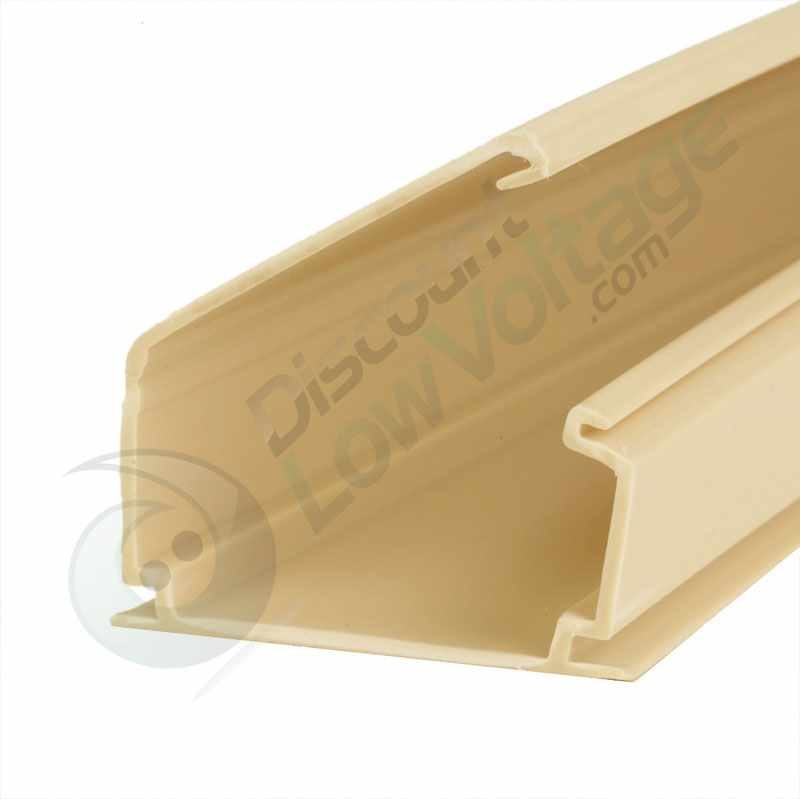

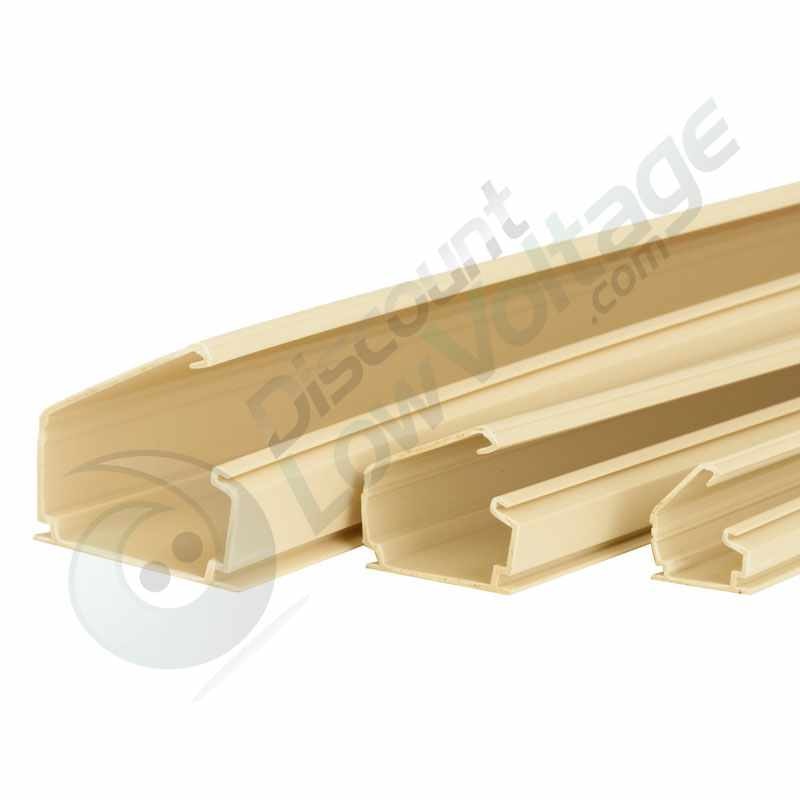

Hellermann Tyton 1.75" Cable Raceway - 6 Foot Stick- Ivory

Reference#: 70948
Item#: HT-TSR3I-6A


The Hellermann Tyton TSR3I-6A low voltage cable raceway cable cover system is a one piece latching duct designed to contain, route and protect wire and cable when it is not feasible to run it within the wall. This 1.75" ivory cable raceway is manufactured from a 94 V-0 PVC and features a superior adhesive which conforms to most any surface.

Designed with a flexible hinge, the raceway allows numerous openings without creating discoloration or stress cracking. The self-locking, hidden positive latch allows for quick re-entry as well as secure installation of voice/data cabling, as well as fiber optic cable. This cable raceway is paintable to match any wall color and is sold individually in 6ft pieces.

Note: When mounting surface raceway on the ceiling, it is recommended to use nails or screws in addition to the adhesive backing.


TSR3I-6A Raceway Features

• Tamper resistant, self-locking hidden positive latch permits quick re-entry as well as providing a secure installation of premise wire
• Fittings incorporate a minimum 1” bend radius per ANSI/TIA-568-C and 569-A standards
• Rubber-based, foam-tape adhesive with high ultimate bond strength conforms to any surface
• Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking


TSR3I-6A Specifications

Color - Ivory
Length - 6'
Width - 1.75"
Height - 1.00"
Material - Polyvinylchloride (PVC)
Flammability - UL 94 V0
Halogen free - No
Reach Complaint(Article 33) - No
ROHS Complaint - Yes
Full Box Qty - 20 pieces (sold individually)
