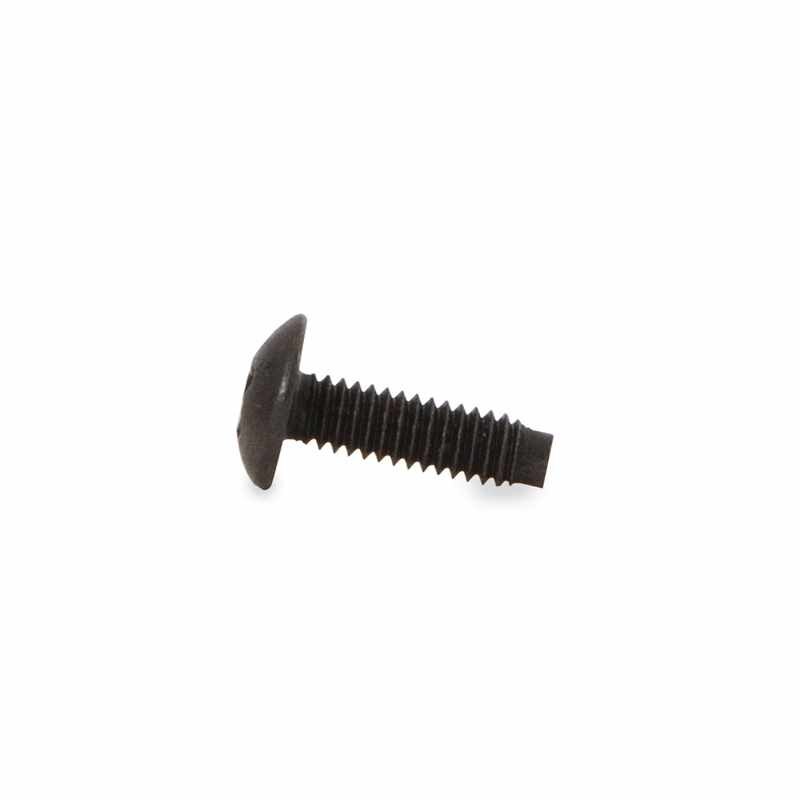

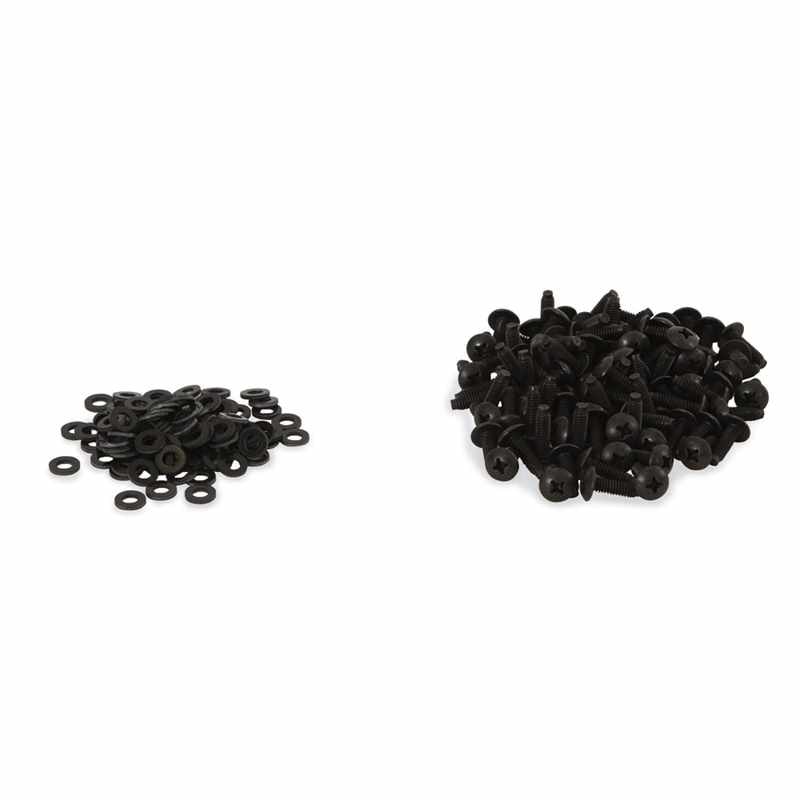

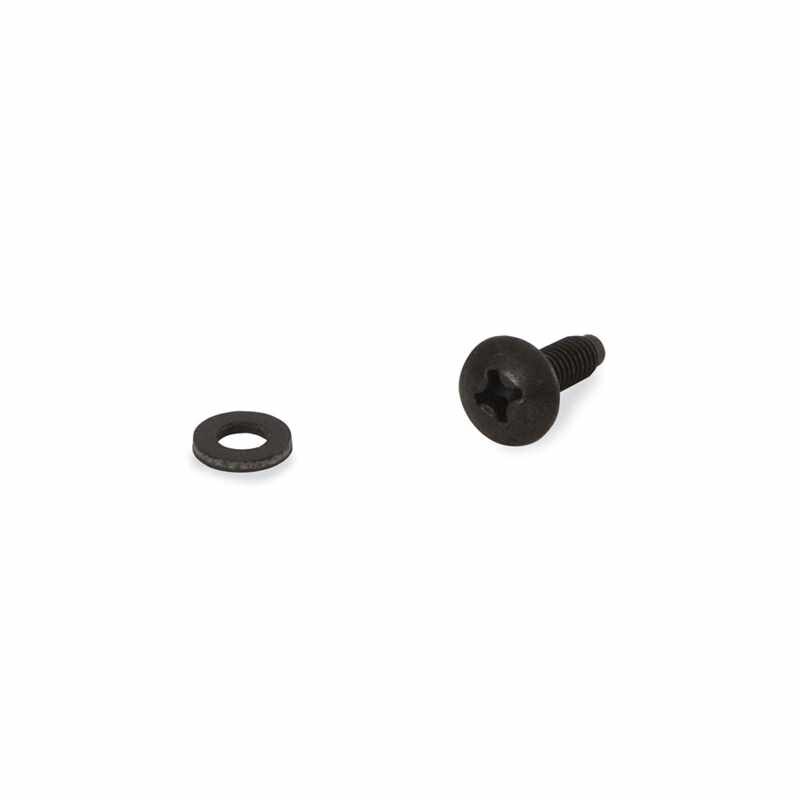

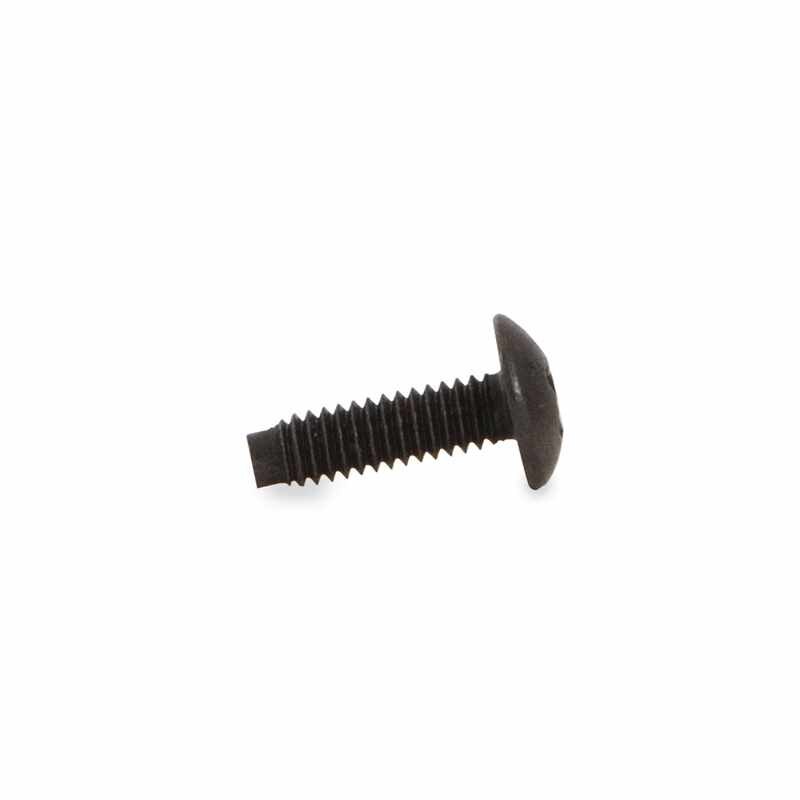

Kendall Howard 12-24 Rack Screws w/ Washers - 2500 Pack

Reference#: 71143
Item#: KH-0100-3-300-03


The Kendall Howard 12-24 Rack Screws with washers are not your everyday hardware store item. These superior, American-made, quality screws should be your only choice for securing rackmount devices such as shelves, cable managers, servers, and other network, A/V and electronic equipment.


Dog/Pilot Point:
  • The straight pointed section below the thread helps to self-guide the screw to prevent accidental stripping while also improving the ease of installation.
Phillips Truss Head:
  • Truss head screws can be installed with one of the most universal tools on the market. Requires only a Phillips head screwdriver or bit.
Protective Delrin Washer:
  • Distributes the pressure of the screw head more evenly to prevent damage or scratches to your rack mountable devices.
Compatible Rail Systems:
  • Kendall Howard 12-24 rack screws can be utilized in any 12-24 tapped rail system. They can also be installed in universal cage nut style rails when used in conjunction with 12-24 cage nuts.
Superior Manufacturing:
  • The cold hardened steel construction produces a high-quality finish with excellent dimensional stability. We then take it one step further and finish them with a black oxide coating so the screw blends with most standard black network racks, cabinets, and accessories.


Part Number:
  • 0100-3-300-03
  • 0.51"
  • 0.88"
  • 0.51"
  • 25.50 lbs.
Shipping Dimensions:
  • 6" L X 6" W 6" H
Material (s):
  • Hardened Steel (rack screw) / Delrin (washer)
  • Black Oxide with Wax Finish
  • 879447003062
  • Limited Lifetime Warranty
Shipping Method:
  • FedEx Ground

  • Quantity: 2500
  • 0.75” in length
  • 12-24 pilot point
  • Phillips truss head
  • RoHS compliant
  • Made in the USA
