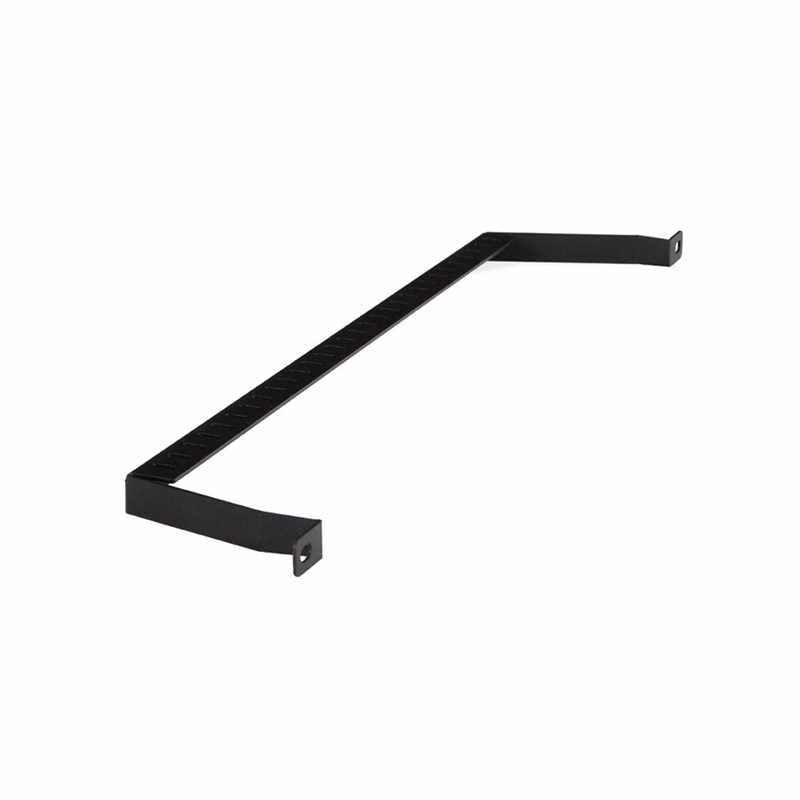

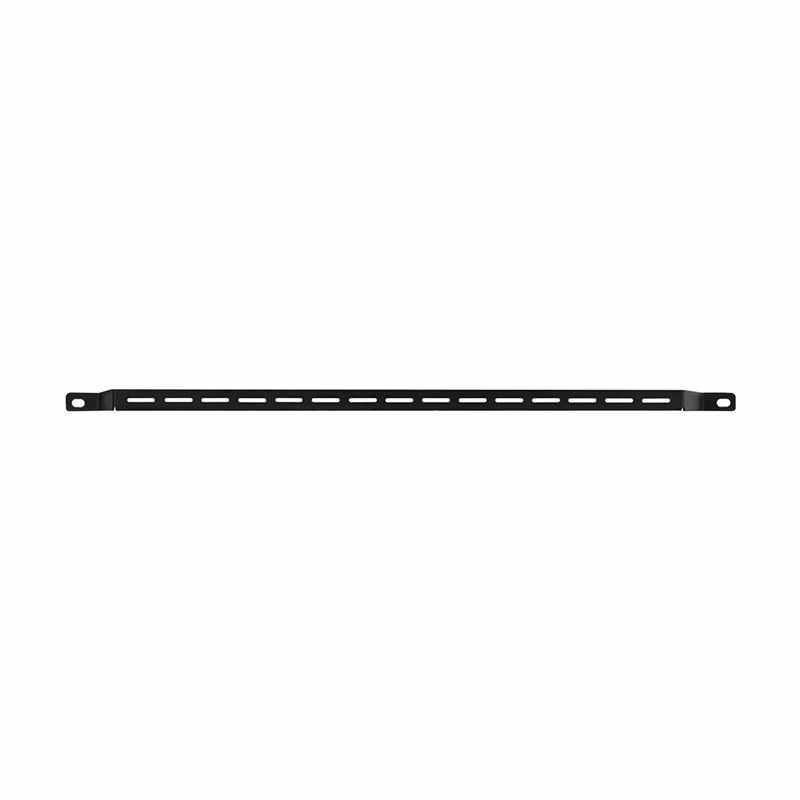

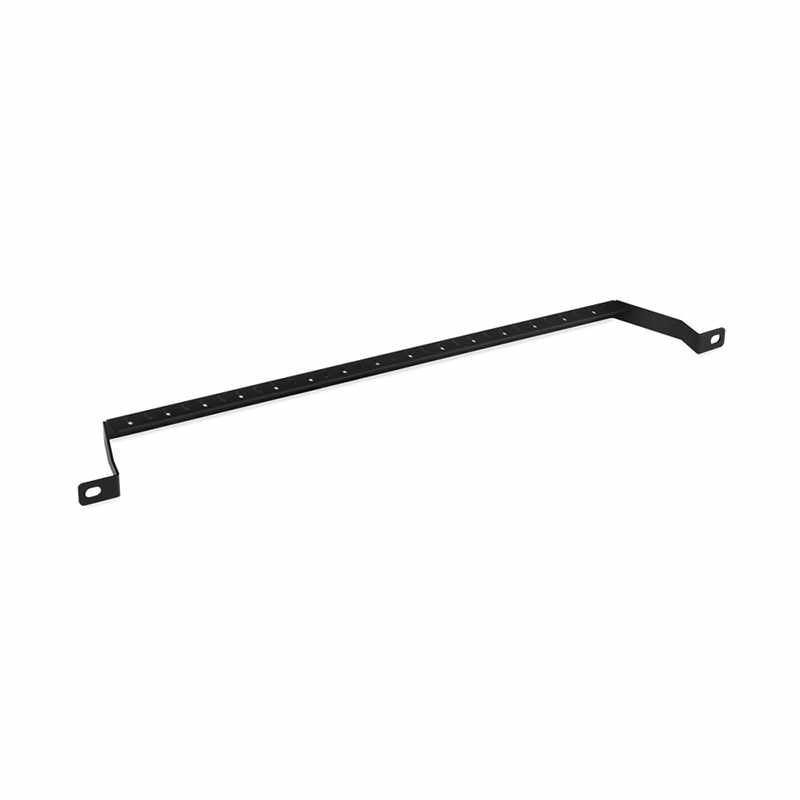

Kendall Howard 3” D Flanged Lacing Bar

$14.21
Reference#: 71177
Item#: KH-1903-1-101-00



Description

Properly manage and protect your cables with the Kendall Howard 3” D Flanged Lacing Bar. Its size and versatility makes this a true space saving cable manager. Designed to mount above, below, behind, or in front of your network devices, the 3” D Flanged Lacing Bar allows you to do more by using less space. And that’s not all. It also provides a much needed stress relief for cable connections. Crowded spaces, unorganized cables, and strained connections are no longer an issue with the Kendall Howard 3” D Flanged Lacing Bar.

Features

Space Saver:
  • Mount the bar above, below, behind, or in front of your network device, vacating valuable U space for other network installation needs. The bar itself uses less than one U space, or none at all if mounted in front of or behind equipment.
Promotes Good Bend Radius:
  • The 3” depth creates a good bend radius for cables and limits the risk of slower data speeds and broken cables.
Numerous Lacing Slots:
  • Lacing slots are included on both flanges allowing you to route cables top to bottom or left to right. These lacing slots also nearly cover the entire length of the panel allowing convenient routing to both ends.
Strain Reliever:
  • Designed to relieve cable stress and avoid pulling cables when routing them from one side of a rack to the other.
Easy to Use:
  • Simply secure cables to any of the numerous lacing slots by using the Hook and Loop Cable Ties.

Specification

Width:
  • 19"
Depth:
  • 3"
Height:
  • 0.563"
Weight:
  • 1.00 lbs.
Shipping Dimensions:
  • 20" L x 4" W x 4" H
Material(s):
  • CRS (Cold Rolled Steel)
Color/Finish:
  • Black Powder Coat Finish
UPC:
  • 879447004250
Warranty:
  • Limited Limited Warranty
