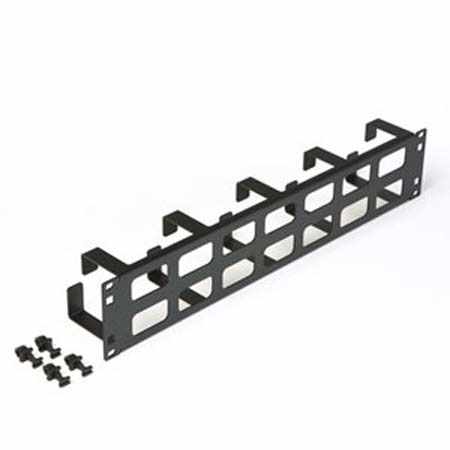

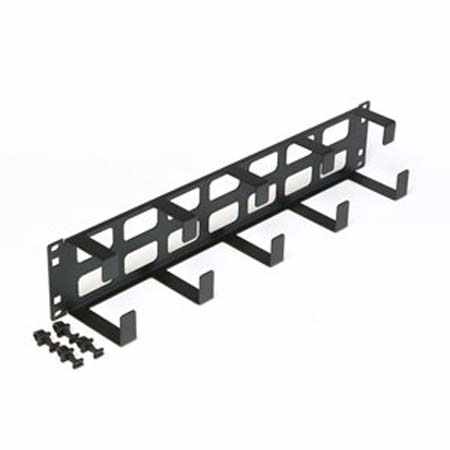

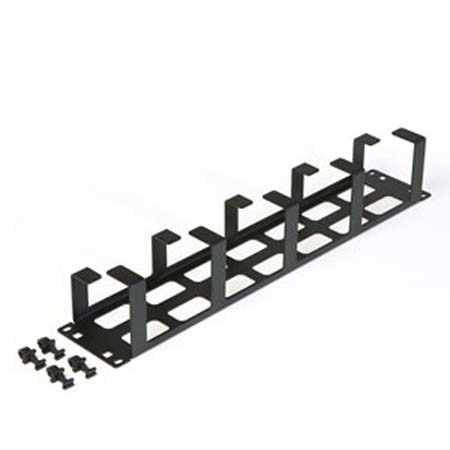

Kendall Howard 2U Tool-less 5 D-Ring Cable Manager

Reference#: 71185
Item#: KH-1903-3-100-02


The Kendall Howard 2U 5X D-Ring Cable Manager combines the best parts of our D-Ring Cable Management Kit and our Cable Routing Blanks. The blend of D-rings and cable routing cutouts make this one of the most versatile cable managers on the market! Whether you’re routing cables from the front to the back of your cabinet or organizing and supporting patch cables, this 5X D-Ring Cable Manager will be an effective tool for your IT installation.


Five D-Rings:
  • The 4.5” x 3.5” open D-rings provide a large supported area to organize and route cable bundles in 2-post racks, wall mount racks, server racks, and more.
14 Cable Cut Outs:
  • The14 large routing holes provide the support you need to run cables from the back of the rack to the front.
Various Mounting Positions:
  • Cable manager can be mounted in two different positions, maximizing your cable management options. Face the D-rings toward the front of the rack to easily manage and support patch cables, or face them toward the back of the rack where the open design provides easy support of trunk cables.
  • Included with the cable manager are tool-less clips that snap into any cage nut style rail while eliminating the need for hardware. Standard mounting holes can be used in conjunction with rack screws on tapped rails.


Part Number:
  • 1903-3-100-02
  • 19"
  • 2.264"
  • 3.47"
  • 2.50 lbs.
Shipping Dimensions:
  • 20" L X 6" W X 6" H
Material (s):
  • CRS (Cold Rolled Steel)
  • Black Powder Coat Finish
  • 879447001976
  • Limited Lifetime Warranty
Shipping Method:
  • FedEx Ground

  • 14 cable routing slots
  • Five 4.5” x 3.5” D-rings
  • 19” EIA 310-D compliant
  • Made in the USA
  • Limited Lifetime Warranty
