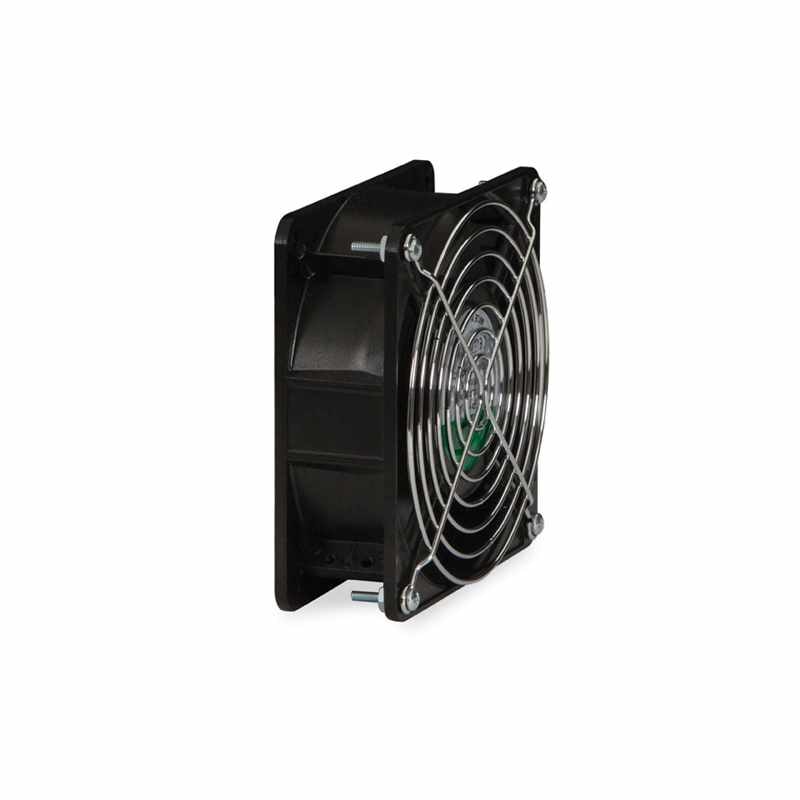

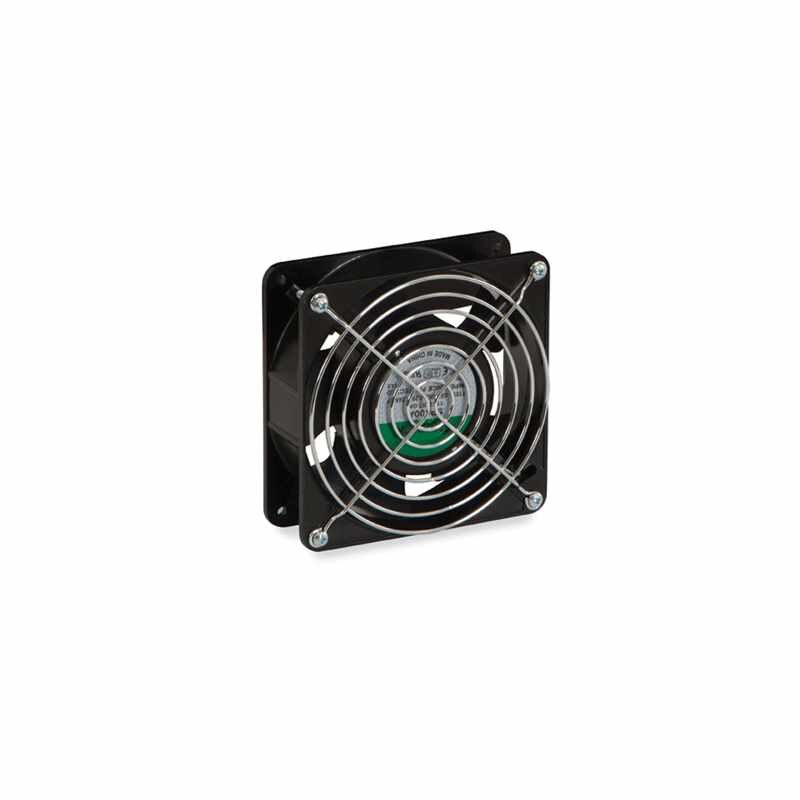

Kendall Howard High Speed Fan Assembly Kit

Reference#: 71208
Item#: KH-1908-4-001-01


The Kendall Howard High Speed Fan Assembly Kit helps to remove ambient heat that rack mount components can emit. Circulating new air into a wall mount cabinet or server enclosure helps to maintain the optimal temperature for devices such as servers, battery backups, and UPS's.


  • The fan assembly kit comes complete with one 115V / 115 CFM fan, one protective grate, one 6 ft. NEMA 1-15 power cord, and all installation hardware.
Easy to Install:
  • The Kendall Howard Fan Assembly Kit is a snap to install. Simply use the included hardware to screw into place. The fan also includes airflow and rotation guides to ensure proper installation.
  • The standard 4" fan complements all Kendall Howard cabinets and enclosures. Whether you need to cool a wall mount cabinet, full size enclosure, DVR lock box or training table cable management enclosure, this fan assembly kit will get the job done.
Optional Grounding:
  • Server rack fan features two threaded grounding holes should you need to ground the fan for your particular installation.


Part Number:
  • 1908-4-001-01
  • 4.69"
  • 4.69"
  • 1.52"
  • 2.00 lbs.
Shipping Dimensions:
  • 6" L X 6" W X 6 X H
  • Black
  • 879447004168
  • 1-Year Limited Warranty
Shipping Method:
  • FedEX Ground
Bearing System:
  • Sleeve
  •  115 VAC
Rated Speed:
  • 3100 RMP
Air Flow:
  • 115 CFM
Noise Level:
  • 49dBA
Operating Temperature:
  • 14°F (-10°C to 158 °F (70°C)
Cable Length:
  • 6ft (72in)
Plug Type:
  • NEMA 1-5 (type A)

Ball bearing design
115V / 115 CFM Fans
Impedance protected
RoHS compliant
Includes power cord, fan guard, and installation hardware
1-Year Limited Warranty
