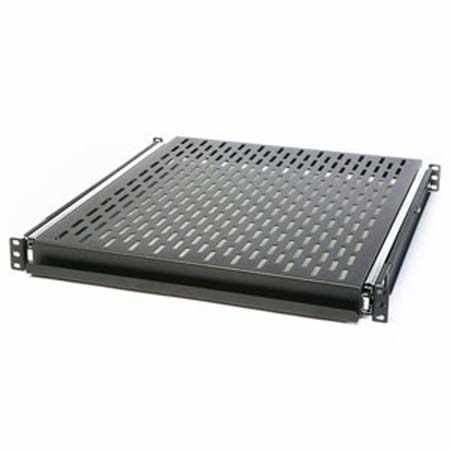

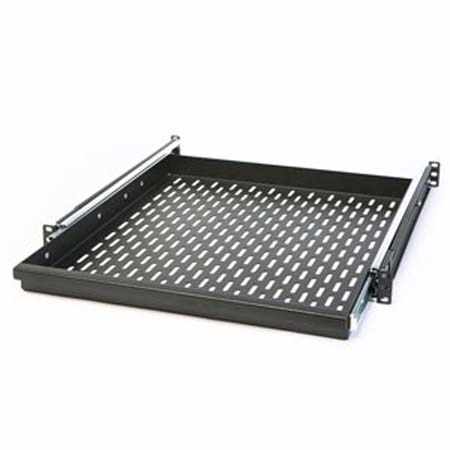

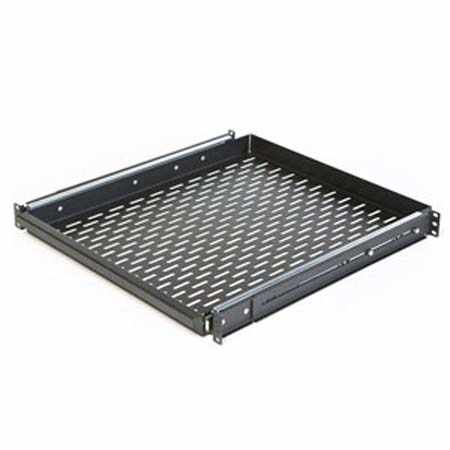

Kendall Howard, 20" Vented Rack Mountable Sliding Shelf (100 lb)

Reference#: 71248
Item#: KH-1922-3-400-01


Kendall Howard manufactures and stocks two models of our sliding rack shelves (solid and vented), each holding up to a 100 lbs. Our sliding rack shelves are perfect for servers, keyboards, KVMs, switches, or any other component that you want the ability to slide out, either for convenience or to access the back of the equipment.


Adjustable Mounting Depth:
  • The Kendall Howard 20" deep Vented Sliding Rack Shelf has a 100 lb. maximum weight capacity. The shelf surface is 20" deep and 16.5" wide.
18" Extension:
  • The shelf extends a full 18" out of the rack making it easy to assemble the back of mission control components and maintain your network equipment.
  • The venting pattern allows for maximum air flow.
Mounting Options:
  • The mounting ears will mount in any 19" EIA compliant rack with a minimum mounting depth of 19" and a maximum mounting depth of 28". It has a built-in lip to make sliding them in and out easy. Due to their innovative design, the 20" solid sliding rack shelf can be used as a 1U drawer.
  • All Kendall Howard rack shelves are made in the USA and are backed by our Limited Lifetime Warranty.


Part Number:
  • 1922-3-400-01
  • 19"
  • Adjustable 19" - 28"
  • 1.72"
  • 14.00 lbs.
Shipping Dimensions:
  • 24.5" L x 22" W x 4.875" H
  • Black Powder Coated Finish
  • 879447002195
  • Limited Lifetime Warranty
Shipping Method:
  • FedEx Ground

  • Four mounting holes per U space
  • 20" depth
  • 100 lb. weight capacity
  • Mounting depth adjusts from 19" to 28"
  • 17.72" maximum slide extension
  • 19" EIA 310-D compliant
  • Rounded corners
  • Easy to install
  • Made in the USA
  • limited Lifetime Warranty
