Kendall Howard, 37U LINIER® Server Cabinet - Glass/Vented Doors - 24" Depth

Reference#: 71269
Item#: KH-3100-3-024-37


The 3100 series is one of Kendall Howard’s best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 24” depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!


Easy Installation:
  • Casters and levelers are pre-installed to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Removable Cable Access Panels:
  • The top of the server cabinet includes removable laser knockouts for cable access and added versatility.

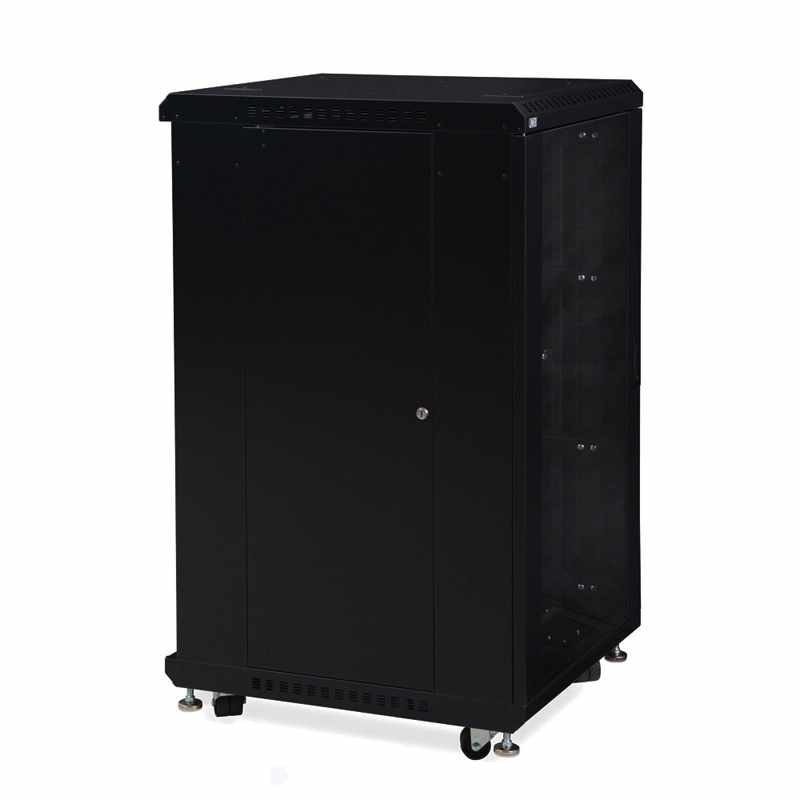

Locking, Removable Side Panels:
  • For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.
Adjustable Rails:
  • Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24” for versatile mounting options.
Secured System:
  • Both doors are equipped with locks to help protect and secure your valuable equipment.

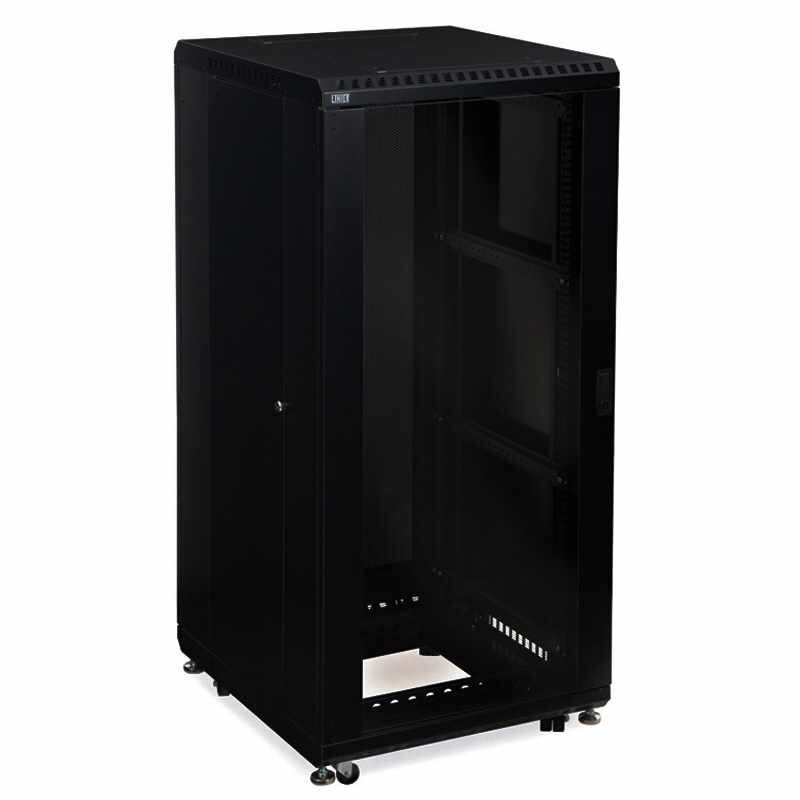

Locking Tempered Glass Door:
  • The locking tempered glass door allows installers to easily access and view their network equipment.

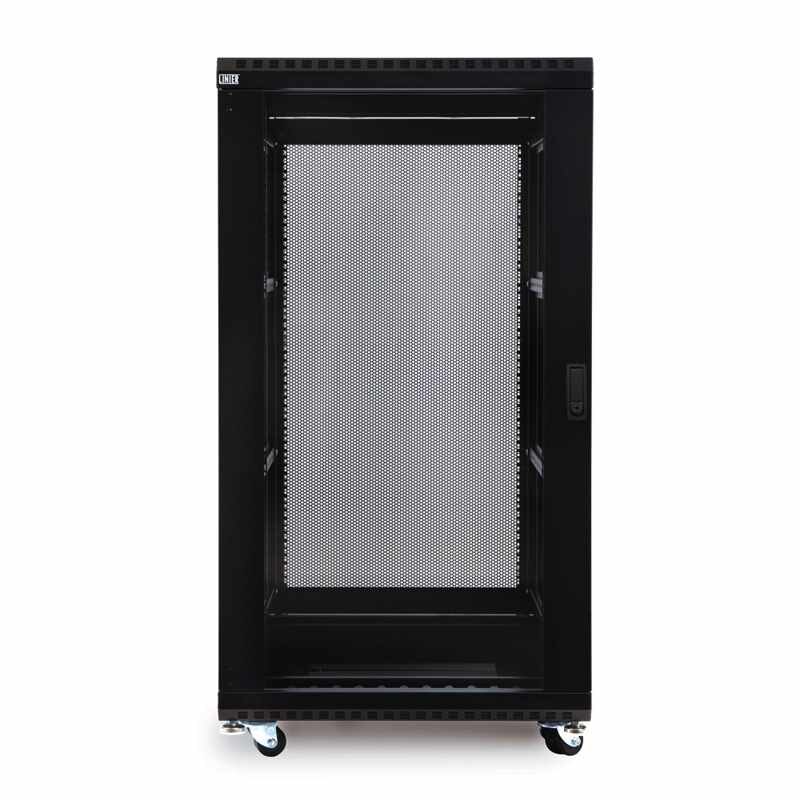

Locking Vented Door:
  • The locking perforated door promotes better air circulation within the cabinet. This vented design is especially helpful for equipment that generates a lot of heat, such as servers, UPS’s, and more.


Part Number:
  • 3100-3-024-37
  • 24"
  • 27" (24" usable depth)
  • 71.75"
  • 179.00 lbs.
Shipping Dimensions:
  • 32" L x 45"  W x 79" H
  • Black Finish
  • 879447005424
  • 5 Year Limited Warranty
Shipping Method:
  • LTL Freight

  • Includes one locking tempered glass door and one locking vented door
  • Removable locking side panels
  • 24”depth (Also available with a 36” depth)
  • Other sizes available: 22U, 27U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Includes pre-installed casters and levelers
  • Includes two sets of adjustable cage nut style mounting rails
  • Top includes removable laser knockouts
  • 19” EIA 310-D compliant
  • Made in the USA
  • 5-Year Limited Warranty
