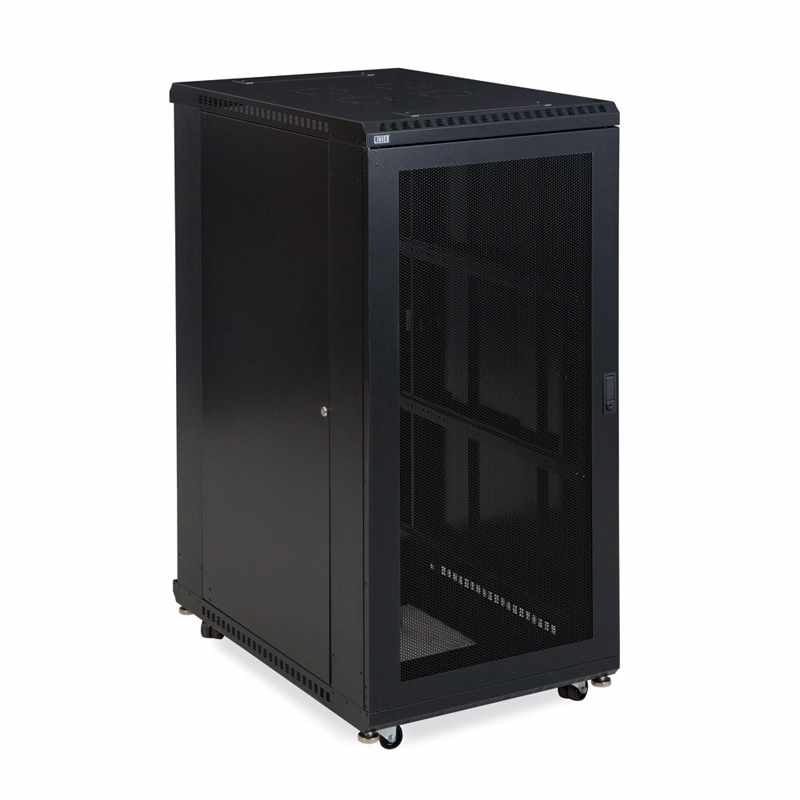

Kendall Howard, 27U LINIER® Server Cabinet - Vented/Vented Doors - 36" Depth

Reference#: 71320
Item#: KH-3107-3-001-27


The 3107 series is one of Kendall Howard’s best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 36” depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!


Easy Installation:
  • Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Removable Cable Access Panels:

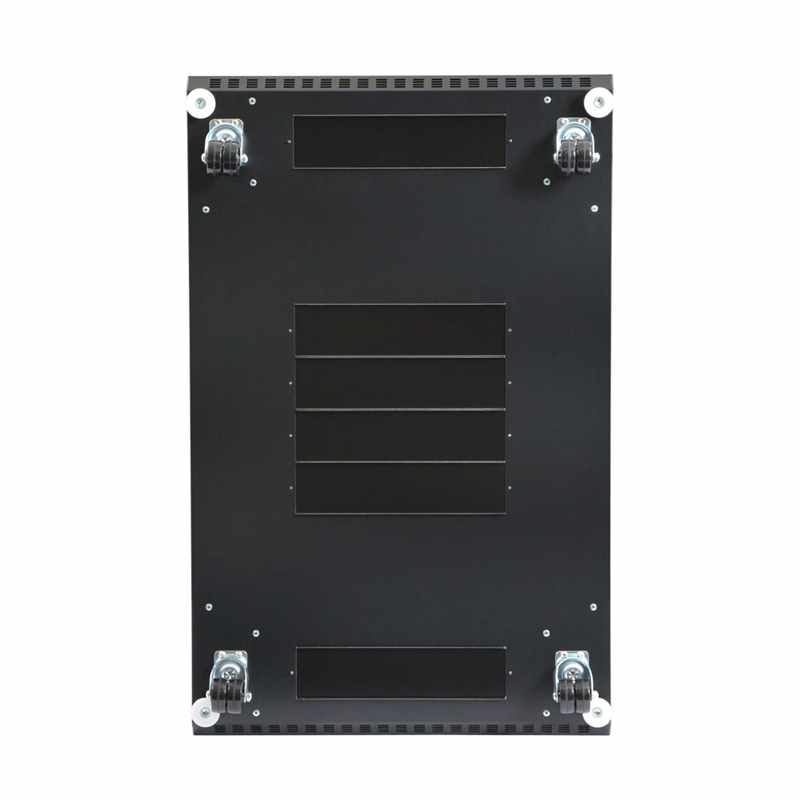

  • The top of the server cabinet includes removable laser knockouts for cable access and added versatility.
Locking, Removable Side Panels:
  • For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.
Adjustable Rails:
  • Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36” for versatile mounting options.
Secured System:
  • Both doors are equipped with locks to help protect and secure your valuable equipment.

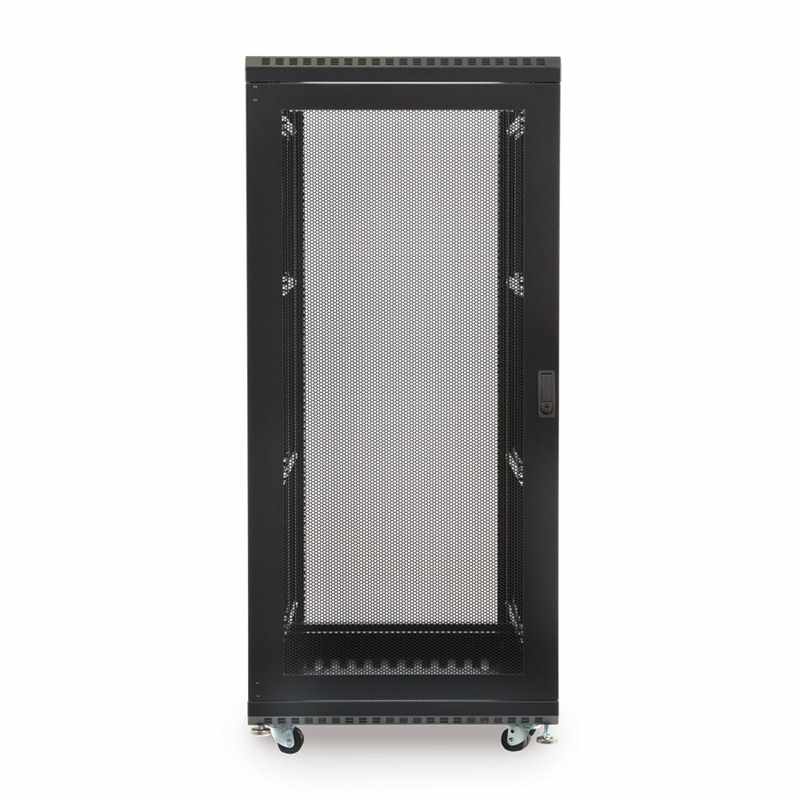

Locking Vented Doors:
  • The locking perforated doors promote better air circulation within the cabinet. This vented design is especially helpful for equipment that generates a lot of heat, such as servers, UPS’s, and more.


Part Number:
  • 3107-3-001-27
  • 24"
  • 37.72" (36" usable depth)
  • 54.25"
  • 165.00 lbs.
Shipping Dimensions:
  • 32" L x 45" W x 61" H
  • Black Finish
  • 879447004618
  • 5-Year Limited Warranty
Shipping Method:
  • LTL Freight

  • Includes two locking vented doors
  • Removable locking side panels
  • 36” depth (Also available with a 24” depth)
  • Other sizes available: 22U, 37U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Includes preinstalled casters and levelers
  • Includes two sets of adjustable cage nut style mounting rails
  • Top includes removable laser knockouts
  • 19” EIA 310-D compliant
  • Made in the USA
  • 5-Year Limited Warranty
