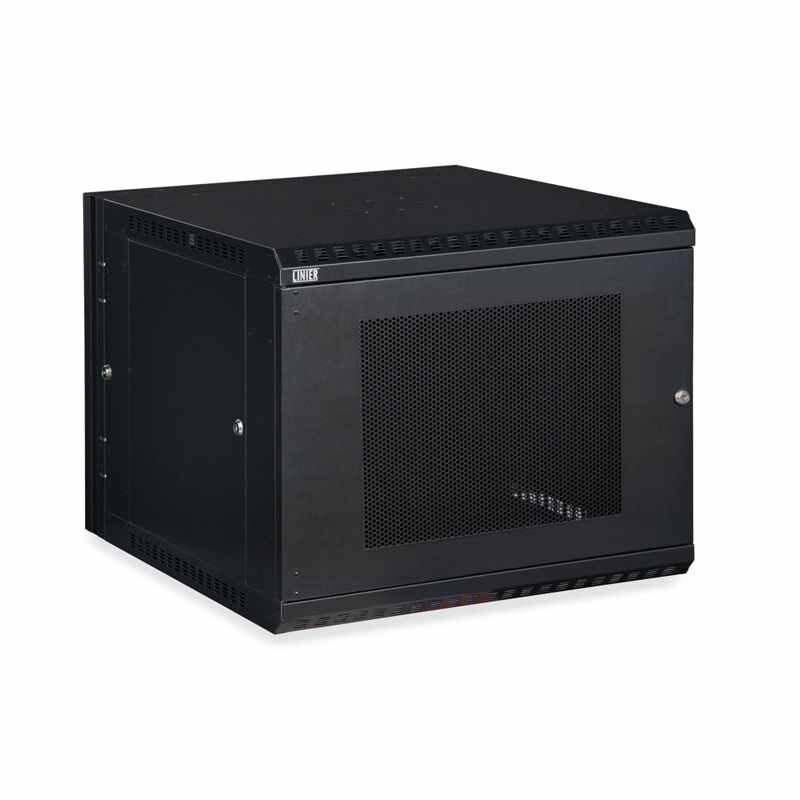

Kendall Howard, 9U LINIER® Swing-Out Wall Mount Cabinet - Vented Door

Reference#: 71356
Item#: KH-3132-3-001-09


The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don’t work around the rack…get a rack that works around you!


Economical Design:
  • Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.
90 Degree Swing-Out:
  • Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.
Numerous Laser Knockouts:

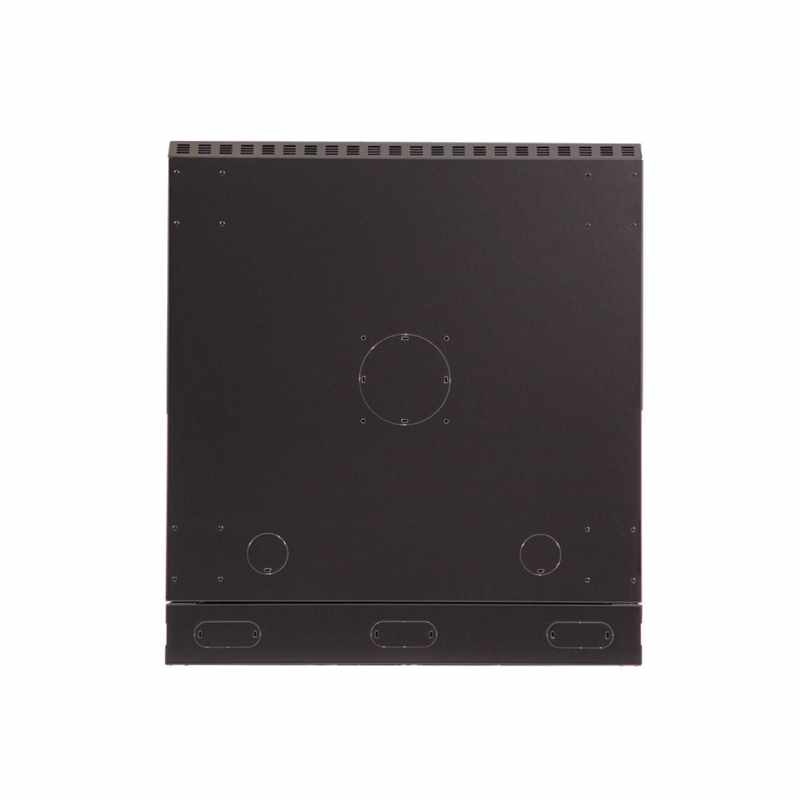

  • Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Adjustable Rails:
  • The included set of cage nut style rails fully adjust in 1” increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.
Removable Side Panels:
  • Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
Reversible Vented Door:
  • Vented door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The vented door allows for ventilation for your network system.


Part Number:
  • 3132-3-001-09
  • 23.5"
  • 25.99"
  • 18.88"
  • 58.00 lbs.
Shipping Dimensions:
  • 29" L x 31" W x 26" H
  • Black Finish
  • 879447005233
  • 5-Year Limited Warranty
Shipping Method:
  • FedEx Ground

  • Includes one locking vented door
  • Locking side panels
  • 150 lb. weight capacity
  • One set of cage nut style mounting rails
  • 90 degree positive stop swing-out
  • Mounting depth: 22.5”
  • 19” EIA 310-D compliant
  • Made in the USA
  • 5-Year Limited Warranty
