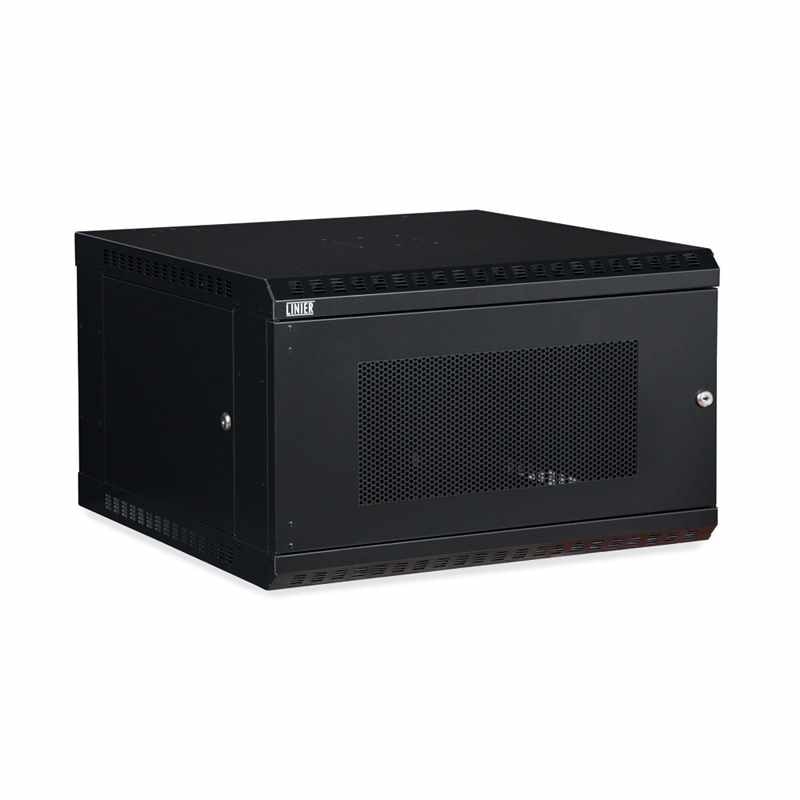

Kendall Howard, 6U LINIER Fixed Wall Mount Cabinet - Vented Door

$279.00
Reference#: 71374
Item#: KH-3142-3-001-06



Description

The LINIER line of Fixed Wallmount Cabinets is a cost effective solution when you need to mount equipment securely on the wall. Mounting in just minutes, this fixed wall rack has a vented front door and removable locking side panels. Each rack has one set of fully adjustable cage-nut style rails and removable top and bottom cable slot panels, allowing easy installation of CAT5 or fiber optic cables.

Equipment will mount in this rack using cage nuts (Not Included)

See Related Items

Features

Cost-Effective Design:
  • Innovative engineering and outside-of-the-box thinking paved the way for this durable, American-made yet economical wall mount enclosure.
Numerous Laser Knockouts:
  • Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Adjustable Rails:
  • The included cage nut style rails fully adjust in 1” increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.
Removable Side Panels:
Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
Locking Door and Side Panels:
  • The locking feature provides additional security for all three access points, to keep your valuable rack mounted equipment safe from unauthorized use.
Reversible Vented Door:
  • Vented door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The vented door allows for ventilation for your network system.

Specification

Part Number:
  • 3142-3-001-06
Width:
  • 23.5"
Depth:
  • 22.86"
Height:
  • 13.63"
Weight:
  • 41.00 lbs.
Shipping Dimensions:
  • 28" L x 28" W x 20" H
Color/Finish:
  • Black Finish
UPC:
  • 879447005349
Warranty:
  • 5-Year Limited Warranty
Shipping Method:
  • FedEx Ground



  • Includes one locking vented door
  • Locking side panels
  • 250 lb. weight capacity
  • One set of cage nut style mounting rails
  • Mounting depth: 21.5”
  • 19” EIA 310-D compliant
  • Made in the USA
  • 5-Year Limited Warranty
