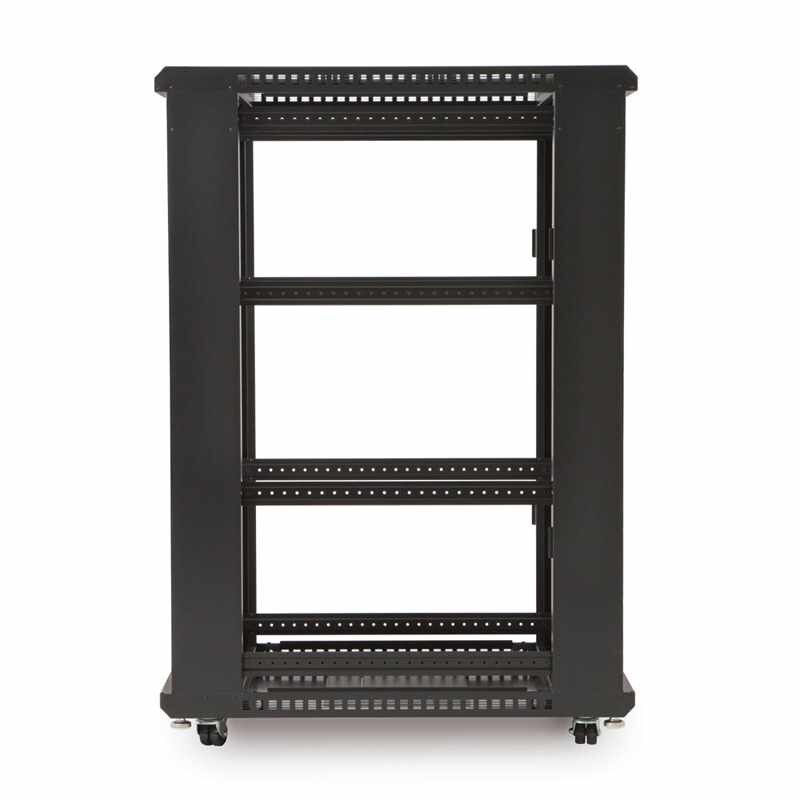

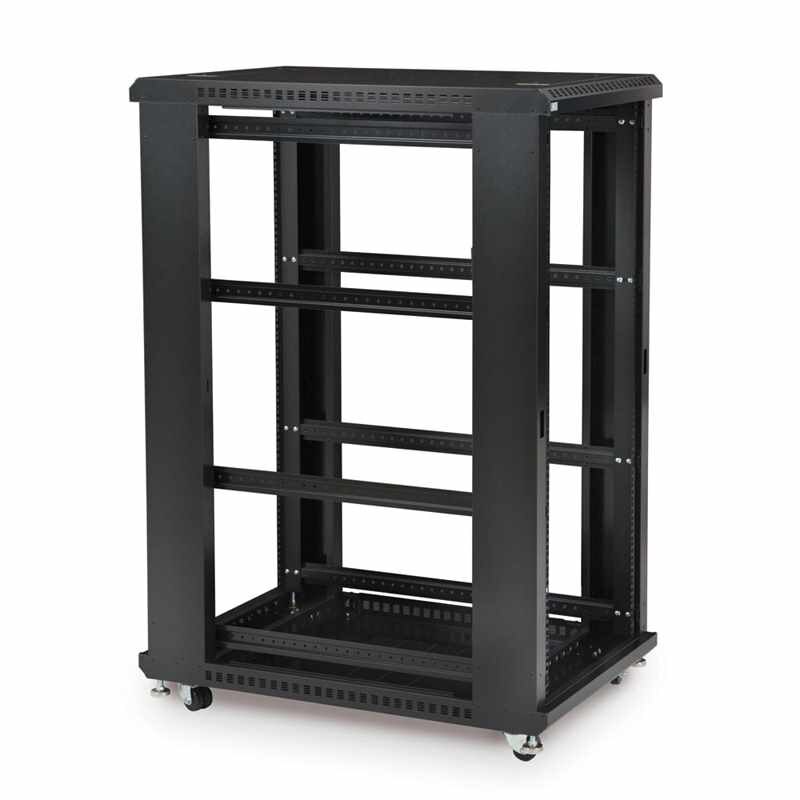

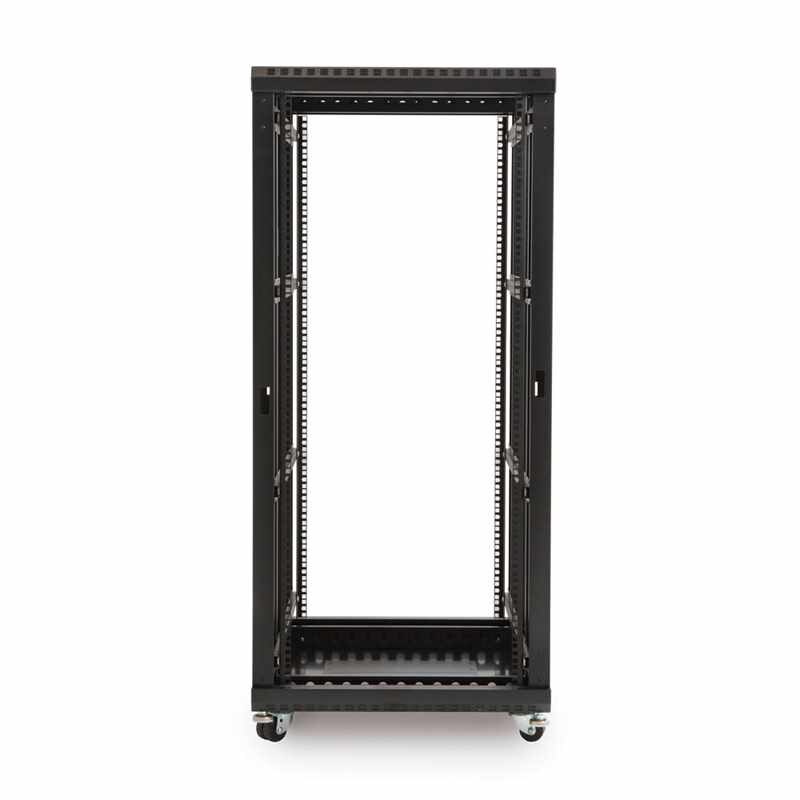

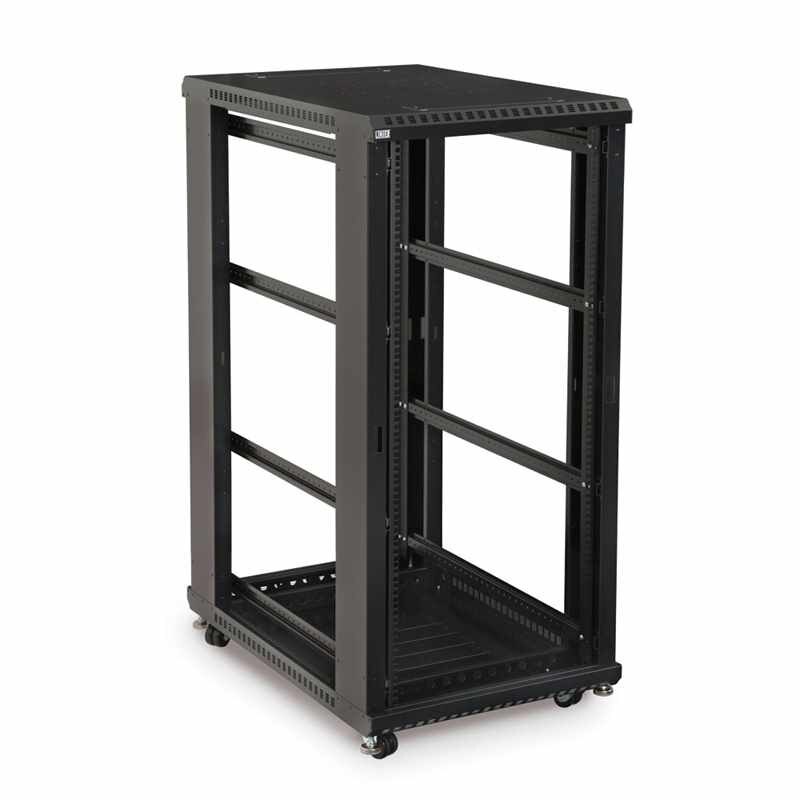

Kendall Howard, 27U LINIER® Server Cabinet - No Doors/No Side Panels - 36" Depth

$662.25
Reference#: 71401
Item#: KH-3170-3-001-27



Description


Setting itself apart from the 3100 series, the LINIER® 3170 line is a completely open server cabinet. This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 36” depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost, open frame server cabinet, the 3170 LINIER® series is your answer.

Features

Open Design:
  • The open air design allows for maximum air flow to keep your rack mount equipment cool.
Adjustable Rails:
  • The two sets of cage nut style rails adjust in 1” increments allowing you to adjust the mounting depth to suit your equipment.
Cable and Fan Knock-Outs:
  • There are numerous cable entry points on both the top and bottom of this open frame rack. There are also 4 large knock outs on the top of the frame to install fans, or for added cable pass through.
Pre-Installed Levelers and Casters:
  • Moving a large rack around can sometimes be a hassle, but with the pre-installed casters all you have to do is roll it into place. Once the rack is in place simply adjust the levelers to lift the rack off the casters, securing its location.

Specification

Part Number:
  • 3170-3-001-27
Width:
  • 24"
Depth:
  • 37.72" (36" usable depth)
Height:
  • 54.25"
Weight:
  • 115.00 lbs.
Shipping Dimensions:
  • 32" L x 45" W x 61" H
Color/Finish:
  • Black Finish
UPC:
  • 879447003185
Warranty:
  • 5-Year Limited Warranty
Shipping Method:
  • LTL Freight
