Kendall Howard, 27U LINIER® Server Cabinet - No Doors/No Side Panels - 24" Depth

Reference#: 71405
Item#: KH-3170-3-024-27

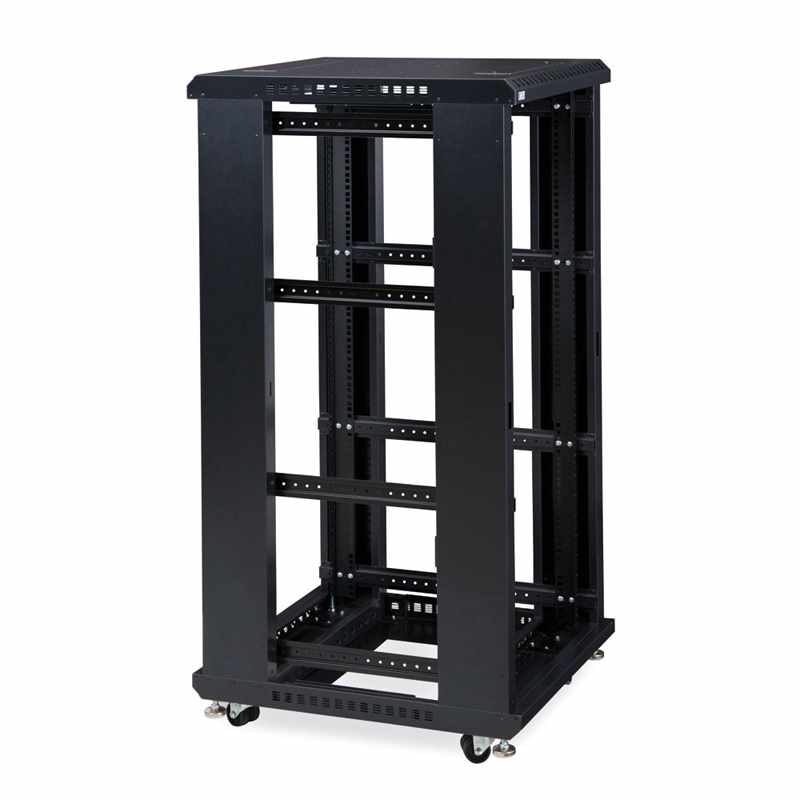

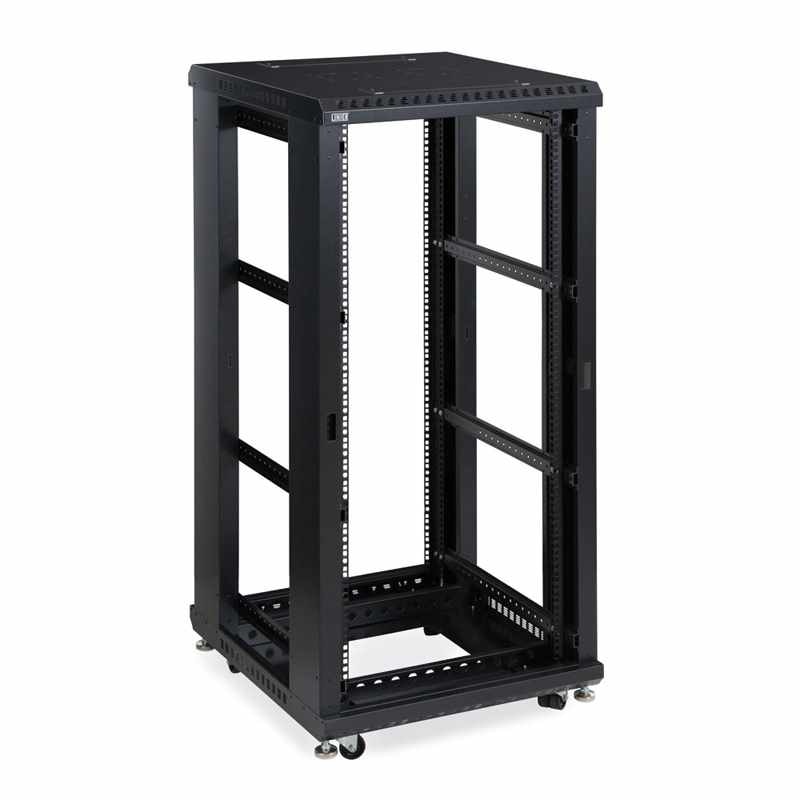

Setting itself apart from the 3100 series, the LINIER® 3170 line is a completely open server cabinet. This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24” depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost, open frame server cabinet, the 3170 LINIER® series is your answer.


Open Frame Design:
  • The open frame design allows for maximum air flow for your network equipment.
Easy Installation:
  • Easters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Adjustable Rails:
  • Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24” for versatile mounting options.


Part Number:
  • 3170-3-024-27
  • 24"
  • 27" (24" usable depth)
  • 54.20"
  • 94.00 lbs.
Shipping Dimensions:
  • 32" L x 45" W x 61" H
  • Black Finish
  • 879447005097
  • 5-Year Limited Warranty
Shipping Method:
  • LTL Freight
  • No doors or side panels
  • 24” depth (Also available with a 36” depth)
  • Other sizes available: 22U, 37U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)

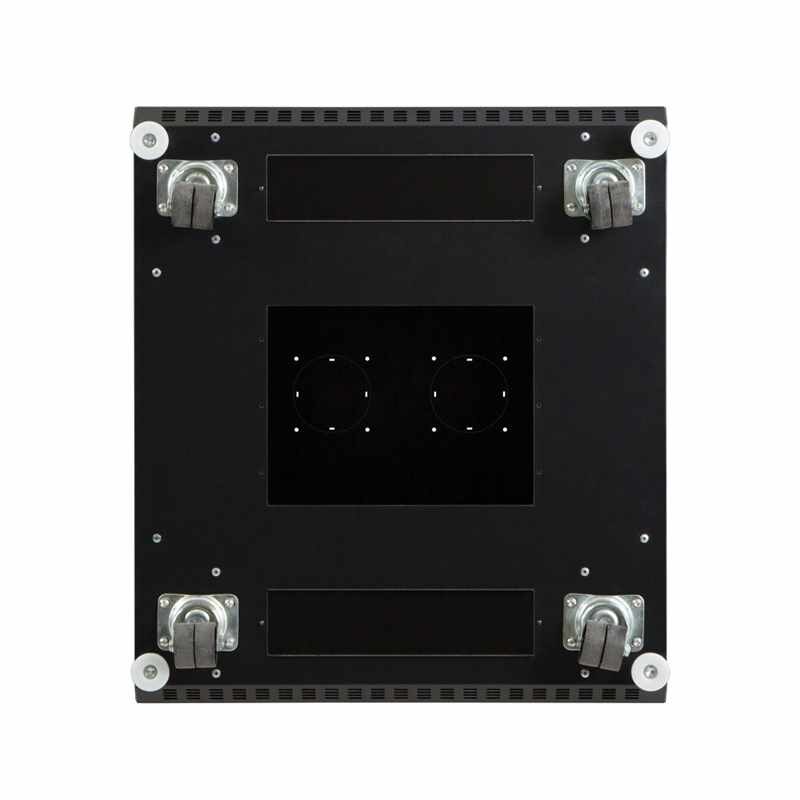

  • Includes preinstalled casters and levelers
  • Includes two sets of adjustable cage nut style mounting rails
  • Top includes removable laser knockouts
  • 19” EIA 310-D compliant
  • Made in the USA
  • 5-Year Limited Warranty
